Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part 2700494 Revision -
Assembly Instructions

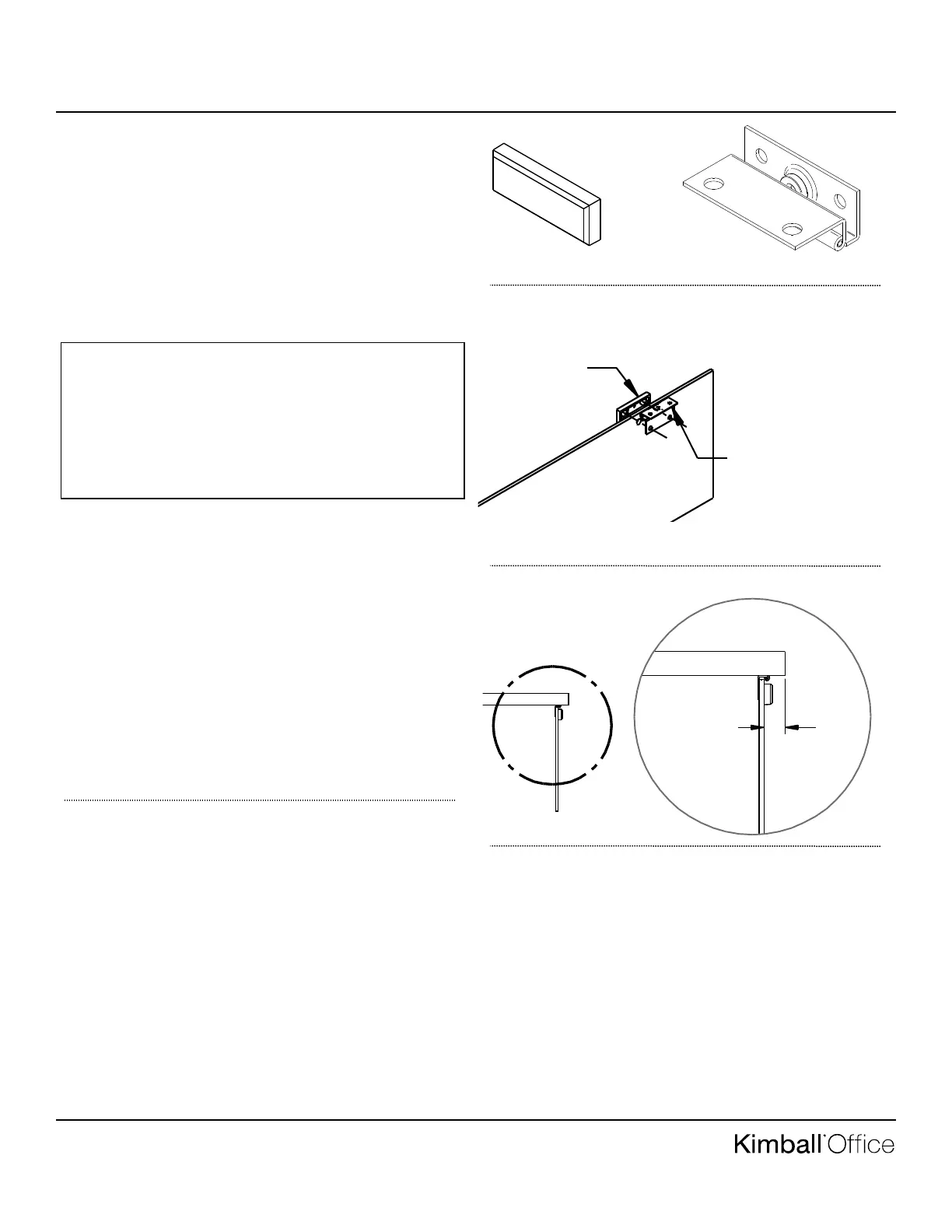

Figure A
Flip/Nest Resin Modesty Panel
to Worksurface Assembly
Tools Required
Hardware Required (Included)
Cordless driver with magnetic post
4mm hex drive
#3 Phillips head bit drive
1. Unpack modesty panel, magnetic hinge, modesty cover
plate, and hardware. See Figure A for package contents.
2. Place modesty cover plate over outside pre-drilled holes of
modesty panel and magnetic hinge over inside holes of the
modesty panel as shown in Figure B. Assemble with 1/4-
20 X 1/2” BHMS using 4mm hex drive.
3. Place the worksurface up side down on a non-marring sur-
face.
4. Using a tape measure, position the modesty panel on the
approach side (non user side) of the worksurface 1” in and
predrill.
5. Assemble with #10 X 1” FBSCR wood screws using #3
Phillips bit drive. as shown in Figure C. Flip the worksur-
face back over onto the bases.
Installation
Modesty Sizes 24”
48”
60”
72”
84”
96”
Magnetic Hinge 2 3 4
Modesty Cover Plate 2 3 4
1/4-20 X 1/2” BHMS 4 6 8
#10 X 1” FBSCR 4 6 8
Figure C
Figure B
Tools Required
To Next Page
