Part 2700494 Revision -
Assembly Instructions
Removable Wood Modesty
Panel to Worksurface Assembly
Tools Required
Cordless driver with magnetic post
#2 Phillips head bit drive
#3 Phillips head bit drive
Hardware Required (Included)
Modesty Sizes 24”
48”
60”
72”
84”
96”
L Bracket 2 3 4
Removable Bracket 2 3 4
1/4-20 THM SCR 2 3 4
1/4-20 X 1/2” BHMS 4 6 8
#10 X 1” FBSCR 4 6 8
Installation
1. Unpack modesty panel, L bracket, removable bracket and
hardware. See Figure A for package contents.
2. Place L bracket over pre-drilled holes and assemble with
#12 X 5/8” wood screws using #2 Phillips head drive as
shown in Figure B.
3. Place the worksurface up side down on a non-marring sur-
face.
4. Using a tape measure, position the modesty panel from the
approach side (non user side) of the worksurface 1” in and
predrill as shown in figure C.
5. Place removable bracket over the L bracket and assemble
worksurface through pre-drilled holes with #10 X 1”
FBSCR using #3 Phillips head bit drive as referenced in
figure B. Flip the worksurface back over onto the bases.

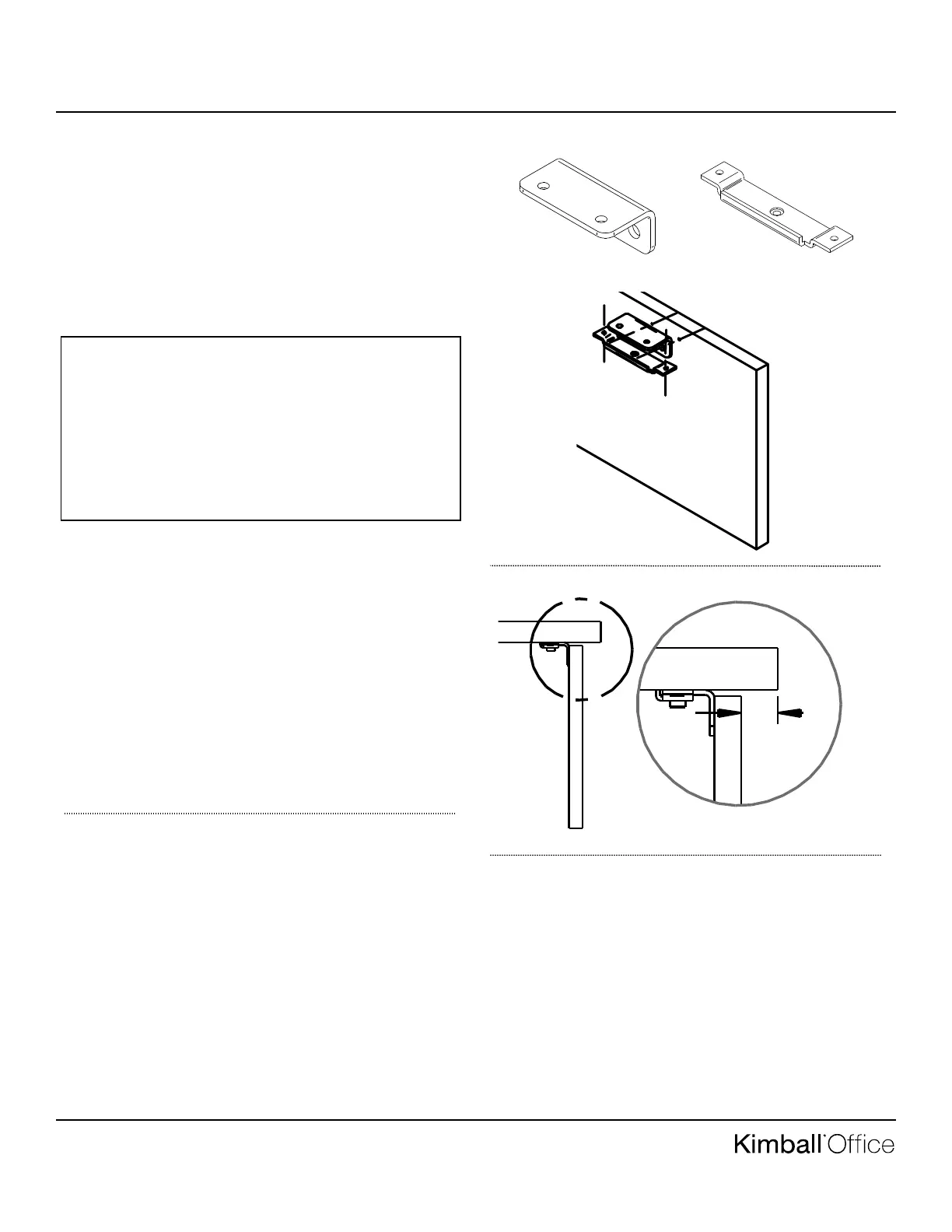

Figure A
Figure B
Figure C
