Kimray PO - 14 Internal Yoke Assembly

To Next Page

To Previous Page

HIGH PRESSURE CONTROL VALVE

Installation, Operation & Maintenance Guide

www.kimray.com

Model: PO, PC

ASSEMBLY

14 Internal Yoke Assembly

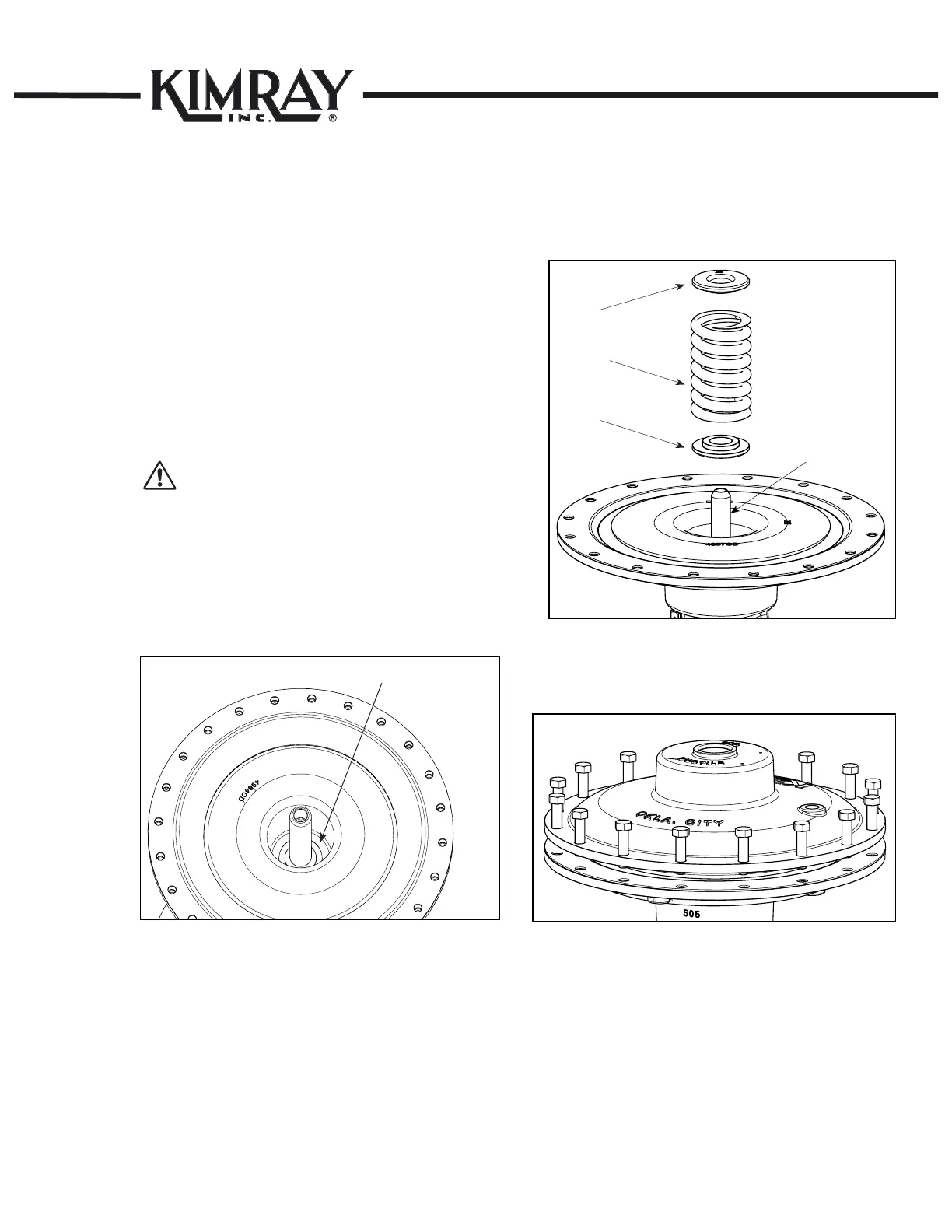

Use a brush to grease the Upper Pivot point.

See Fig. 14-1

Slide the Spring Plate on the Pivot Sleeve.

See Fig. 14-2

Insert the Spring on the Sleeve.

Insert the second Spring Plate on top of the Stem.

Place Bonnet on top of internal assembly and insert

screws. See Fig. 14-3

NOTE:

Make sure you tighten the Bolts in a criss-cross pattern to

avoid any miss alignment. DO NOT OVER TIGHTEN. For

1in. and 2in. tighten Bolts from 25-30 ft/lbs torque.

See Fig. 14-3

Spring

Plate

Spring

Plate

Apply all purpose

grease to the base of

the Pivot Sleeve

Fig. 14-1

Fig. 14-2

Fig. 14-3

Pivot Sleeve
