HIGH PRESSURE CONTROL VALVE

Installation, Operation & Maintenance Guide

www.kimray.com

Model: PO, PC

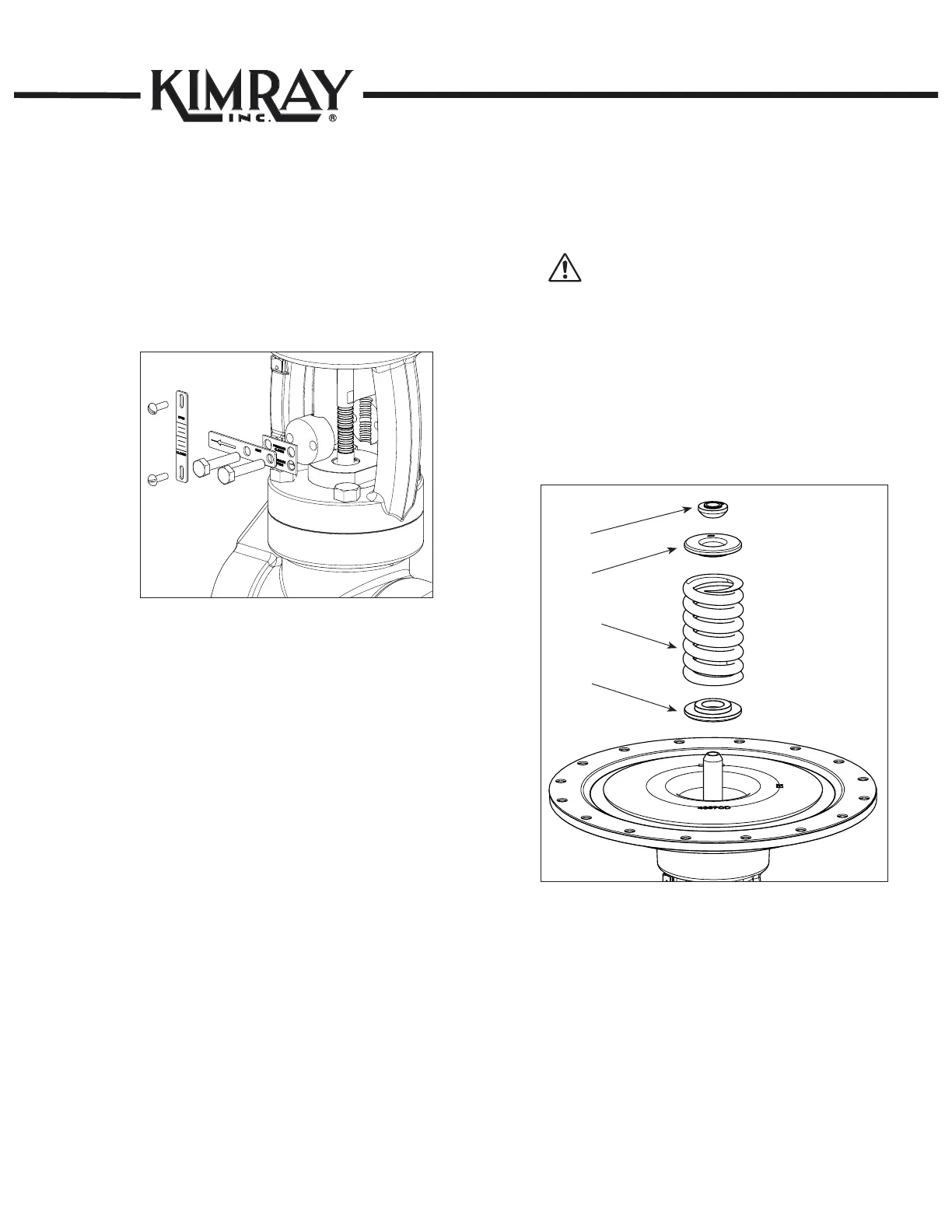

DISASSEMBLY

5 Pivot, Spring Plate, Spring

NOTE:

Again sometimes the Pivot will separate from the

Adjusting Screw and sit on top of the Spring Plate.

Remove Pivot from top of Spring Plate.

Remove Spring Plate.

Remove the spring from the Pivot sleeve. See Fig. 5-1

4 Travel Indicator

Spring

Plate

Spring

Plate

Pivot

Fig. 5-1

Remove the Bolts from the Travel Indicator Block.

Remove the Block from the Stem.

See Fig. 4-1

Fig. 4-1
