Kimray PO - Disassembly; Adjusting Screw, Pivot, Breather Plug, Bonnet

www.kimray.com
HIGH PRESSURE CONTROL VALVE
Installation, Operation & Maintenance Guide
8
Model: PO, PC

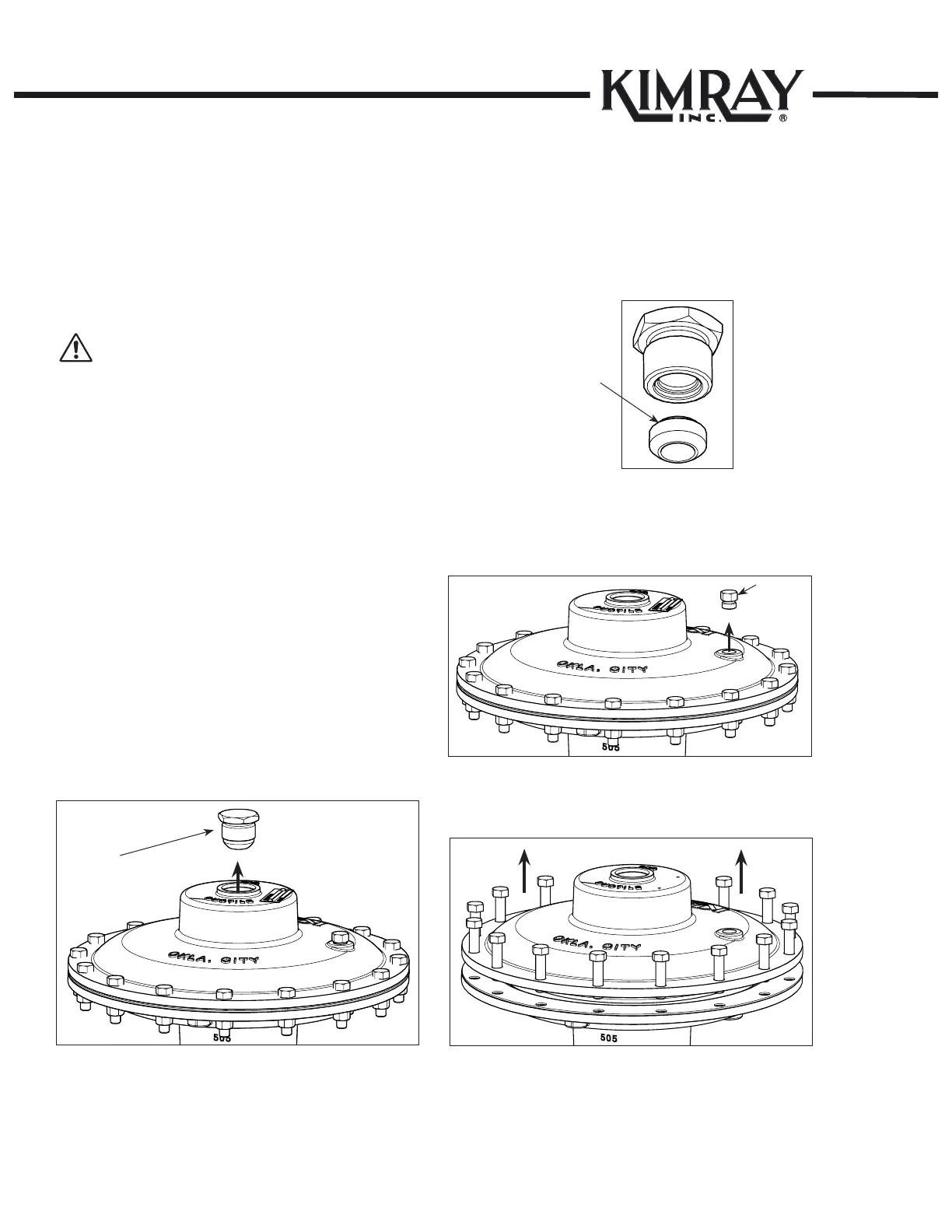

DISASSEMBLY
Use a wrench to remove the Adjusting Screw on top of
the Bonnet. See Fig. 3-1
Remove Pivot from Adjusting Screw. See Fig. 3-2
NOTE:
Sometimes the Pivot will separate from the Adjusting
Screw and sit on top of the Spring Plate.
Remove the Breather Plug from Bonnet. See Fig. 3-3
Loosen the Bolts to remove the Bonnet. See Fig. 3-4
3 Adjusting Screw, Pivot, Breather Plug, Bonnet
Pivot
Adjusting
Screw
Breather
Plug
Fig. 3-1
Fig. 3-2
Fig. 3-3
Fig. 3-4
