Kinco KS123-14DR User Manual

Kinco-KS series
10
2.2.2 Programming port and serial port
KS provides 2 communication ports,PORT0 and PORT1.It supports baud rate up to
115.2kbps.PORT0 can be used as programming port and also supports Modbus RTU slave
protocol and free protocol.PORT1can be used as programming port and also supports Modbus
RTU protocol (as a slave or master) and free protocol.

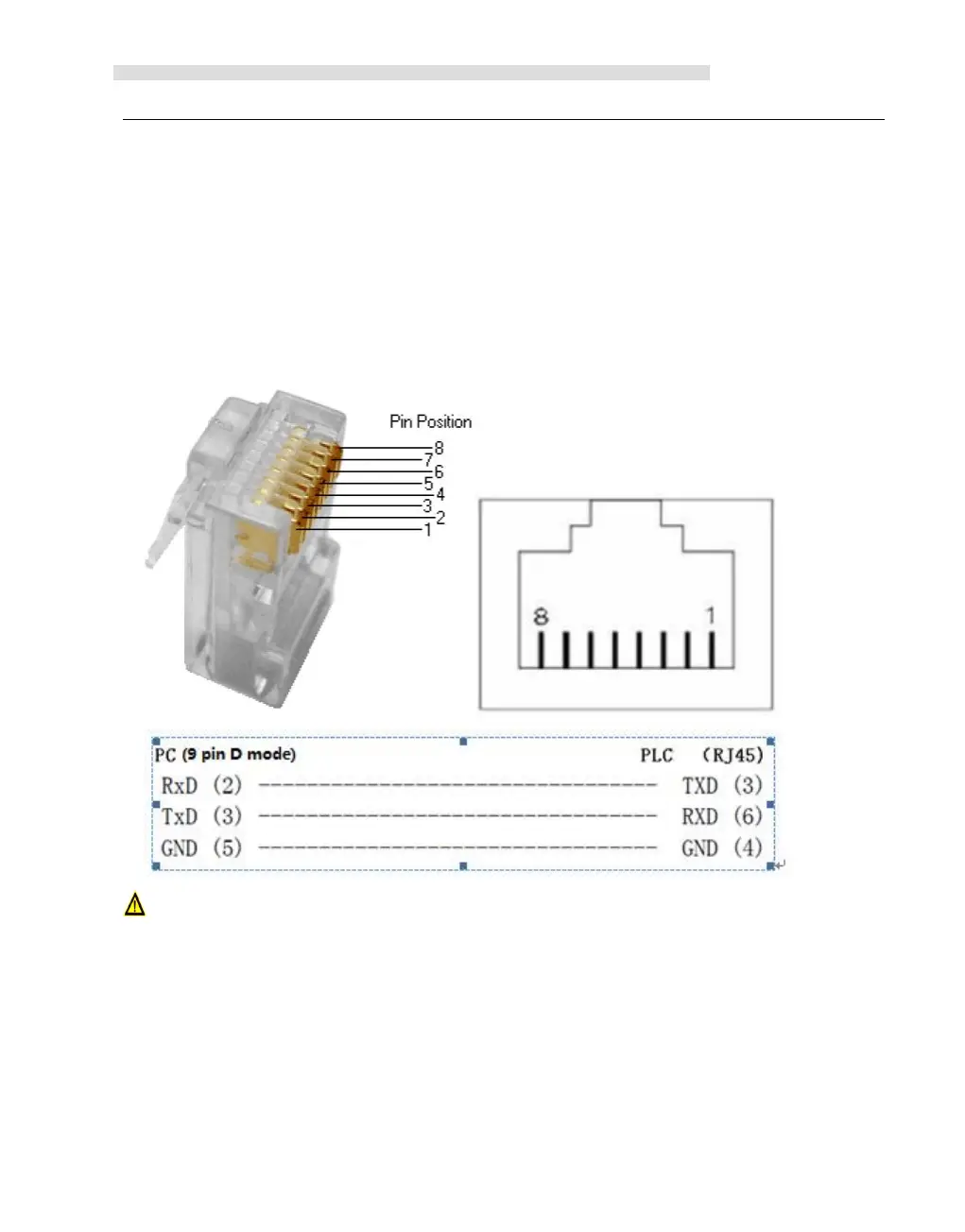

RS232 programming port is in the RJ45 port. Pins and functions as below,
RS232 can’t insert and release with power. So we should turn off power of CPU or PC,
otherwise it will break ports.
2.2.3 CAN port
KS105C1-16DT has 1 CAN port, CAN.It can support CANopen master、slave and free
protocol.

Kinco KS123-14DR Specifications

General

Brand	Kinco
Model	KS123-14DR
Category	Controller
Language	English
