Kind DD+ series - Configuration Mode Details; Jumper Settings Board

Page 13 KIND DD+ models Power Amplifiers
models
DD+
Configuration Mode

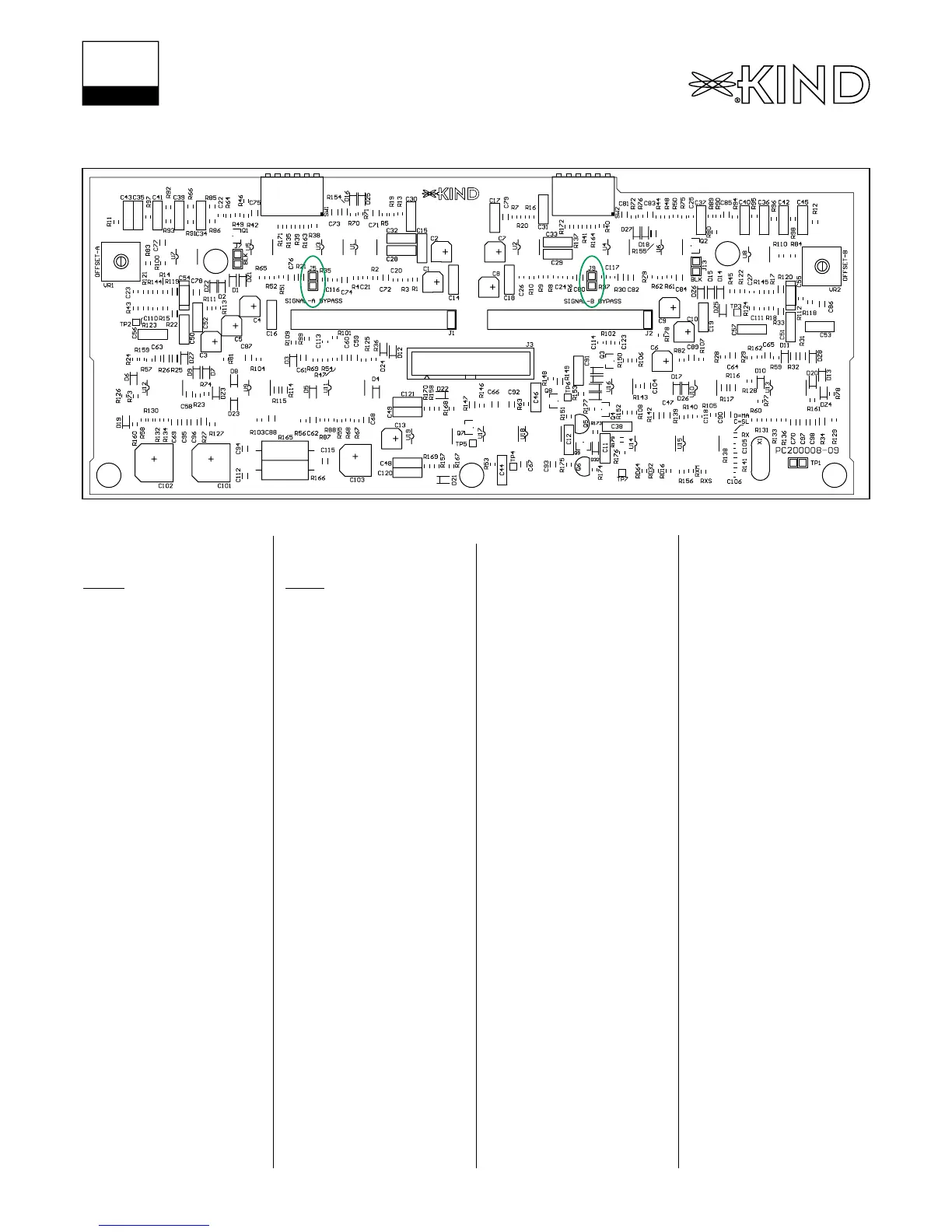

4. JUMPER SETTINGS BOARD
By-pass del Segnale per
Schede Opzionali DSP e
Controllo remoto
VERDE
J5 (Ch A)
J9 (Ch B)
Positione Aperto= Scheda
Presente
Positione Chiuso= Scheda non
Presente
Positione di Default: Chiuso
Signal By-pass for DSP and
Remote control Option
Board
GREEN
J5 (Ch A)
J9 (Ch B)
Position Open= Board Pluged
Position Close= Board Unpluged
Default Position: Close
