Kinder Nevada - Final Coal Positioning and Flame Paths; Correct Coal Positioning for Flame Paths

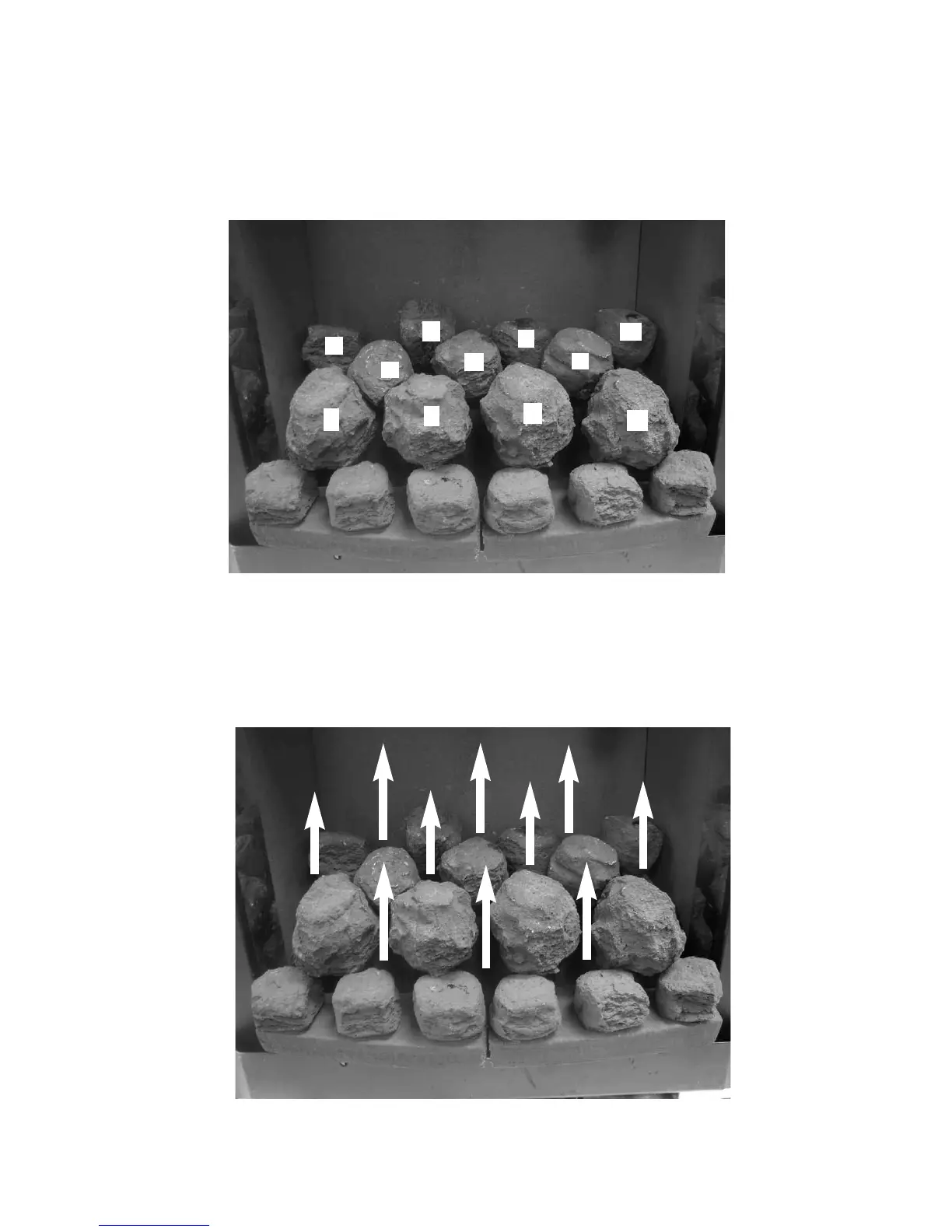

g) Ensure the coals sizes are correctly positioned as shown in Fig 19
below. “L” denotes “large” coals and “S” denotes small coals. If any
coals are missing, please contact your retailer. Do not proceed with
the installation.
Fig. 7
h) Ensure the flame paths are un-interrupted as shown below in Fig. 8. If
necessary, make minor adjustments to the coal positions to ensure
the flame paths indicated by the arrows are available.
Fig. 8
11
L
L
L
L
S
S S
S
S
S
S
