RE-ASSEMBLING THE CERAMICS AND FUEL BED (PEBBLE
MODELS)
a) Place the fuel-bed base centrally on to the fuelbed support and pull
fully forwards to the burner. Make sure that the fuelbed base is
located centrally in the fire box. Ensure that the fuelbed base is
not lodged on the burner. See fig. 9 below.

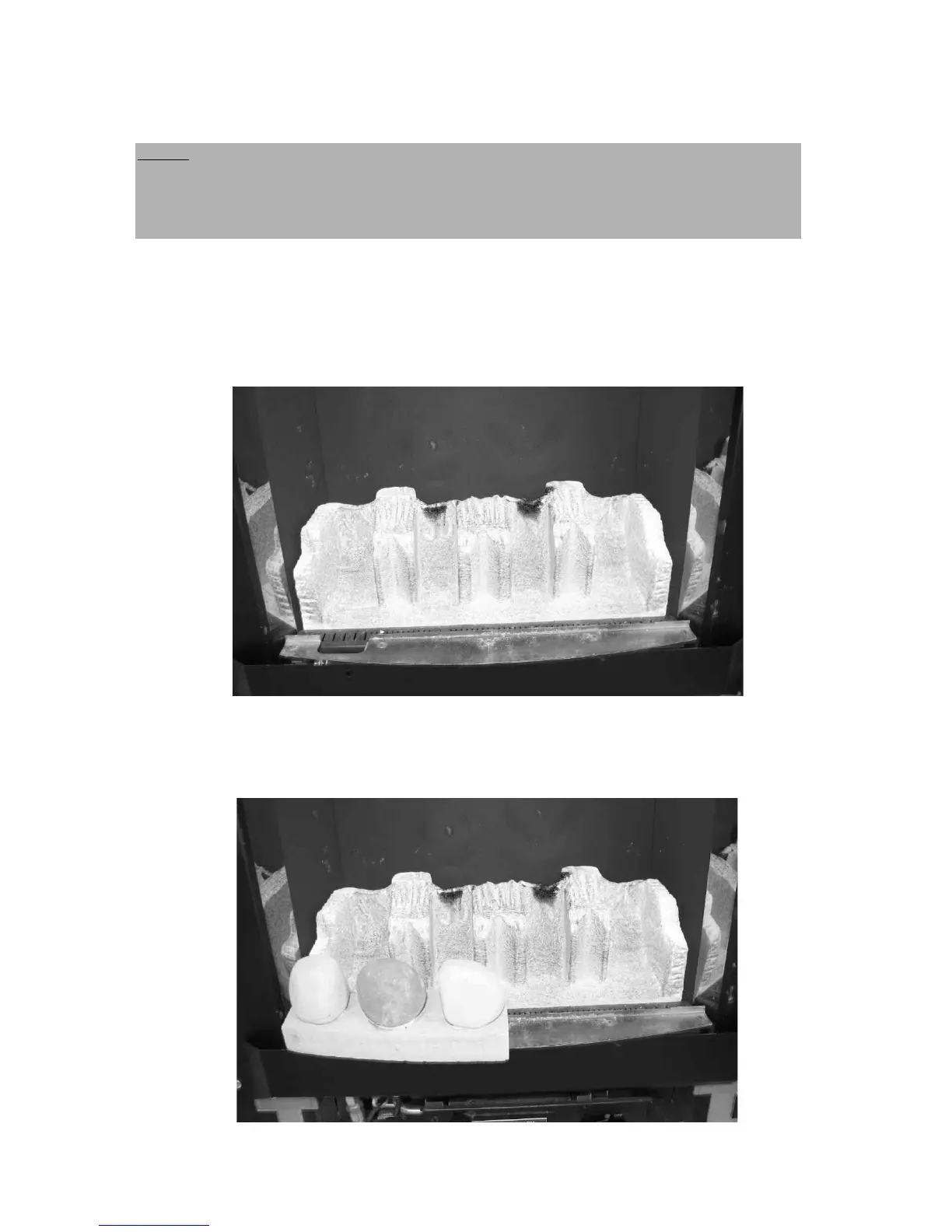

Fig. 9
b) Place the left hand front pebble rail moulding onto the front ceramic rail
support as shown below in Fig. 10
Fig. 10
13
NOTE : The position of the fuel-bed components are critical to the
performance of the product. Therefore please ensure that the fuel-bed
components are positioned as described in the following section prior to
requesting a service call due to soot build up, poor flame pattern etc.
