For all models proceed as follows :-
2.2.1 Remove the top glass retaining cover from the product. It is secured via
the four screws as indicated, 2 off L/H/S and either 1 off or 2 off R/H/S
(dependent upon model). See figure 3 below.

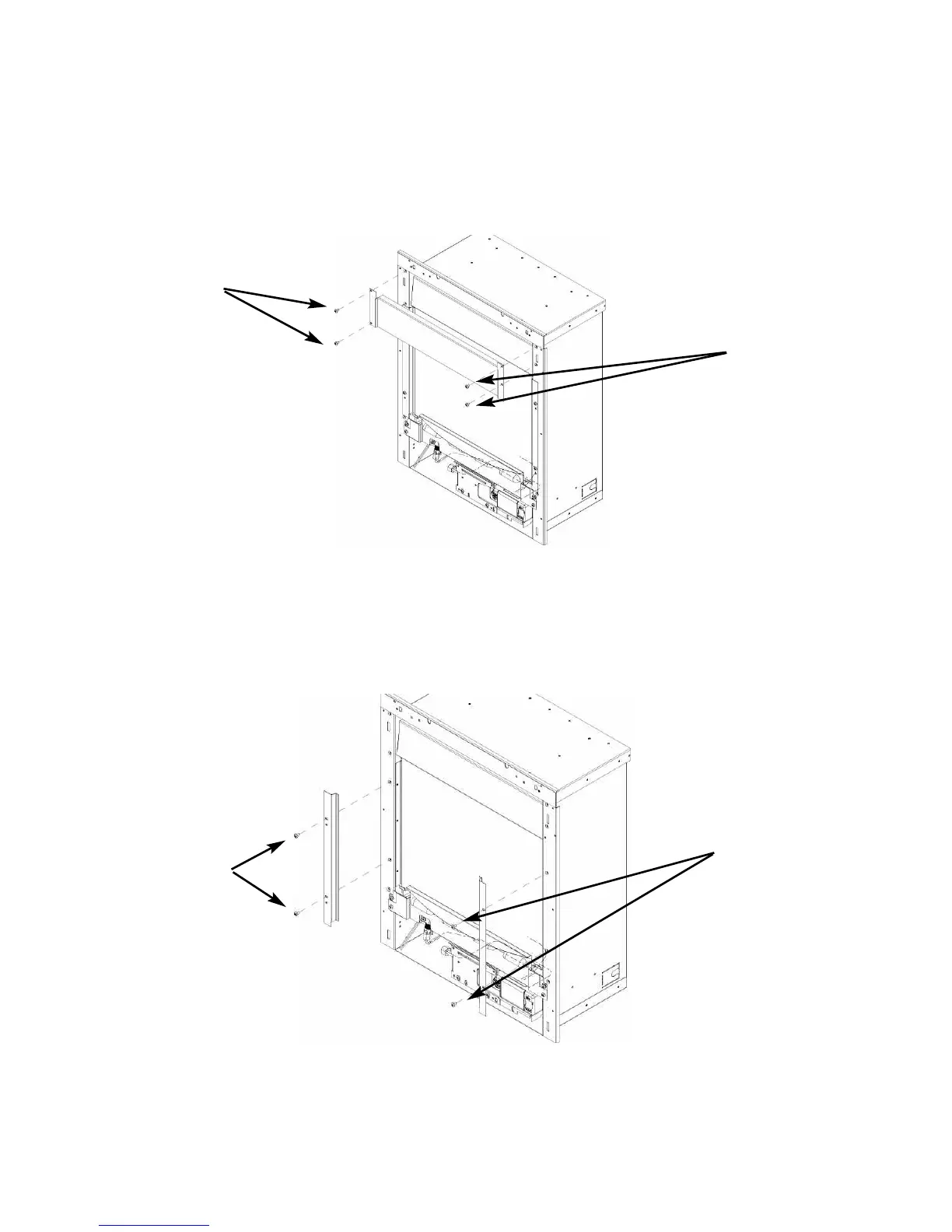

Fig. 3
2.2.2 Remove the left and right hand side glass securing brackets from the
product. They are secured via 2 off screws each side. Support the
glass panel to prevent it falling forwards when the side trims are
removed. See figure 4 below.
Fig. 4
10
2 off securing
screws L/H/S
1 off or 2 off
securing
screw R/H/S
(dependent
upon model)
2 off securing
screws L/H/S
2 off securing
screw R/H/S
To Next Page
