Kinder Oasis HE - Page 11

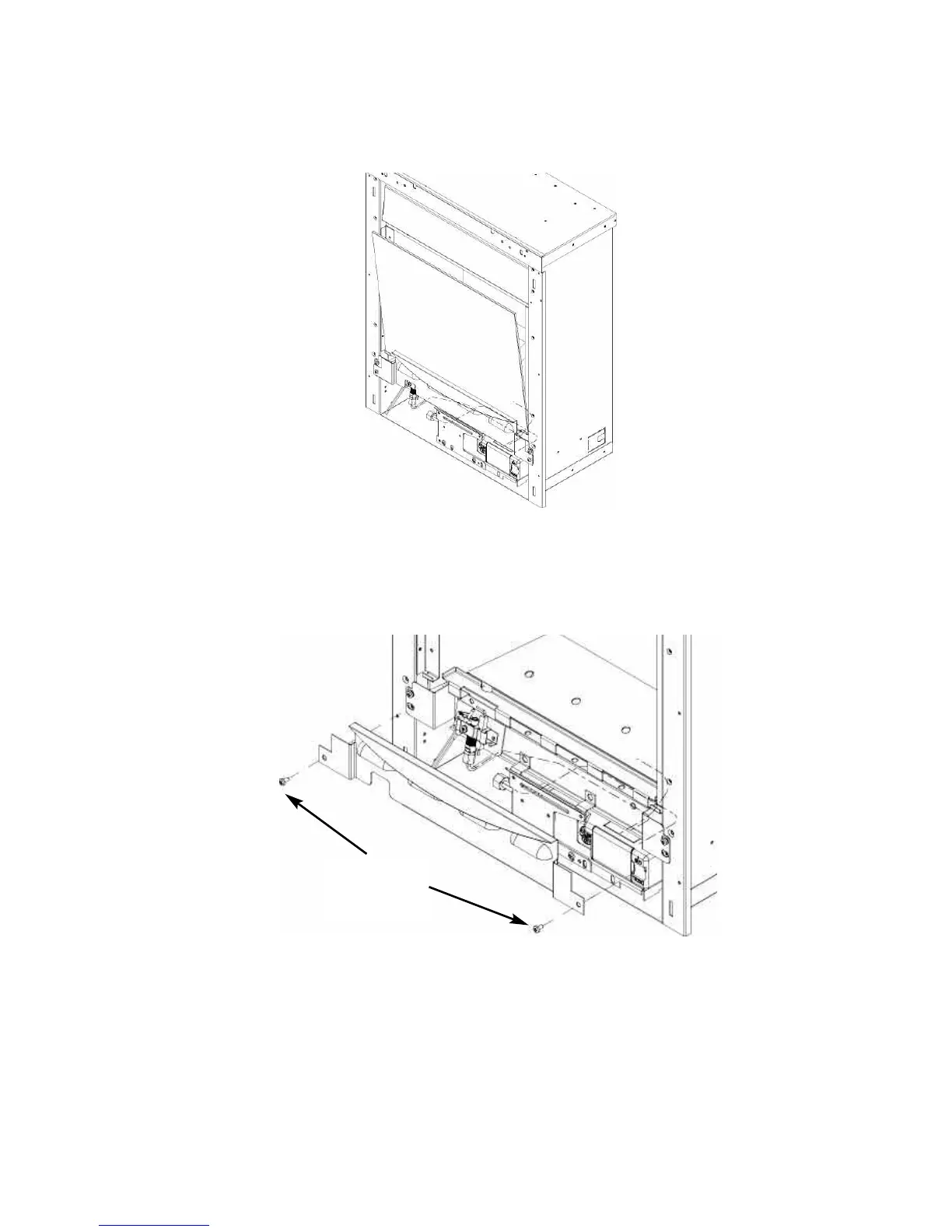

2.2.3 Lift the glass panel forwards and clear from the firebox, taking care not
to damage the glass panel. See figure 5 below.
Fig. 5
2.2.4 Remove the burner heat shield, which is retained by 2 off screws as
shown below in figure 6.
Fig. 6
11
Burner Heat
Shield Retaing
Screws
