Kinder Oasis HE - Page 12

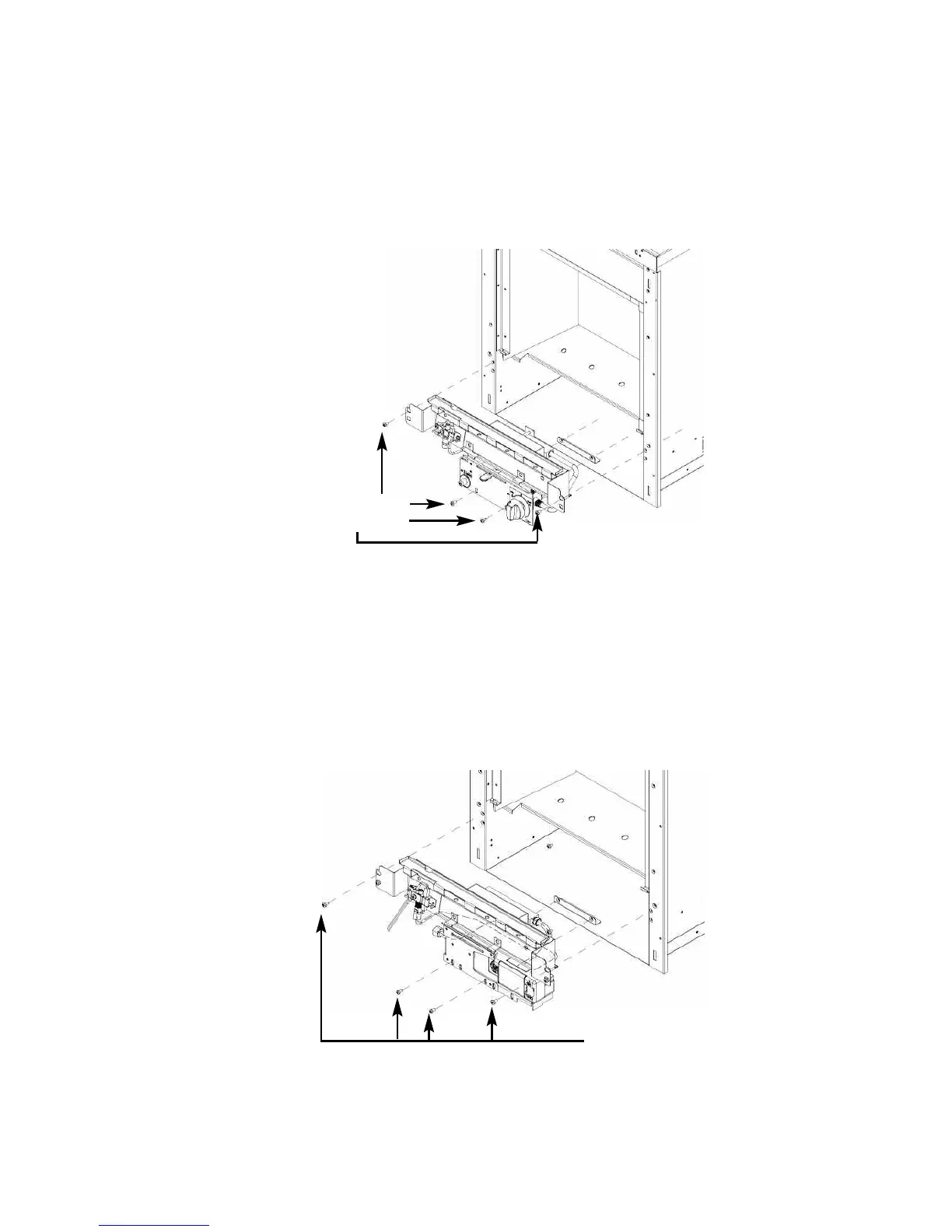

For all Manual Control models proceed as follows :-
2.2.5 Remove the two off screws from the left and right hand burner
mounting brackets, plus the two screws from the base of the control
panel as shown below in figure 7, this will allow removal of the complete
burner unit from the firebox.
Fig. 7
For all Remote Control models proceed as follows :-
2.2.6 Remove the two off screws from the left and right hand burner
mounting brackets, plus the two screws from the base of the control
panel as shown below in figure 8, this will allow removal of the
complete burner unit from the firebox.
Fig. 8
12
4 off burner
retaining screws
4 off burner
retaining screws
