King gates Intro 230 - Page 2

Power supply
Motor power supply
Motor power
Consuption
Capacitor
Working temperature
Protection rating
Working cycle
Dimensions
Automation weight
Wing max dimensions
230 V
230 V
200 W
1,3 A
12,5 nF
-20 ÷ +55 °C
IP67
40 %
340x170x410 mm
10 Kg
2,5 m
230 V
24 V
50 W
2,5 A
-
-20 ÷ +55 °C
IP67
60 %
340x170x410 mm
10 Kg
2,5 m
Intro 230 Intro 24

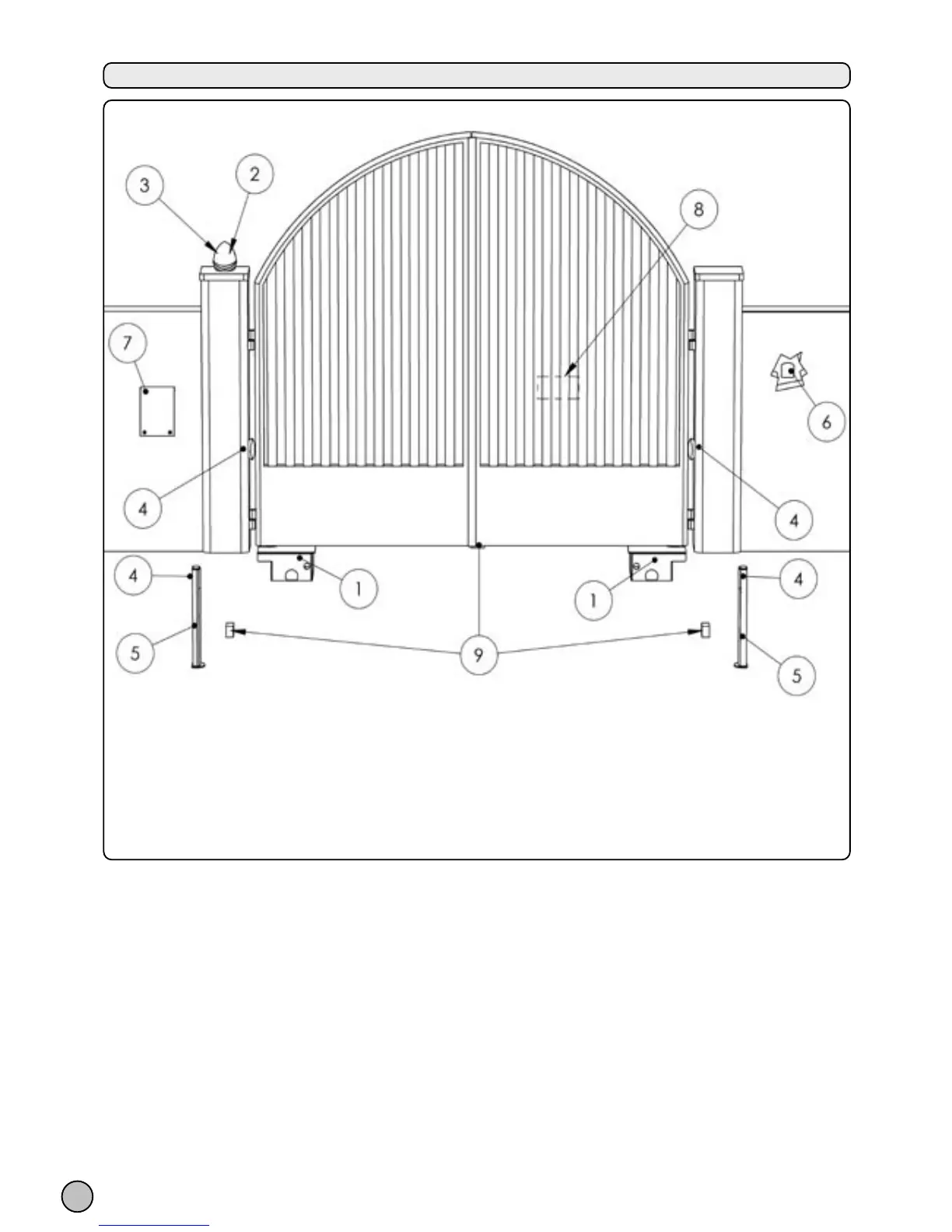

1 - TYPICAL AUTOMATION
2 - TECHNICAL DATA
1- Operators
2- Flashing warning light
3- Antenna
4- Photocell
5- Small columm
6-Key-switch
7-Electronic control unit
8-Warning sign
9-Stop locks
3 - DIMENSIONS
70mm
MINIMUM
DISTANCE 0MM
380mm
150mm
140mm 140mm200mm
150mm
320mm
170mm
55mm
PILLAR
CENTER PIVOT OF
LEVER “L1” MUST
BE THE SAME AS HINGE
LEVER “L1”
LEVER “L1”
2 3
