Read the instructions with care before installing the product. The producer disclaims all
responsibility for any damage or bad functioning caused by non-observance of the
instructions or bad connection that may result in poor safety and functioning of the
gear-motor.

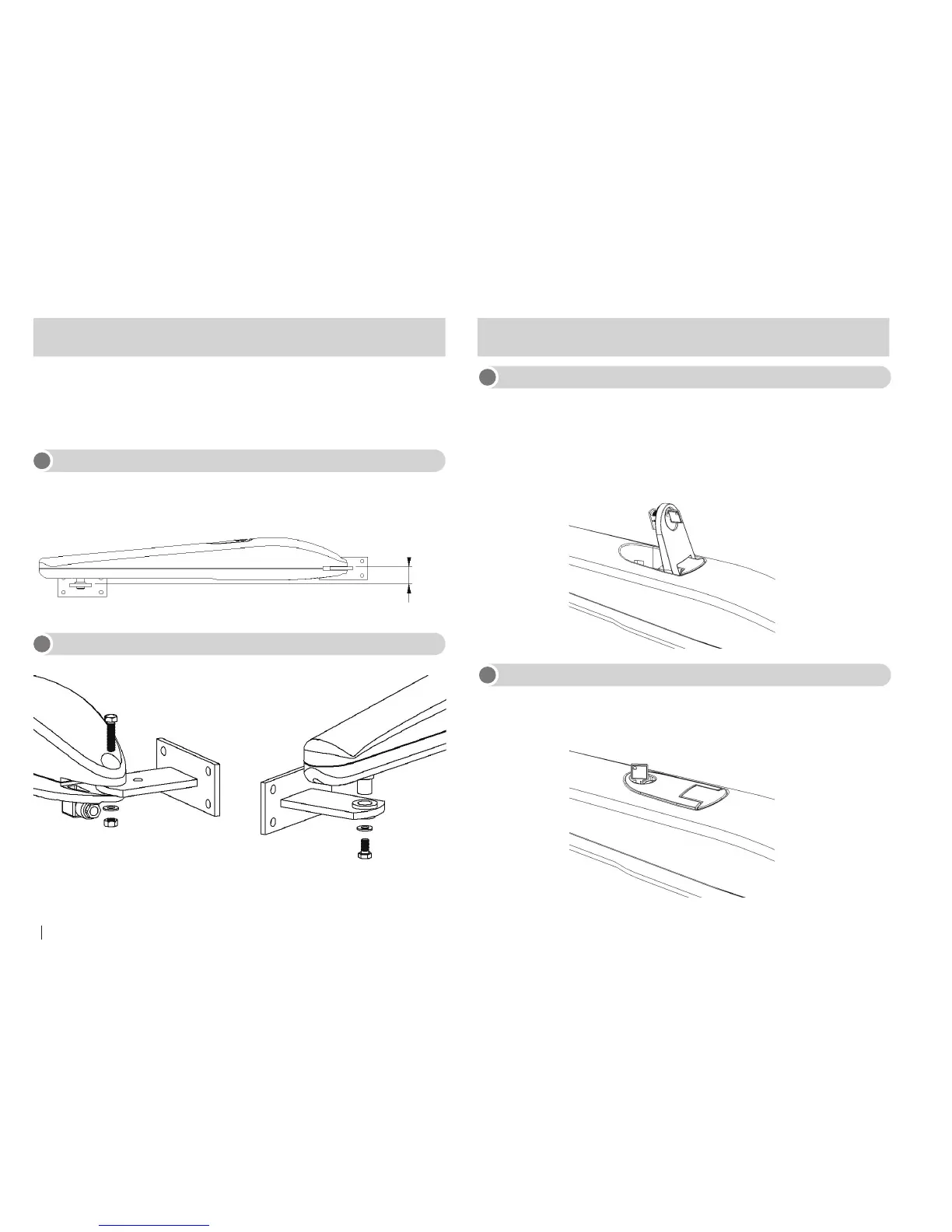

Fix the stirrups allowing 45 mm between the faces in order to fix the gear-motor horizontally.
STIRRUPS HEIGHT
MANUAL CONTROL
INSTALLATION
ATTENTION: before operating the manual release disconnect the power.
Manual control has been thought for manual opening of the gate in case of power-cut or
motor breakdown.
INSTRUCTION (pic. A).
-Operate the manual release moving back the key hole cover.
-Insert the key in the cylinder lock and turn it of 90° clockwise direction.
-Pull the lever till it is perpendicular to the gear-motor.
INSTRUCTION (pic.B)
-Bring back the lever in the original position.
-Inser the key in the cylinder lock and turn it of 90° anticlockwise direction.
RELEASE
RESTORATION
FIXING THE GEAR-MOTOR TO THE STIRRUPS
Fixing the gear-motor to the back
stirrup.
Fixing the gear-motor to the front
stirrup.
Pic.B
Pic.A
45
5
