TO POOL
PUMP
FILTER
TOE NIPPLE
CHECK
VALVE
BUSHING
HOSE
CLAMP
HOSE
ADAPTER
HOSE
CLAMP
HOSE
ADAPTER
1 1/2" X 1 1/2" X 1 1/4"
HOSE ADAPTER
HOSE
CLAMP
FILTER
& PUMP
TO
POOL
1 1/2" OR 1 1/4"
FLEX HOSE
TOOLS NEEDED
Screwdriver
Pipe Wrench
MATERIALS NEEDED
Pipe Thread Tape
or Sealant
Two Hose Adapters
1½” X 1½” X 1¼”
Two Sections of 1½ or 1¼”
Flex Hose (one provided
with lter)
Two
Hose
Clamps
RECOMMENDED
4-8 psi Back Pressure
To avoid over or under
chlorination, replace eyeball
ttings in the return jets to a
smaller or larger size to adjust
back pressure. For best results
use King Technology’s pressure
gauge, order part number
01-22-4000.
Apply pipe thread tape or sealant
to the threaded end of both hose
adapters.
1.

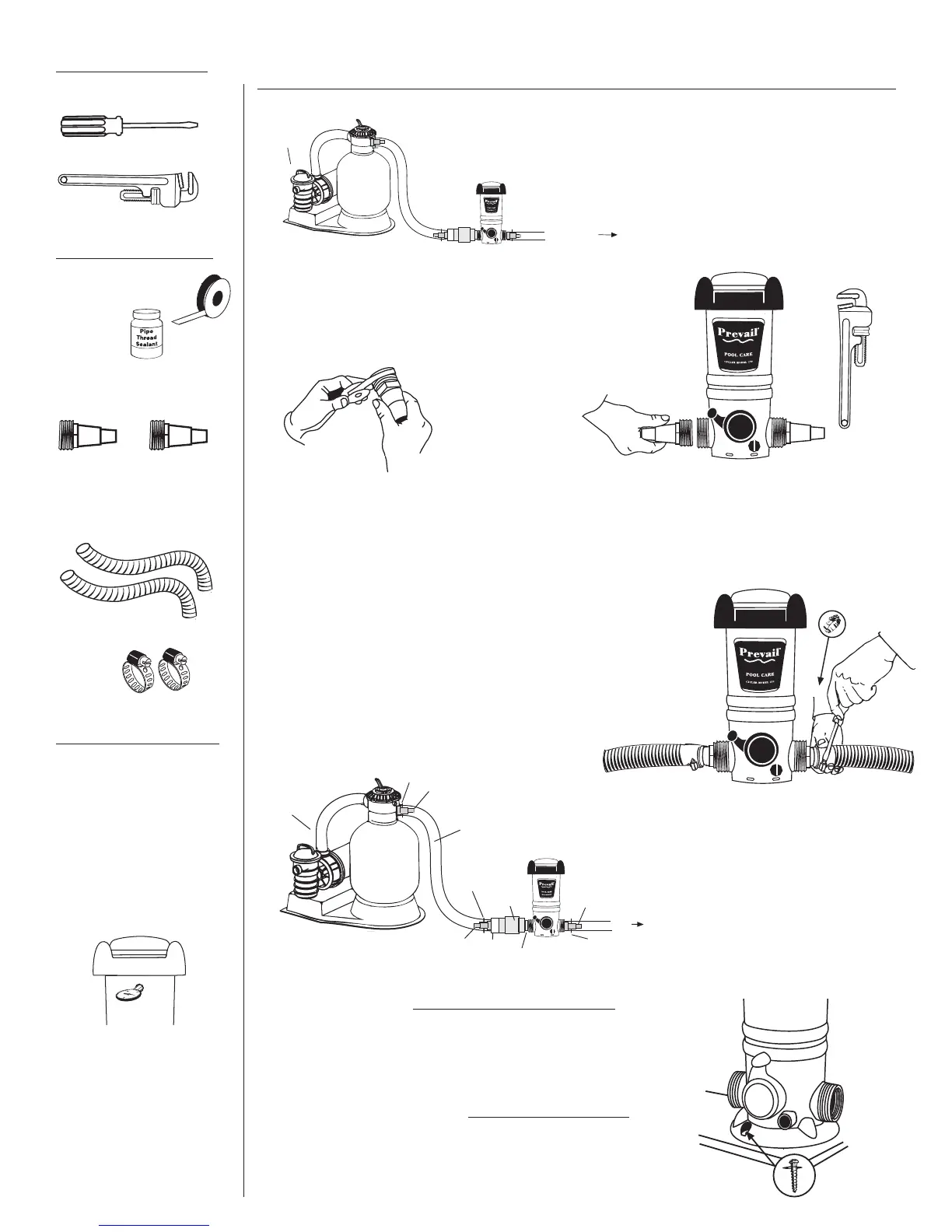

Base Flex-Hose Installation
Screw adapters into each end of Prevail Cycler.
Hand tighten. Finish tightening by turning 1
to 2 revolutions with a pipe wrench. DO NOT
OVER TIGHTEN.
2.
Attach the lter section of ex hose to one hose adapter
and the return section of ex hose to the other hose
adapter with clamps and tighten with screwdriver. Bi-ow
valve design allows water ow in either direction.
3.
To prevent damage to heaters or lters, see your dealer
about installing a corrosion resistant check valve which
will reduce the back ow of chlorine gas when the Cycler
is turned off.
4.
For better stability, Prevail Cycler may be mounted on
a treated wood base using Phillips pan head screws,
one in front and two in back. If you have questions
about stability, please contact your dealer or King
Technology.
5.
The Prevail Cycler should always be
installed between the lter and pool (or
between heater and pool if applicable).
Never install Prevail Cycler before the
heater or damage to the heater could
occur.
