1½” Male Adapter
(slip x MPT)
or
2” Female
Adapter
(slip x FPT)

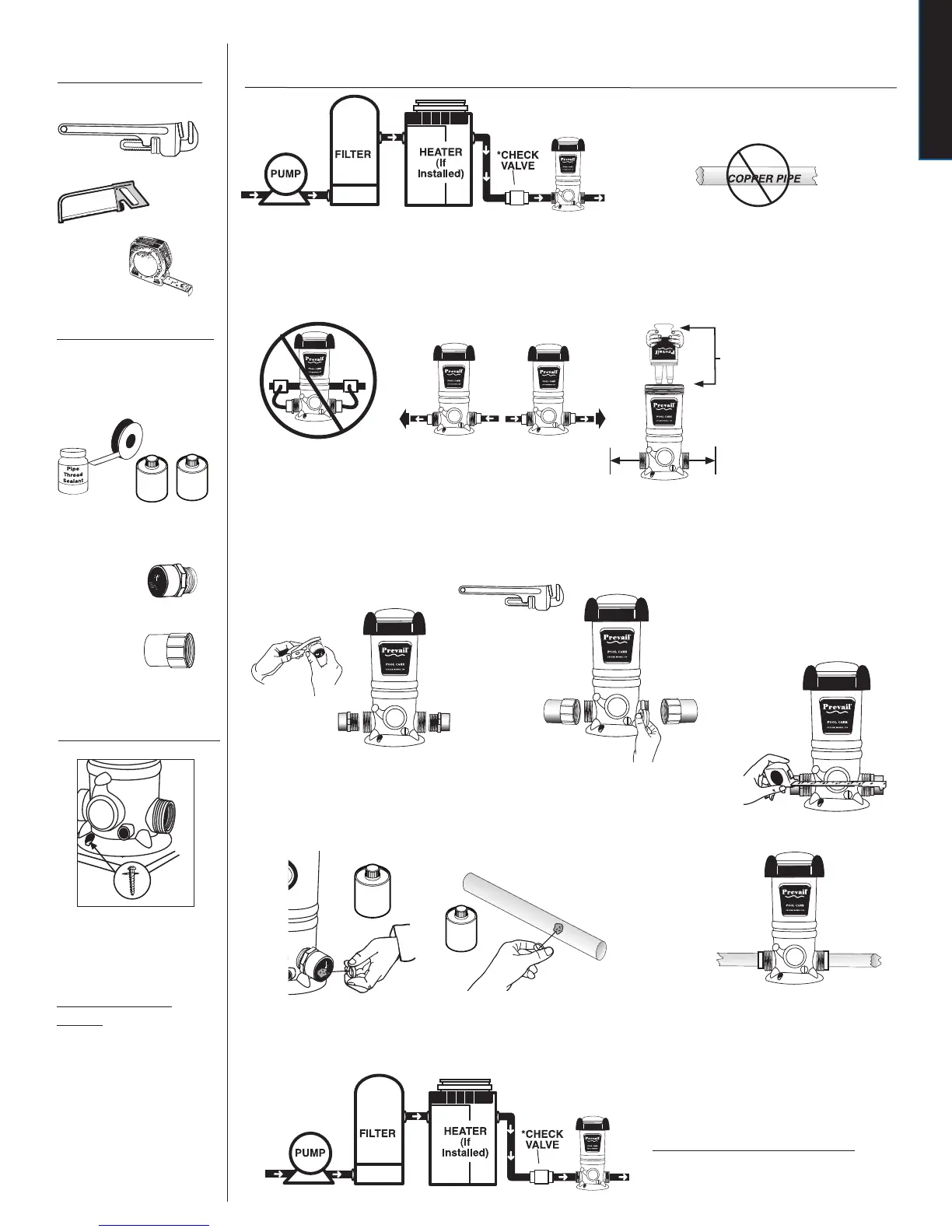

Hard-Plumbed Installation
Do NOT install Prevail
Cycler off-line.
Following primer directions, brush primer on the inside of the
adapters and to ends of pipe. Repeat this process with PVC
cement following directions on that product.
Measure the
distance between
the outside
adapters and cut
out a section of
pipe 3” less than
that dimension.
Allow a minimum of
12” above and on
each side of Prevail
Cycler to ensure room
for replacement of
Prevail Pool Pack.
Insert PVC pipe into adapters with
a twisting action. Hold in place 5 to
10 seconds to bond.
TOOLS NEEDED
Hacksaw
MATERIALS NEEDED
Tape
Measure
SECURE CYCLER
To prevent damage to heaters or lters,
see your dealer about installing a
corrosion resistant check valve which
will reduce the back ow of chlorine gas
when the Cycler is turned off.
2.
1a.
1.
1b.
3.
Pipe Wrench
Bi-ow valve design allows
installation in either ow
direction.
Pipe Thread Tape
or Sealant and Primer
and PVC Cement
If using male adapters, apply
pipe thread tape or sealant to the
threaded end of each adapter.
Screw adapters into each end of Prevail Cycler following directions
for a male adapter or a female adapter. Hand tighten. Finish
tightening by turning 1 to 2 revolutions with a pipe wrench.
DO NOT OVER TIGHTEN.
4.
5.
The Prevail Cycler should always be installed between the
lter and pool (or between heater and pool if applicable).
Never install Prevail Cycler before the heater or damage
to the heater could occur.
P
r
i
m
e
r
For better stability,
Prevail Cycler may be
mounted on a treated
wood base using
Phillips pan head
screws, one in front
and two in back. If you
have questions about
stability, please contact
your dealer or King
Technology.
P
r
i
m
e
r
P
V
C
C
e
m
e
n
t
P
V
C
C
e
m
e
n
t
12"
12"
12"
If using female adapters, apply
pipe thread tape or sealant to the
threaded end of each Cycler port.
OR
Do NOT install in copper pipe as
chemical corrosion may lead to pipe
failure.
Install
To Next Page
