Break the pre-cut top and vertically connect the
smoke pipes until the top of the stove. It is strictly
necessary that the smoke pipes wouldn’t be in
contact with pellet tank, ensuring the correct passage
of air between smoke pipes and pellet tank.
Once the tube is positioned, x it with the xing
plates.
The stove is supplied with the horizontal smoke
exit connection in the back side.
In this case, it is necessary to install a “T” joint.

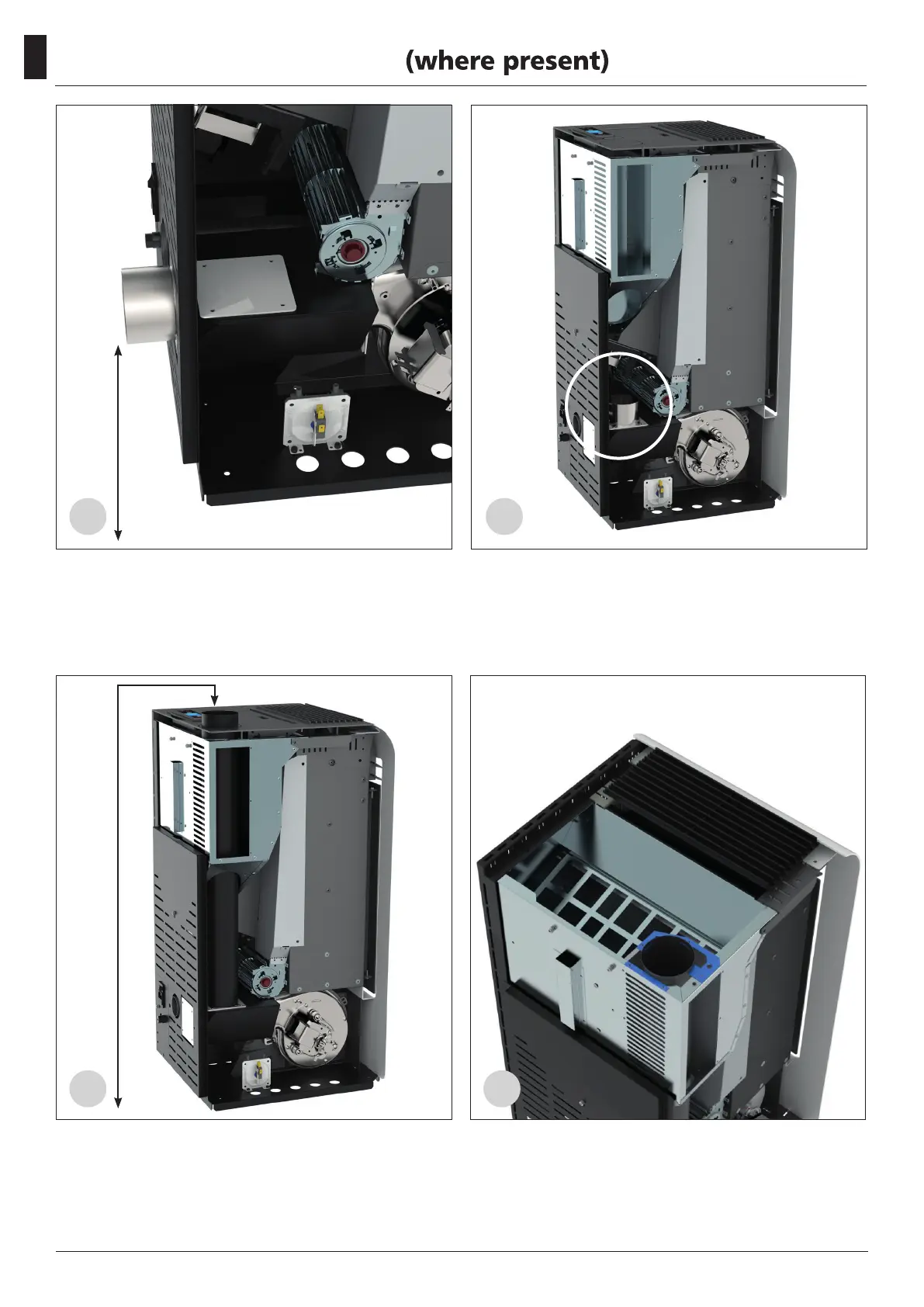

Vertical pipe installation
It is possible to move the smoke exit upwards.
In this case, the horizontal exit must be closed and
the smoke pipes will be directed vertically until the
top. it is not necessary to install the “T” joint.
