8.10 DO-6 Relay Board (TEL REL 002) Wiring Diagram
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
CH 9
CH 10
CH 11
CH 12
CH 13
CH 14
CH 15
CH 16
NO - Normally open contact
C - Common
NC - Normally closed contact
External Power Supply.
Note: polarity can be reversed.
NO
C +
Wiring Example
When the output
channel is set ON,
the load is energised

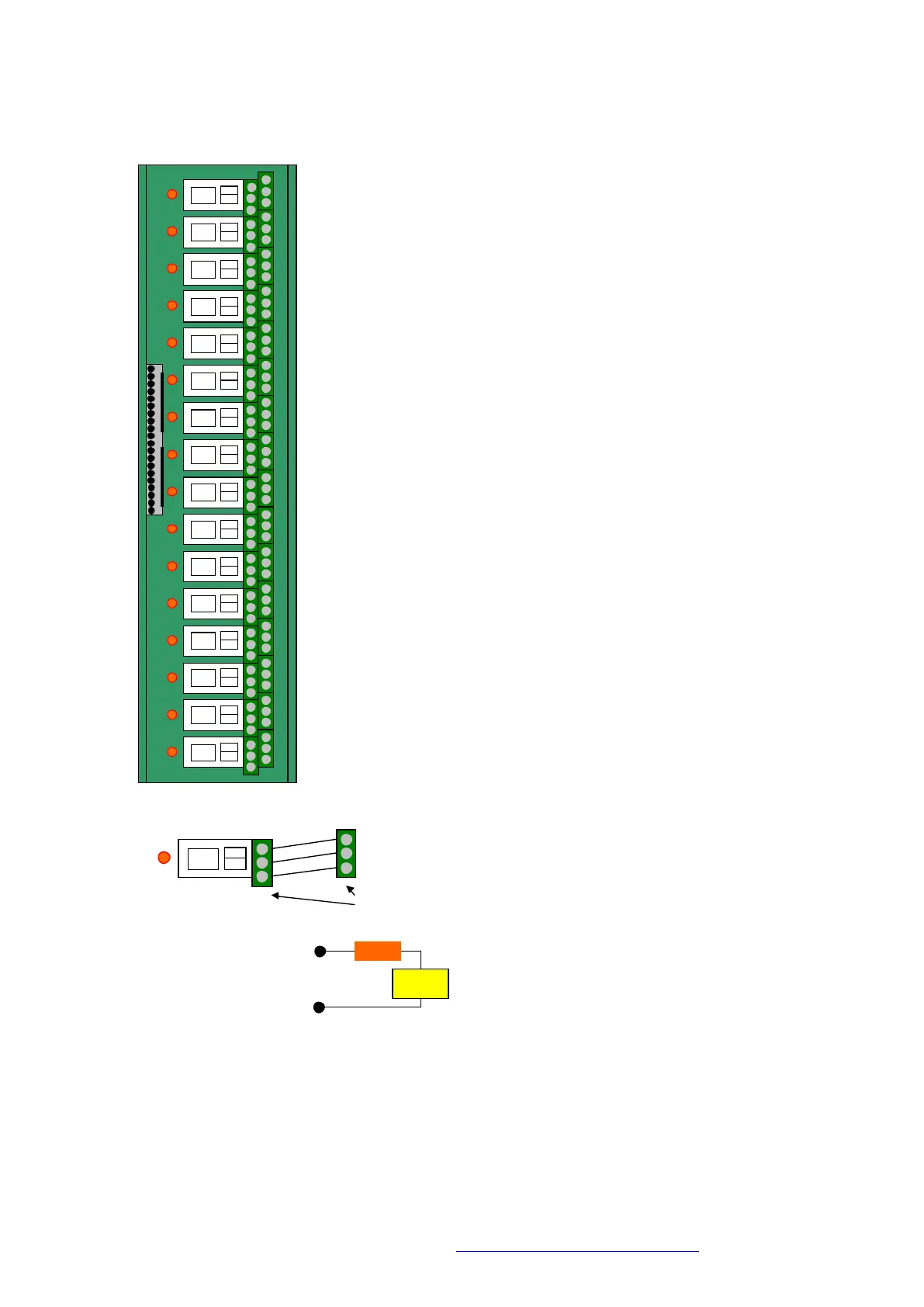

Terminal Layout For Each DO-5 Channel
Each channel has 3 relay contacts (NO,C,NC) connected
to two 3-way terminal blocks
LOAD
POWER
SUPPLY
