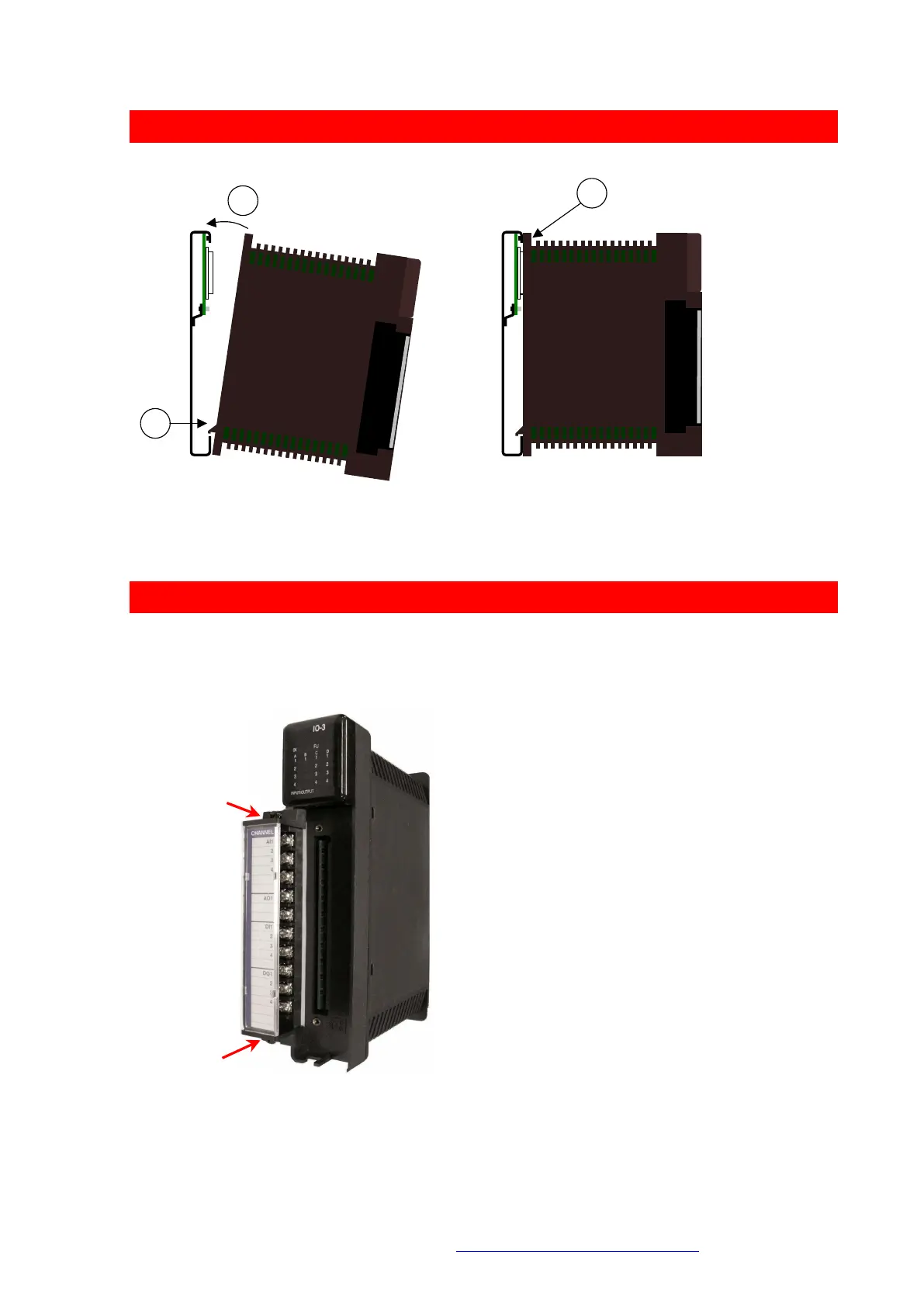

2. Installing Modules
1
2
3
Fasten screw to lock module
onto backplane
Press into socket
Hook mounting tab onto
backplane slot
3. Removable I/O Connector
Each I/O module has a removable I/O connector. This allows the I/O module to be swapped without
having to detach the field wiring from the I/O connector. The I/O connector is secured to the module
using two fastening screws as shown below.
I/O Connector
Fastening
Screw
I/O Connector
Fastening
Screw
