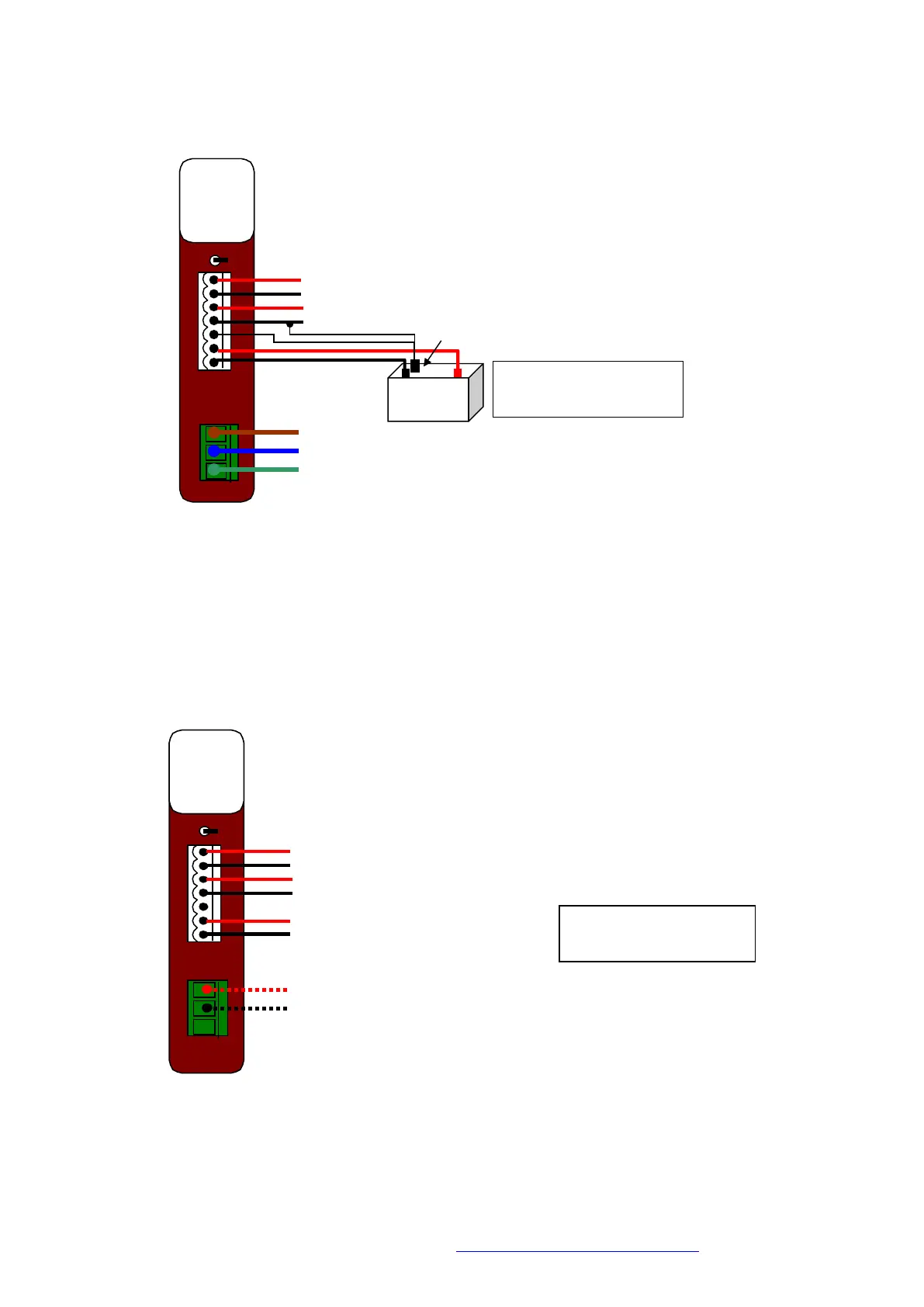

8.14 PS-11 Wiring Diagram - AC Supply
PS-11
OFF
TEMPERATURE SENSOR
#
+
#
TAPE OR CABLE TIE TEMPERATURE SENSOR TO NEGATIVE BATTERY TERMINAL (OR
AS CLOSE AS POSSIBLE). CONNECT BLACK STRIPED WIRE OF SENSOR TO R- OR B-
VA+
VA-
R+
R-
TS
B+
B-
CAUTION! Connecting the
battery in reverse may cause
damage to the power supply.
-
+
24 VDC AUXILIARY OUTPUT (OPTIONAL)
13.8 VDC OUTPUT (FOR RADIO OR OTHER DEVICE)
-
-
+
BACKUP
BATTERY
GREY WITH BLACK STRIPE
A
N
E
ACTIVE (+)
NEUTRAL (-)
EARTH
100-240 VAC
96-340 VDC
8.15 PS-11 Wiring Diagram - DC Supply
A low voltage DC supply can be fitted to the battery input terminals or a higher voltage DC supply can
be fitted to the AC input circuit.
+
PS-11
OFF
A
N
E
24 VDC AUXILIARY OUTPUT (OPTIONAL)
13.8 VDC OUTPUT (FOR RADIO OR OTHER DEVICE)
+
VA+
VA-
R+
R-
TS
B+
B-
CAUTION! Connecting the
DC Supply in reverse may
cause damage to the PS-11.
-
-
-
+
12 VDC SUPPLY (NOMINAL)
(MUST BE ISOLA TED FROM FIELD SUPPLY )
+
-
96 TO 340 VDC SUPPLY
(ALTERNATIVE TO USING BATTERY TERMINALS)
