10-16 CK25/30/35
(1) Vent Cap (2) Battery
ADJUSTING BRAKE PEDAL
1. Release the parking brake
2. Slightly depress the pedals and mea-
sure the free travel at the top of the
pedal stroke.
3. When adjustments are needed,
loosen the locking nut and turn the
turnbuckle until the rod length is at
the desired and acceptable limit.
4. Re-tighten the lock nuts.

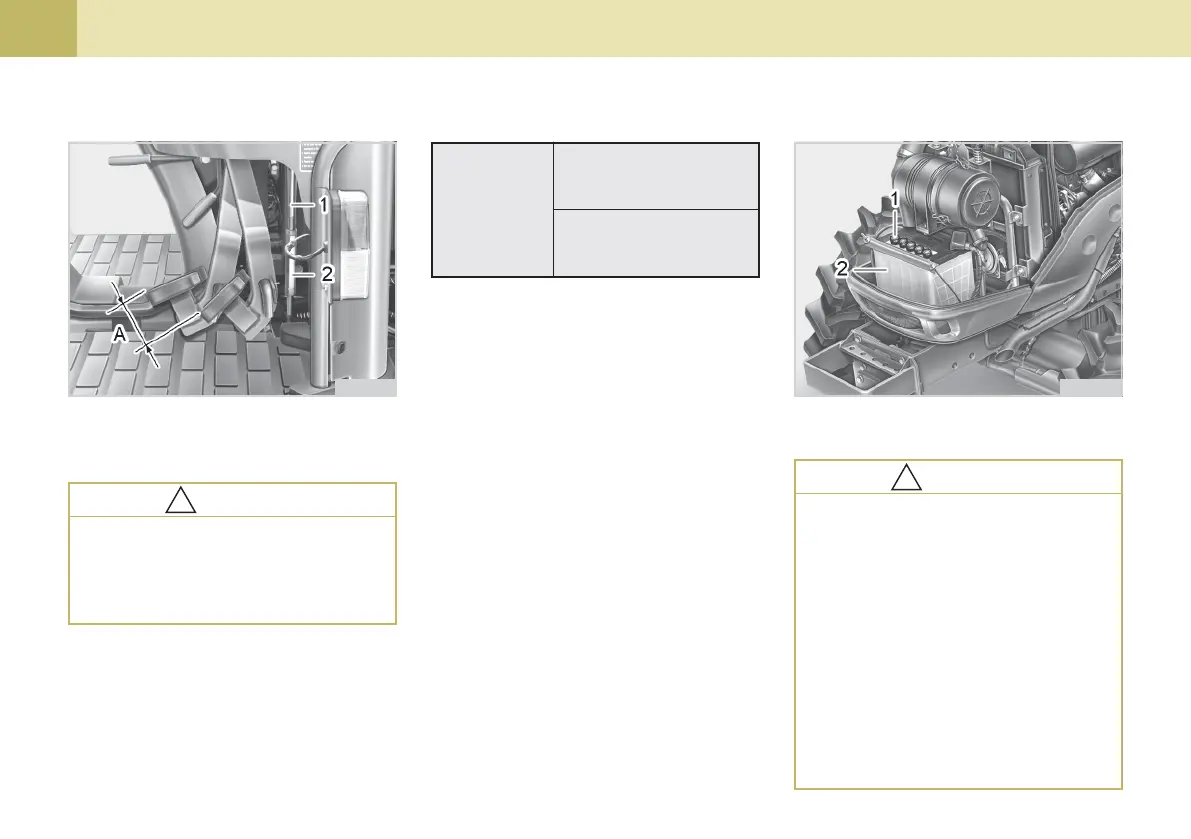

(1) Brake Rod (2) Turnbuckle
(A) Free Travel
To avoid personal injury:
zz
zz
z
Stop the engine and chock the
wheels before checking brake
pedal.
704OA31C704OA30C
!!
!!
!
CAUTION
Proper
brake pedal
free travel
(A)
20 ~ 30 mm
(0.787 ~ 0.181 in.)
on the pedal.
Keep the free travel in
the right and left brake
pedals equal.
To avoid personal injury:
zz
zz
z
Never remove the vent caps
while the engine is running.
zz
zz
z
Keep electrolyte away from
eyes, hands and clothes. If you
are spattered with it, wash it
away completely with water
immediately and call your local
poison information center.
zz
zz
z
Wear eye protection and rubber
gloves when working around
the battery.
!!
!!
!
CAUTION
BATTERY
