10-20 CK25/30/35

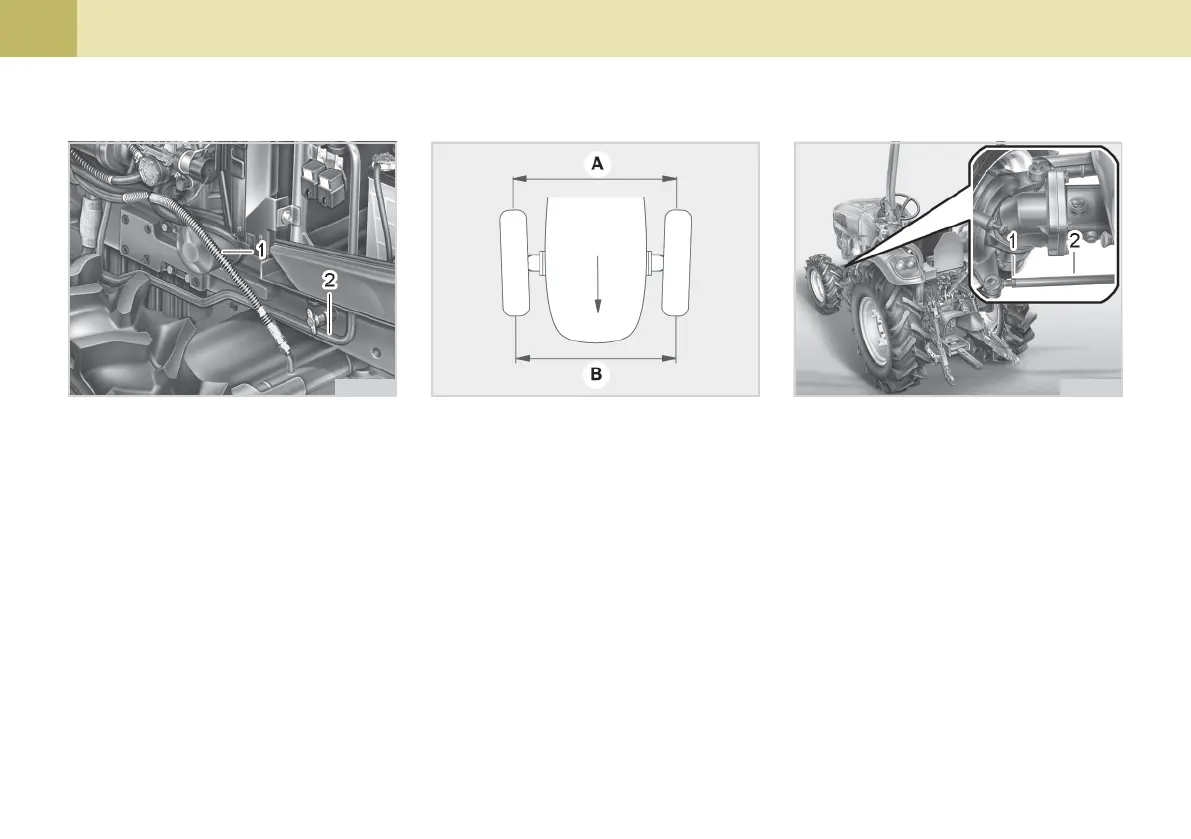

(A) Wheel - to - wheel distance at rear
(B) Wheel - to - wheel distance at front
ADJUSTING TOE-IN
(1) Lock Nuts (2) Tie Rod
ADJUSTING PROCEDURE
1. Loosen the lock nut and turn the turn-
buckle to adjust the rod length until
the proper toe-in measurement is
obtained.
2. Retighten the lock nut.
1. Park tractor on a flat place.
2. Turn steering wheel so front wheels
are in the straight ahead position.
3. Lower the implement, lock the park-
ing brake and stop the engine.
4. Measure distance between tire beads
(center) at front of tire, hub height.
5. Measure distance between tire beads
at rear of tire, hub height.
6. Front distance should be 2 ~ 8 mm
(0.079 ~ 0.315 in.) less than rear
distance. If not, adjust tie rod length.
704OA36A 704OA37A
(1) Power Steering Line
(2) HST Oil Line
CHECKING HST OIL LINE &
POWER STEERING LINE
1. Check to see that all hydraulic lines
and hose clamps are tight and
undamaged.
2. If damage is found, replace the hose
or clamp at once.
704OA35A
