6-5 THREE-POINT HITCH & DRAWBAR
WARNING
!!
!!
!
zz
zz
z Use caution when adjusting the
telescopic sway bar. Heavy
implement can move causing
harm.
TELESCOPIC SWAY BARS
Telescopic sway bars are used to ad-
just the side sway that your implement
has while in use. They are also used to
center the implement on the rear of the
tractor.

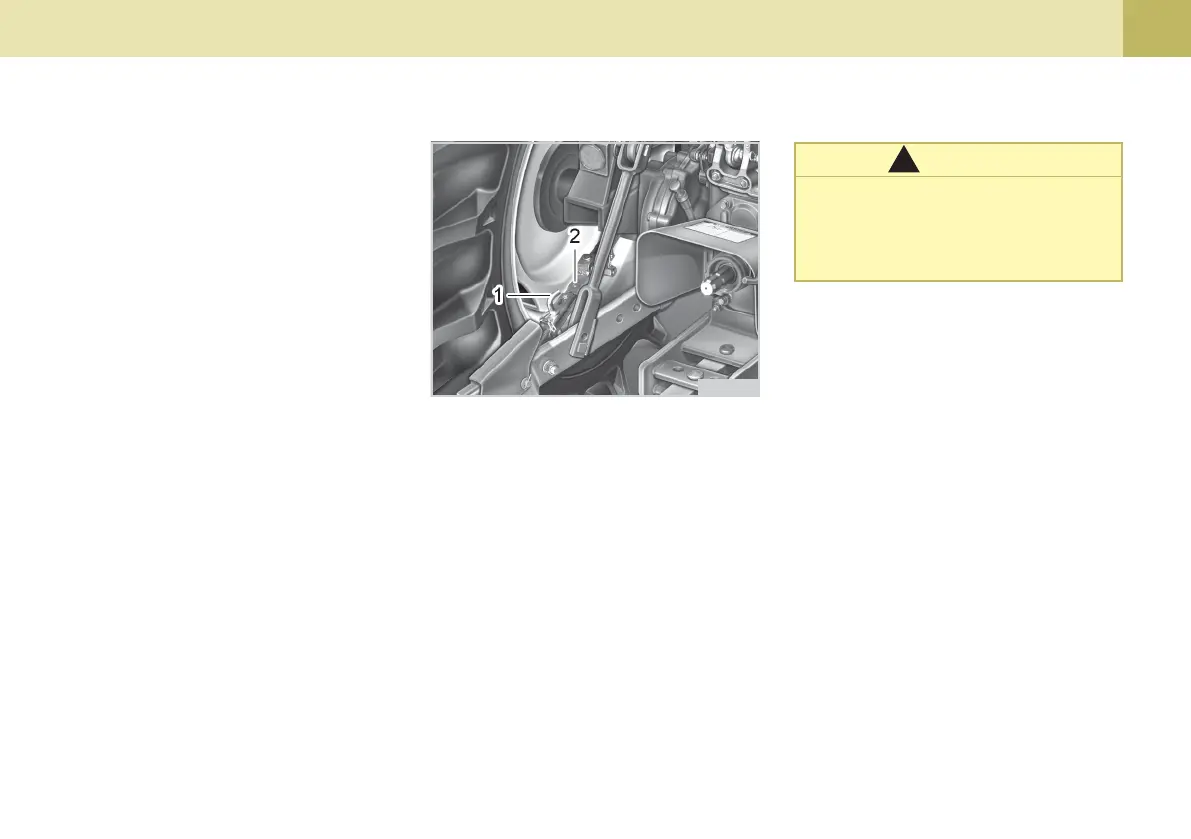

(1) Pin
(2) Telescopic Sway Bar
Adjust the telescopic sway bar so that
the implement can move 5 to 6 cm(2.0
to 2.4 in.) laterally.
Telescopic sway bar should be tight
enough to prevent excessive imple-
ment movement when implement is in
raised position.
LIFTING ROD (RIGHT)
Lift Rod - To adjust the horizontal po-
sition of the implement turn the handle
on the right lift rod. Most implements
are designed to operate level. Set the
position desired by placing the lock-
ing unit over the handle as illustrated.
TOP LINK
1. Adjust the angle of the implement to
the desired position by shortening or
lengthening the top link.
2. The proper length of the top link var-
ies according to the type of imple-
ment being used.
704O605C
