7-3HYDRAULIC UNIT
MIXED CONTROL(IF EQUIPPED)
In draft control, when draft decreases,
the implement automatically lowers to
increase draft. However, the implement
sometimes lowers too much. To limit
the degree, the implement can be low-
ered, set the position control lever at
the lowest working depth desire for the
implement. Lower the draft control le-
ver to the point where the implement is
at the desired depth.
This stops the implement from going
too deep and causing loss of traction
and ground speed.

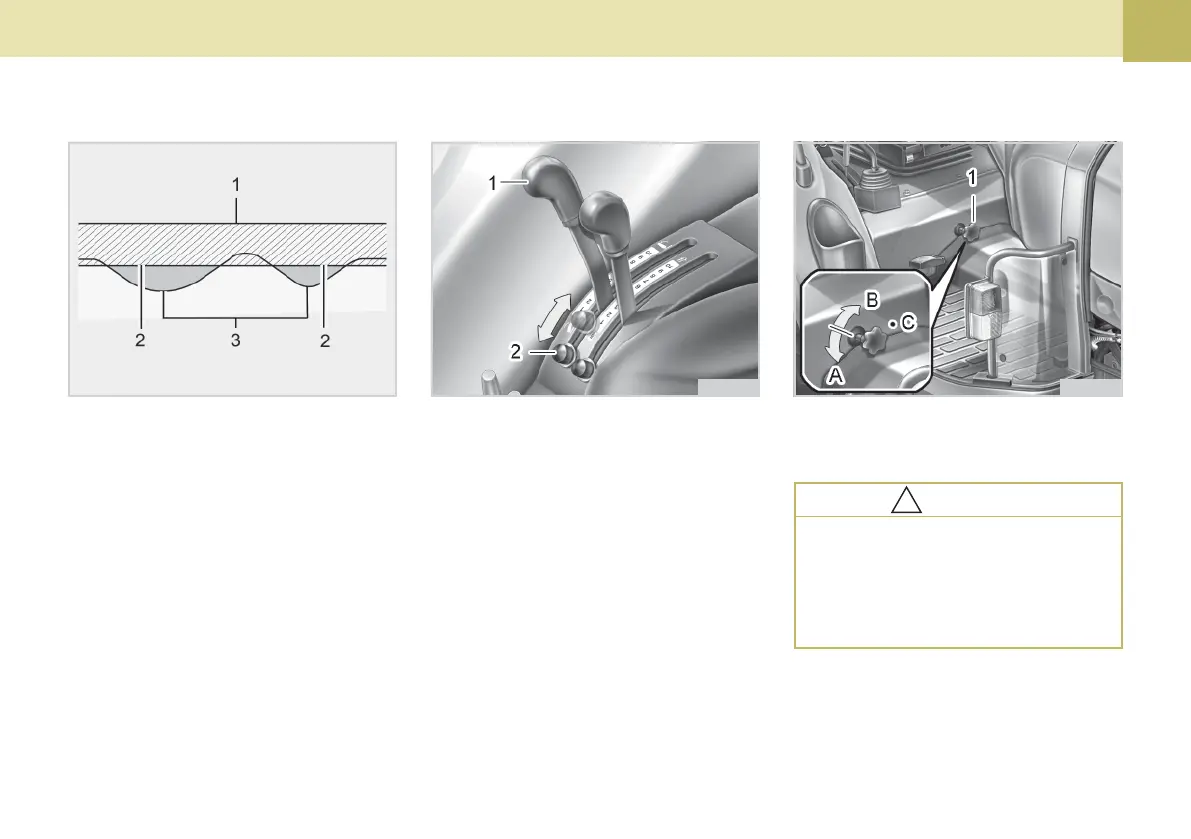

(1) Ground Surface (3) Soft Soil
(2) Implement Penetration Limit
(1) Position Control Lever
(2) Lock Bolt
IMPLEMENT LOWERING LIMIT
The lower limit can be adjusted by mov-
ing the position of the locker. Shifting
the locker backward raises the lower
limit and shifting the locker forward low-
ers the lower limit.
The lowering speed of the 3-point hitch
can be controlled by adjusting the 3-
point lowering speed knob.
(1) 3-Point Lowering Speed Knob
(A) FAST (C)LOCK
(B)SLOW
3-POINT HITCH LOWERING
SPEED
704O705C704O704C704O703C
To avoid personal injury:
zz
zz
z Fast lowering speed may cause
damage or injury. Lowering
speed of implement should be
adjusted to two or more seconds.
!!
!!
!
CAUTION
