7-5HYDRAULIC UNIT
Pull
Out
In
Out
In
Push
In
Out
In
Out
Port
A
B
C
D

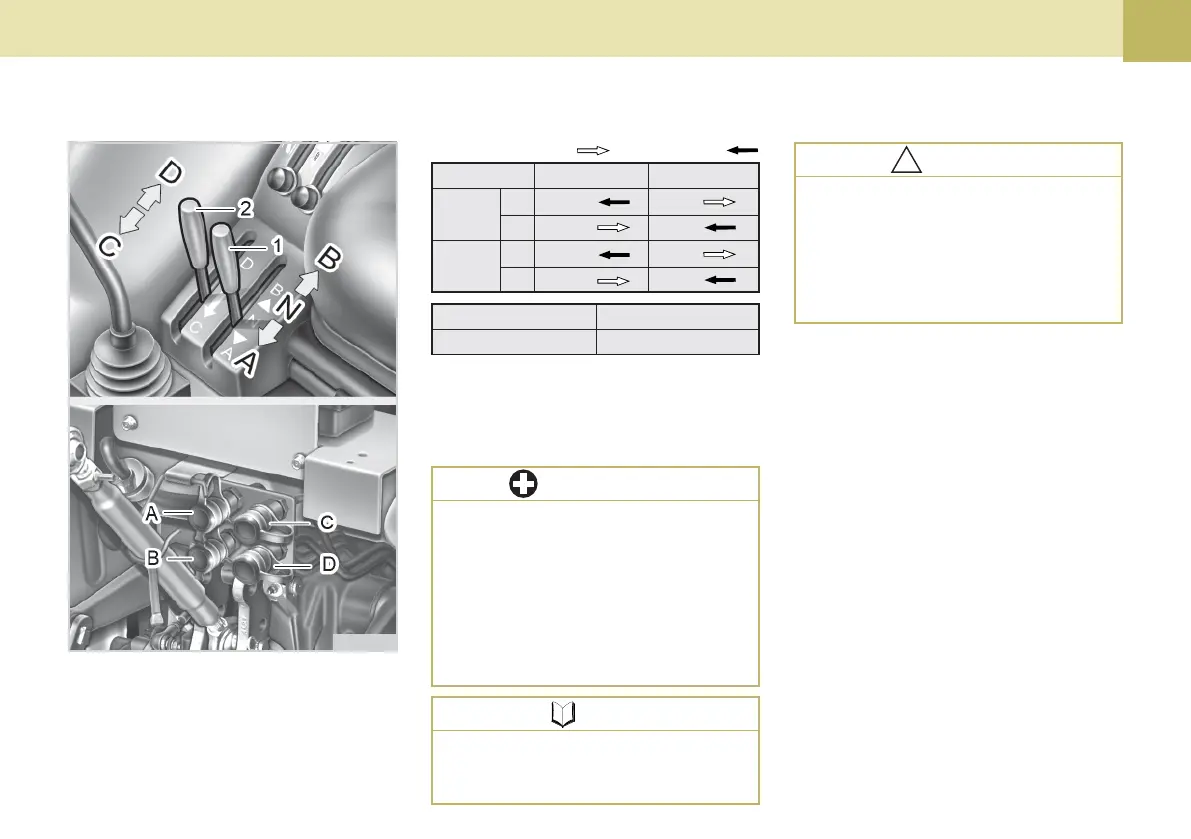

Lever1
Lever2
704O708C
(1) Double Acting Lever 1
(2) Double Acting Lever 2
(A) A PORT (C)C PORT
(B) B PORT (D)D PORT
DOUBLE ACTING LEVER
Pressure Returning
Move the lever up or down and hold.
This will raise or lower the implement.
Lever will return to neutral when
released.
To avoid personal injury:
zz
zz
z Stop the engine and relieve
pressure before connecting or
disconnecting lines.
zz
zz
z Do not use your hand to check
for leaks.
CONNECTING
1. Clean both couplers.
2. Remove dust plugs.
3. Insert the implement coupler to the
tractor hydraulic coupler.
4. Pull the implement coupler slightly
to make sure couplers are firmly
connected.
!!
!!
!
CAUTION
DISCONNECTING
1. Clean the couplers.
2. Relieve pressure by moving hydrau-
lic control levers with engine shut off.
Pull the hose straight from the hy-
draulic coupler to release it.
3. Clean oil and dust from the coupler,
then replace the dust plugs.
zz
zz
z Do not hold the lever in the
“pull” or “push” position once
the remote cylinder has reached
the end of the stroke, as this will
cause oil to flow through the re-
lief valve. Forcing oil through
the relief valve for extended
periods will overheat the oil.
IMPORTANT
Port A, B, C, D
Coupler Size
PT 1/2"
zz
zz
z Your local KIOTI Dealer can sup-
ply parts to adapt couplers to hy-
draulic hoses.
NOTE
To Next Page
