DESCRIPTION OF OPERATING SYSTEM 4-7
615O412A

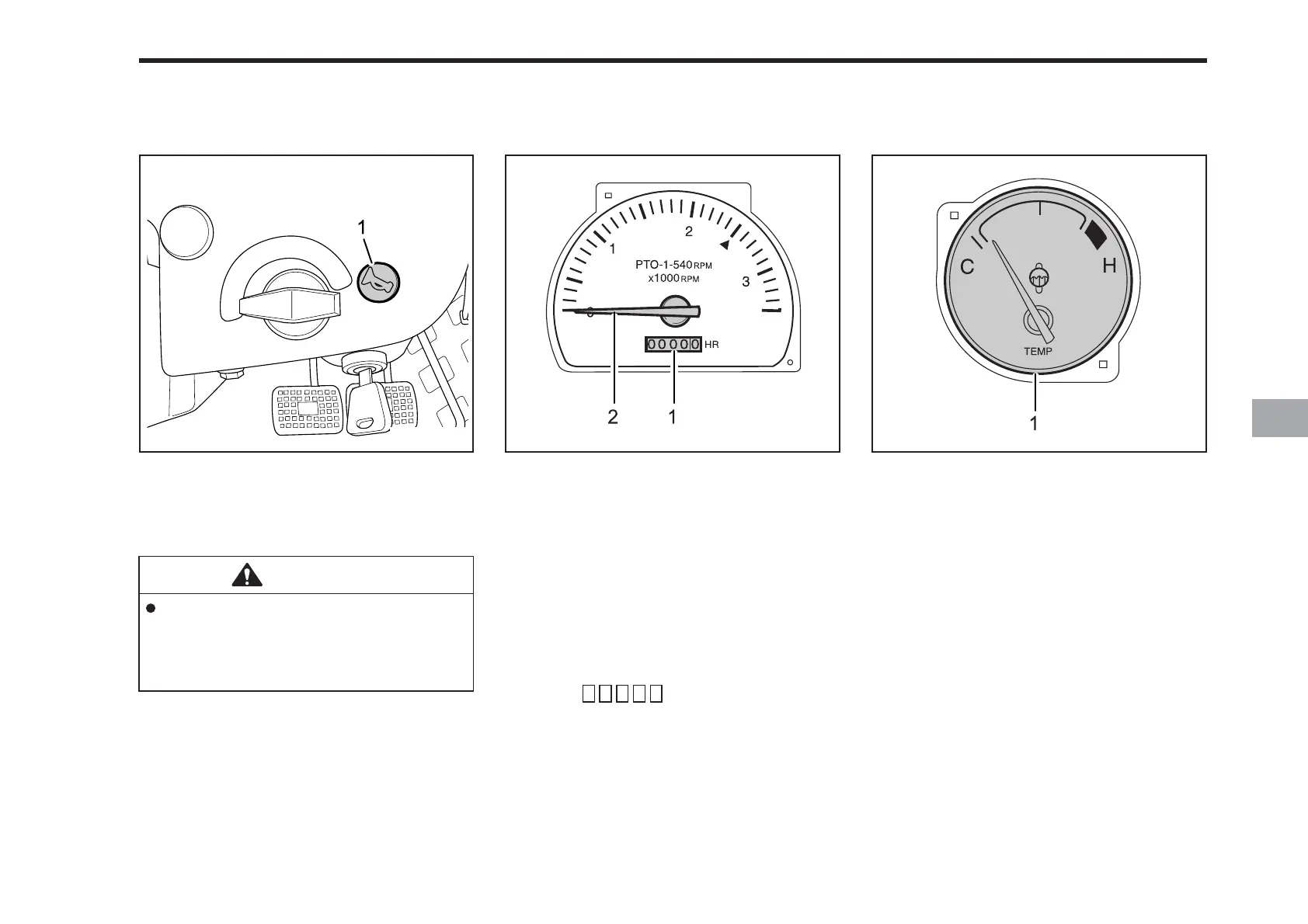

TACHOMETER/HOUR METER
(1) Hour Meter
(2) Engine Revolution Meter
This meter shows the number of hours
the tractor has been operated at rated
engine rpm. The last digit (white
background) indicates 1/10 of an hour.
The time in minutes will be shown by mul-
tiplying by six to last digit on white
background.
Example 0 1 7 0 1 …. 170 hours 6 min-
utes used. Moving hand indicates the
revolution per minute of the engine
HORN BUTTON (ONLY EU, AU)
615O411A
Pressing the button blows the horn.
CAUTION
If it is often used for a short time,
its life will be shortened. And so,
please avoid using it less than 1
second.
(1) Horn Button
615O413A
Wait until Engine is warm enough. Do not
operate tractor before Temp. meter indi-
cates the proper temperature. Be care-
ful not to overheat the engine by exceed-
ing the normal operating of the cooling
water (red section on temperature gauge
indicates overheating). Before operating
tractor, always check the amount of cool-
ing water in the radiator.
TEMPERATURE GAUGE
(1) Temperature Gauge
