5-18 DK35/40/450L
POSITION CONTROL
The position of an attachment can be
freely controlled within the range of po-
sition control, using the lever. An attach-
ment will completely lower when the le-
ver is in the floating range.

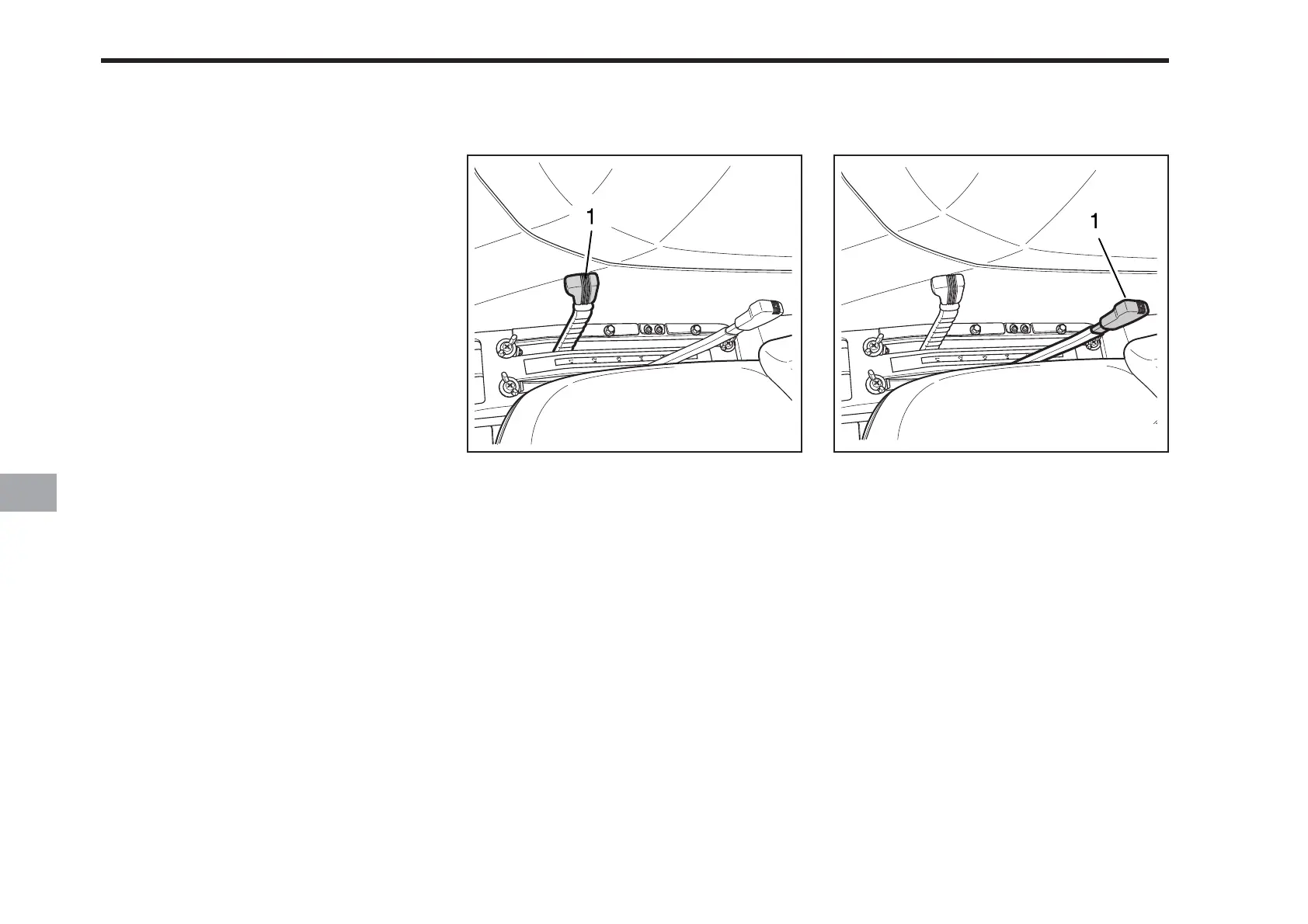

615O520A
(1) Position Control Lever
DRAFT CONTROL
1. The draft control is used to do draft work
with an attachment, like a plow, attached
to the 3-point linkage.
2. In the floating range. the attachment will
completely lower.
3. In the draft control range, the hydraulic
unit will have a force to lift the attachment.
In this stage, it is possible to do stable
work without slipping.
4. If the draft force is higher than the resis-
tance of the attachment, the attachment
will be lifted up. If it is lower than the re-
sistance of the attachment, the attach-
ment will be restored to its original state.
5. By placing the lever closer to shallow, the
attachment can be lifted up by smaller draft
resistance.
615O521A
(1) Draft contol Lever
LIFTING DEVICES FOR AN ATTACHMENT
The hydraulic lifter can always be oper-
ated while the engine is running, regard-
less of engagement or disengagement of
the clutch.
