DT66-W00 Jan. 2007
9
-13
DK35/40/45/50SE
4. MEASUREMENT AND ADJUSTMENT

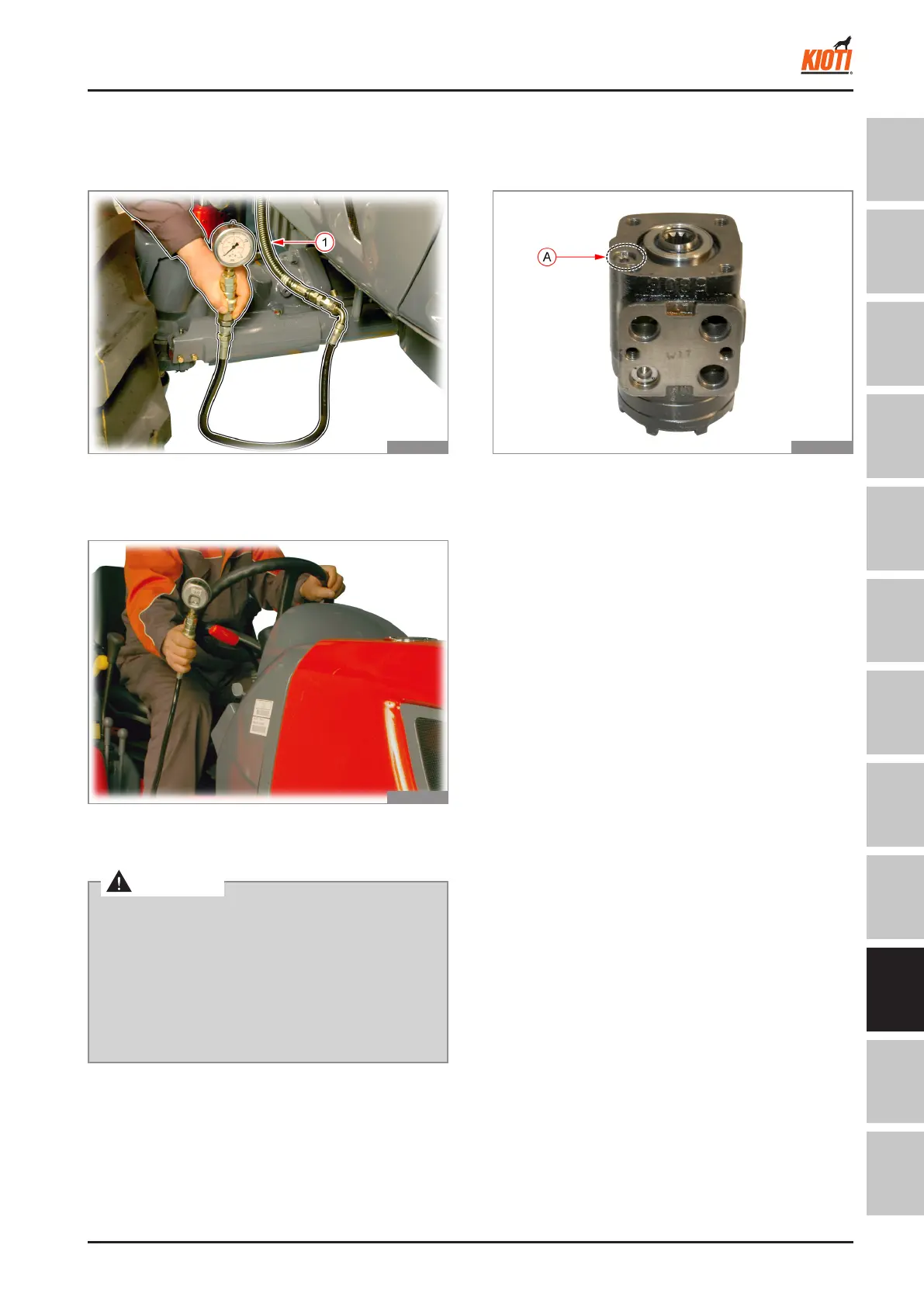

4.1 STEERING RELIEF OPENING PRESSURE
T46W913A
Disconnect the steering hose (1) to be tested and
connect the manometer (over 150 bar).
1.
T46W914A
Start the engine and turn the steering wheel to the
direction which the manometer is connected.
2.
Adjust the pressure as necessary.3.
4.2 RELIEF PRESSURE ADJUSTMENT
T46W915A
Turn the plug (A) for setting relief valve 90° at one
time and measure the steering relief pressure.
Turn the plug clockwise to increase the pressure.
When the right pressure is achieved, lock the plug.
1.
2.
3.
Be careful of the turning direction of the steering
since the oil spurts from the steering cylinder
if the steering wheel is turned to the opposite
direction.
The s p urt i ng fl u id wi t h hig h p res s ure c a n
penetrate your skin. In this case, see your doctor
immediately. Otherwise, your skin or muscle can
be seriously damaged.
•
•
WARNING
STEERING SYSTEM - MEASUREMENT AND ADJUSTMENT
