9
-24
DT66-W00 Jan. 2007
DK35/40/45/50SE
SAFETY FIRSTGENERALENGINECLUTCHTRANSMISSIONHSTREAR AXLEBRAKEFRONT AXLEHYDRAULICELECTRIC STEERING

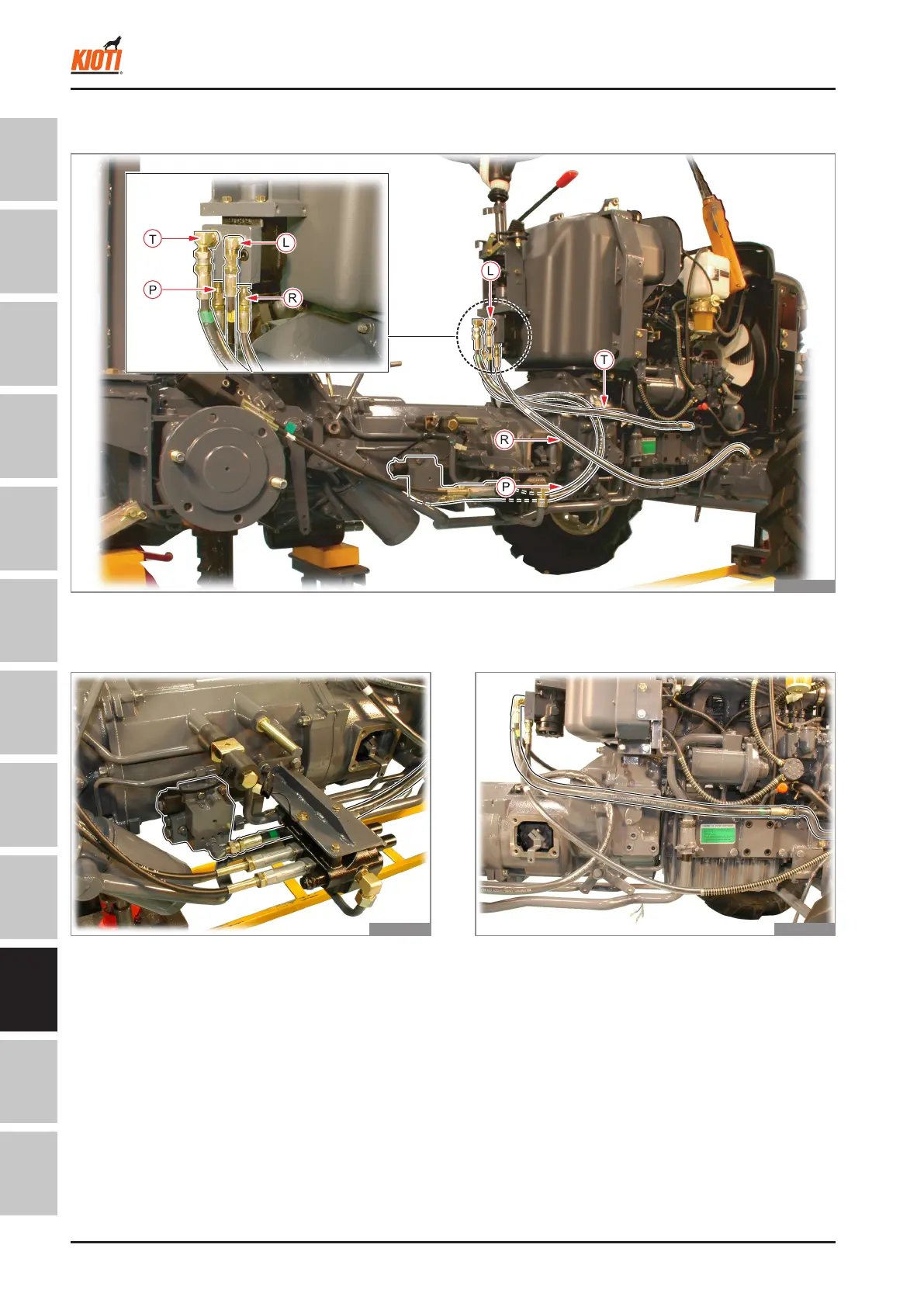

6.4 STEERING HOSE LOCATION
This is the hydraulic pressure supply hose installed be-
tween modulator valve and steering unit. It is indicated
by green tape on both ends.
T46W954A
T46W953A
P (PUMP)
▶
This is the return hose installed between steering unit
and hydraulic block on the gear pump.
For HST tractor, this hose is connected from steering
unit to HST passed through oil cooler.
T46W955A
T (RETURN)
▶
STEERING SYSTEM - SERvICING
