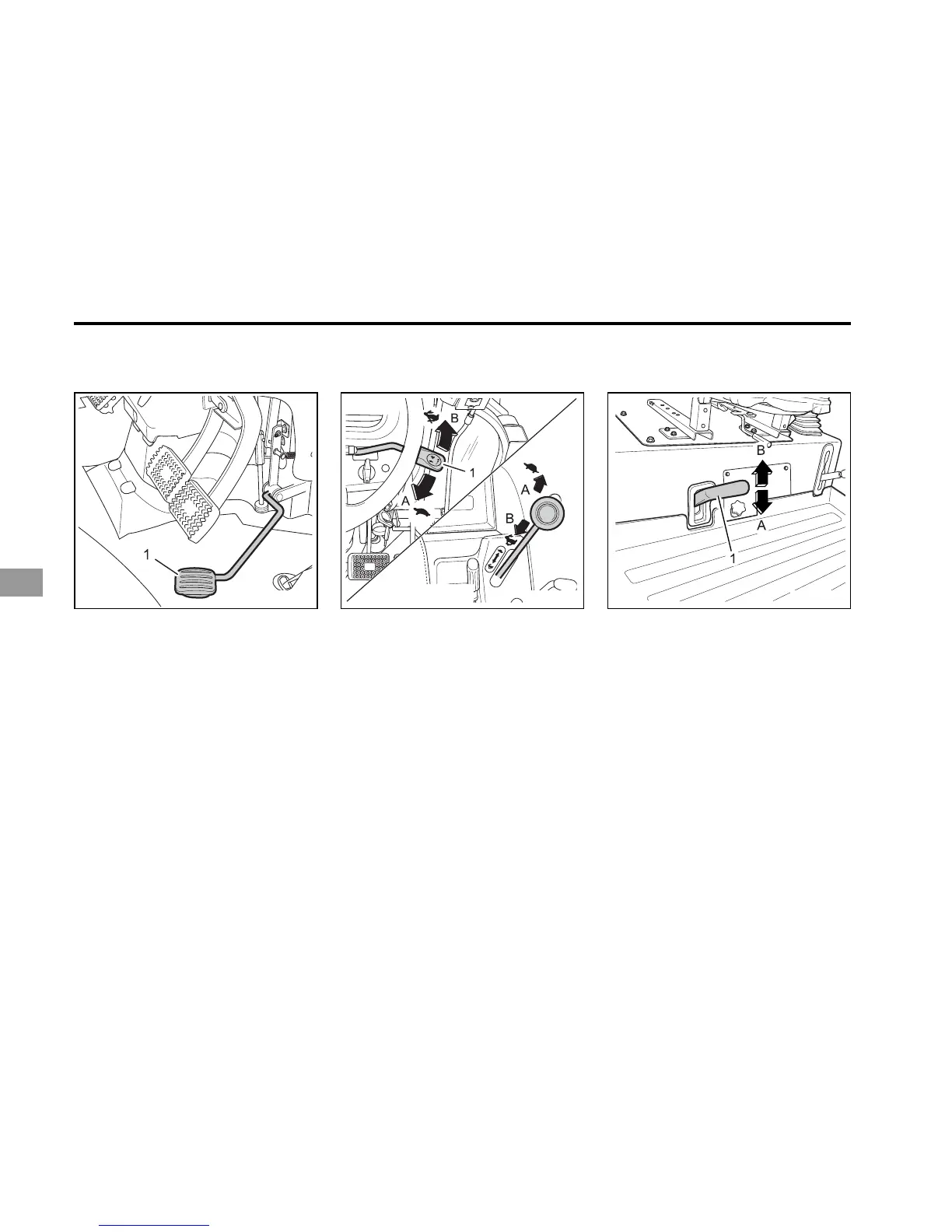

DIFFERENTIAL LOCK PEDAL
(1) Differential Lock Pedal
(A) Press to “ENGAGE”
(B) Release to “DISENGAGE”
A12O436A
FOOT THROTTLE
(1) Foot Throttle
The foot throttle is interlocked with the
hand throttle. Depressing the foot throttle
increases engine speed. Full engine
speed control can be obtained with the
foot throttle if the hand throttle is in full
rearward position. The foot throttle may
also be used to temporarily increase en-
gine speed above the hand throttle
setting.
HAND THROTTLE LEVER
(1) Hand Throttle Lever
(A) Decrease
(B) Increase
A12O437A
Differential lock is applied only in cases
where: the wheels are likely to slip, or
only one of the rear wheel slips. Lightly
stepping on the differential lock pedal with
the heel makes the rear wheels run at
equal speed. To unlock, just release the
pedal.
While the Diff. Lock pedal is engaged,
the warning lamp in instrument panel will
light up in the instrument panel.
DK501/551
DK451
