5-22 DK451/501/551
1
2
Attachment
Plow and
harrow
Rotavator,
mower,
hayrack and
cultivator
Adjustment of
chain length
Loosen the chain for an
attachment to sway later-
ally by 50 to 60 mm.
(1.97 to 2.36in.)
Fasten lightly

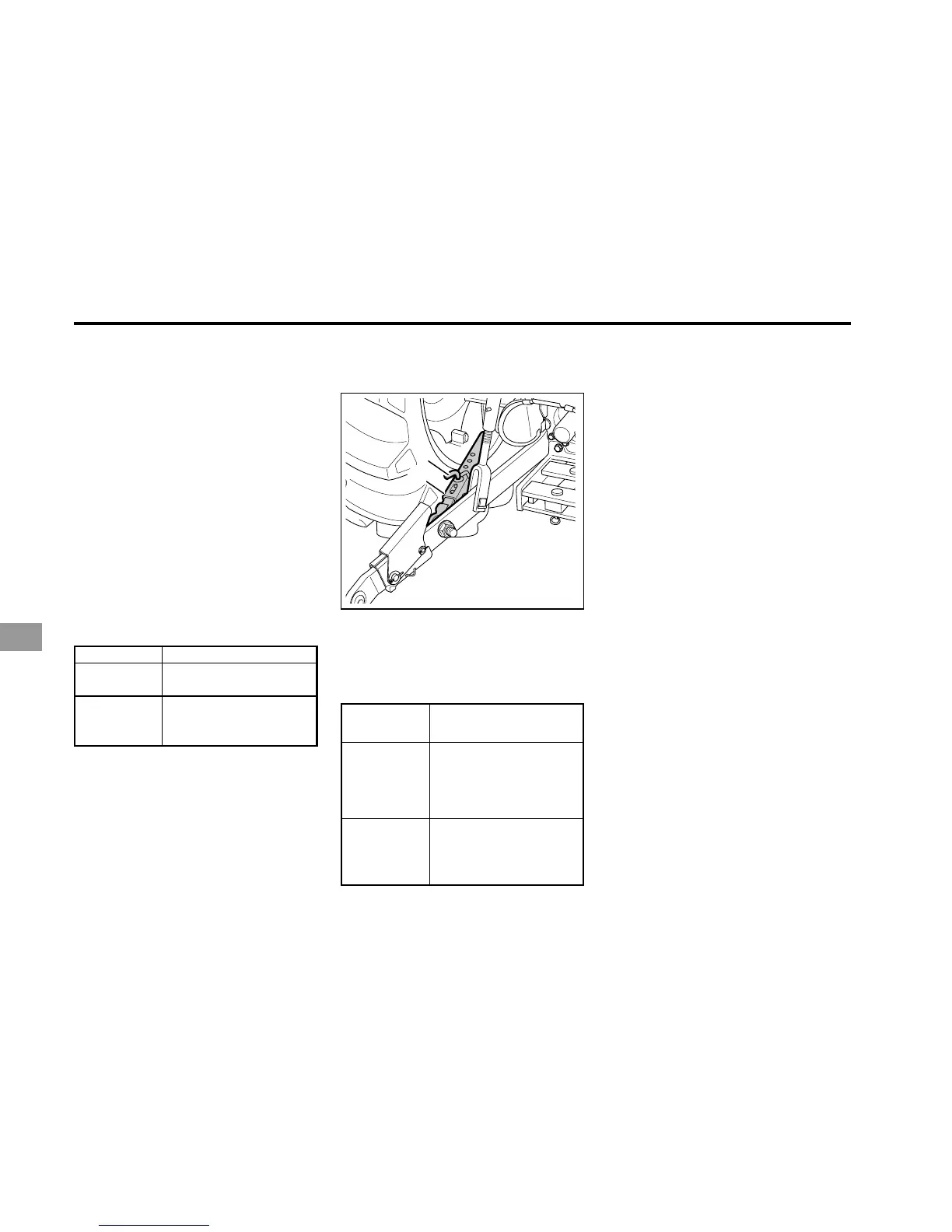

ADJUSTMENT OF TELESCOPIC STAY BAR
Adjust the check links to control horizon-
tal sway of the implement.
A12O528A
(1) Telescopic Stay Bar (2) Pin
1. Fix lower link (LH. RH) not to touch
with wheels when implement is not
attached.
2. Fix Top link into fixed bracket.
WHEN IMPLEMENT IS NOT ATTACHED
1. Extend or reduce Top link to adjust the
inclination of an attachment.
2. Fix Top link with fixed nut after adjust-
ing top link.
3. The position for mounting Top link var-
ies depending on the kind of attach-
ment.
ADJUSTMENT OF TOP LINK
ADJUSTMENT OF LOWER LINK
Implement
Soil engaging
(plough etc)
Non-soil
engaging
(mower etc)
Stabiliser adjustment
Place pin in slotted hole
Place pin in a non slotted
hole so that implement
cannot sway laterally.
