DT66-W00 Jan. 2007
DK35/40/45/50SE
SAFETY FIRSTGENERALENGINECLUTCHTRANSMISSIONHSTREAR AXLEBRAKEFRONT AXLEHYDRAULICELECTRIC STEERING

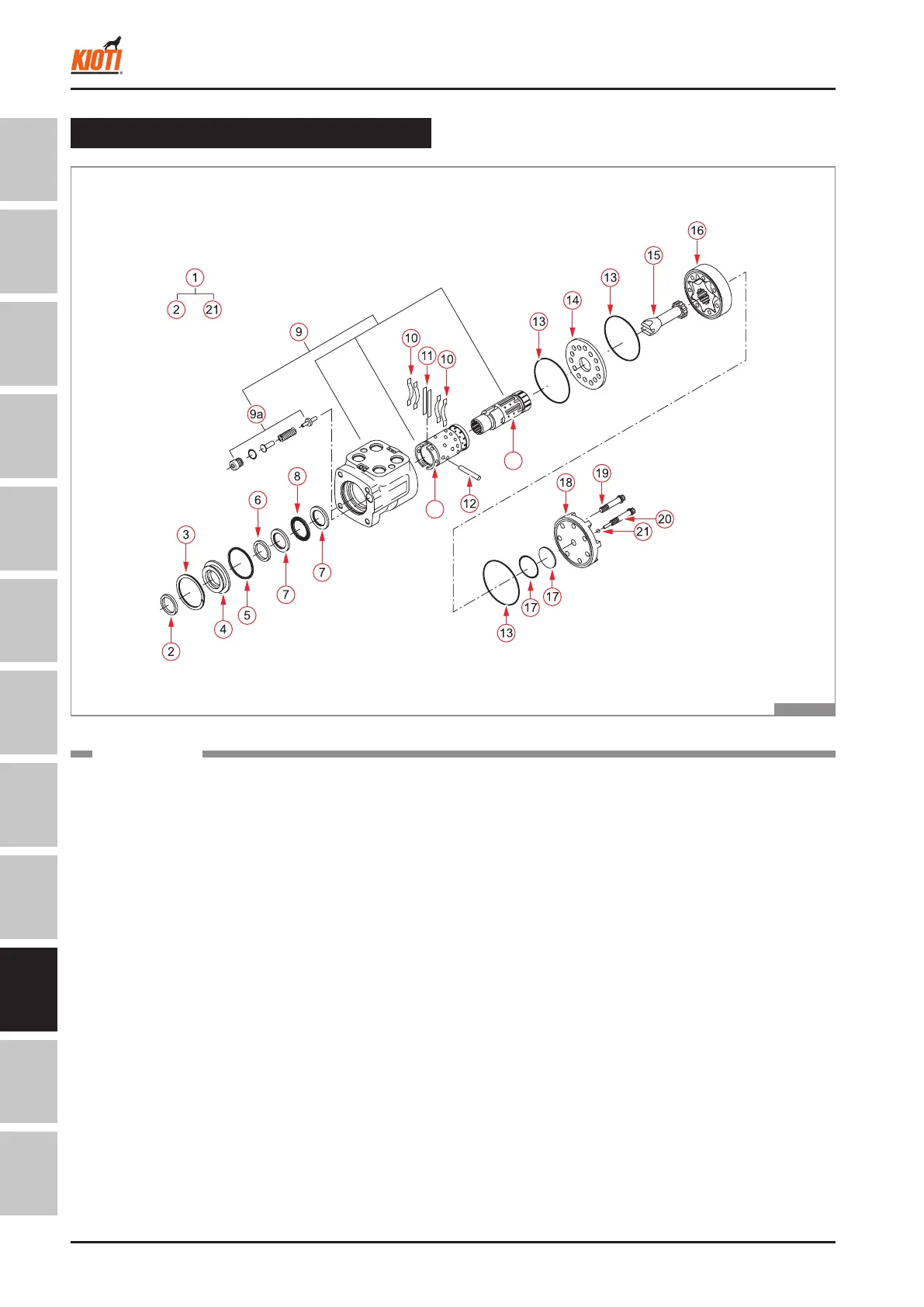

Steering unit
T46W912A
(1) Steering case assembly
(2) Dust seal
(3) Retainer ring
(4) Seal gland bushing
(5) O-ring
(6) Oil seal
(7) Lace bearing
(8) Thrust needle bearing
(9) Control valve assembly
(9a) Relief valve
(10) Centering spring
(11) Plain spring
(12) Pin
(13) O-ring
(14) Spacer
(15) Drive (shaft)
(16) Gerotor
(17) Star seal assembly
(18) Endcap
(19) Bolt
(20) Retainer bolt assembly
(21) Ball
(22) Spool
(23) Sleeve
COMPONENTS
STEERING SYSTEM - OPERATING PRINCIPLE
