9
-18
DT66-W00 Jan. 2007
DK35/40/45/50SE
SAFETY FIRSTGENERALENGINECLUTCHTRANSMISSIONHSTREAR AXLEBRAKEFRONT AXLEHYDRAULICELECTRIC STEERING

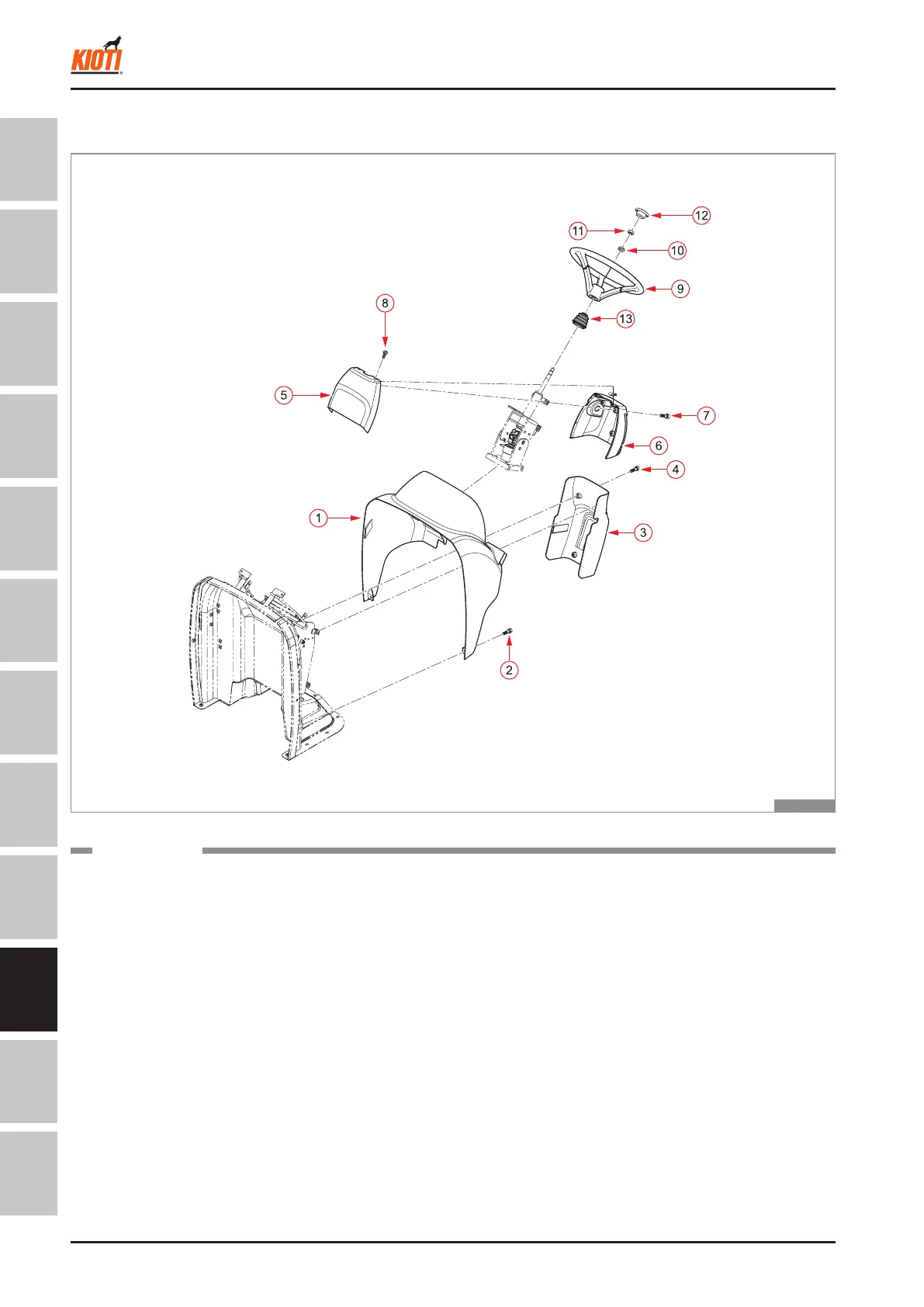

5.4 T875A INSTRUMENT PANEL COVER
T46W920A
(1) Instrument cover (T)
(2) Bolt with captive washer
(3) Cover (P)
(4) Bolt with captive washer
(5) Steering wheel cover (FRT)
(6) Steering wheel cover (RR)
(7) Spring nut
(8) Screw
(9) Steering wheel assembly
(10) Spring washer
(11) Nut
(12) Steering wheel cap
(13) Bellows
COMPONENTS
STEERING SYSTEM - SYSTEM LAYOUT
