DK35/40/45/50SE

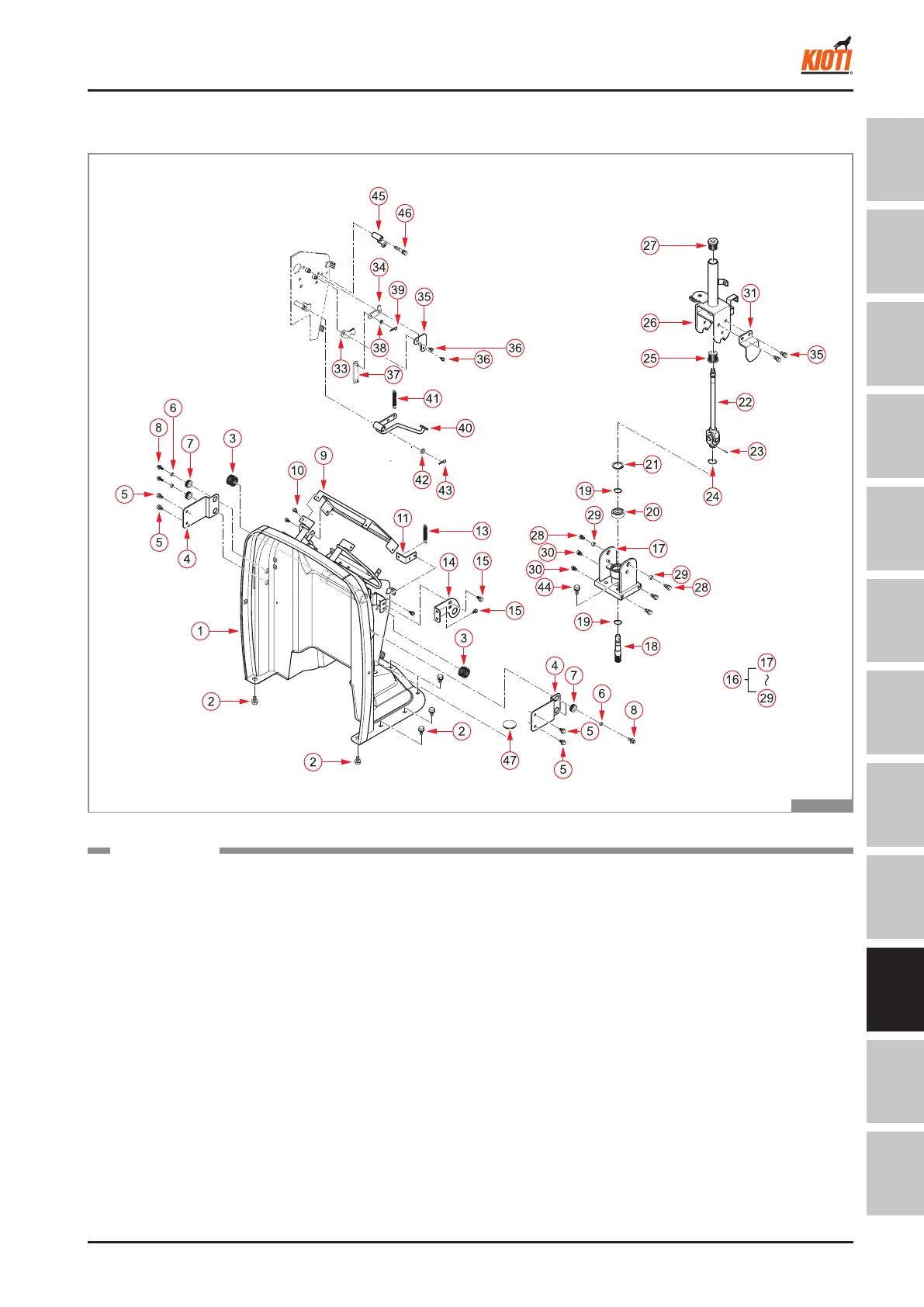

5.5 T845A-1 FRAME (HST)
T46W921A
(1) Frame assembly
(2) Flange bolt
(3) Needle bearing
(4) Tank support
(5) Flange bolt
(6) Spacer
(7) Grommet
(8) Bolt with captive washer
(9) Instrument panel holder
(10) Flange bolt
(11) Spring holder
(12) Flange bolt
(13) Brake spring
(14) Support
(15) Bolt with captive washer
(16) Steering assembly
(17) Steering support
(18) Shaft
(19) Snap ring
(20) Ball bearing
(21) Snap ring
(22) Steering shaft assembly
(23) Spring pin
(24) Snap ring
(25) Cushion rubber 2
(26) Column
(27) Cushion rubber
(28) Bolt with captive washer
(29) Collar (tilt)
(30) Bolt with captive washer
(31) Sector gear
(32) Bolt with captive washer
(33) Lock gear
(34) Lever (tilt)
(35) Fixing plate (tilt)
(36) Bolt with captive washer
(37) Rod (tilt)
(38) Plain washer
(39) Snap pin
(40) Tilt pedal
(41) Brake spring
(42) Plain washer
(43) Snap pin
(44) Bolt with captive washer
(45) Bracket (spring holder)
(46) Bolt with captive washer
(47) Rubber plug (frame)
COMPONENTS
STEERING SYSTEM - SYSTEM LAYOUT
