Kioti DK45SE - Steering Unit Removal and Installation

9
-22
DT66-W00 Jan. 2007
DK35/40/45/50SE
SAFETY FIRSTGENERALENGINECLUTCHTRANSMISSIONHSTREAR AXLEBRAKEFRONT AXLEHYDRAULICELECTRIC STEERING

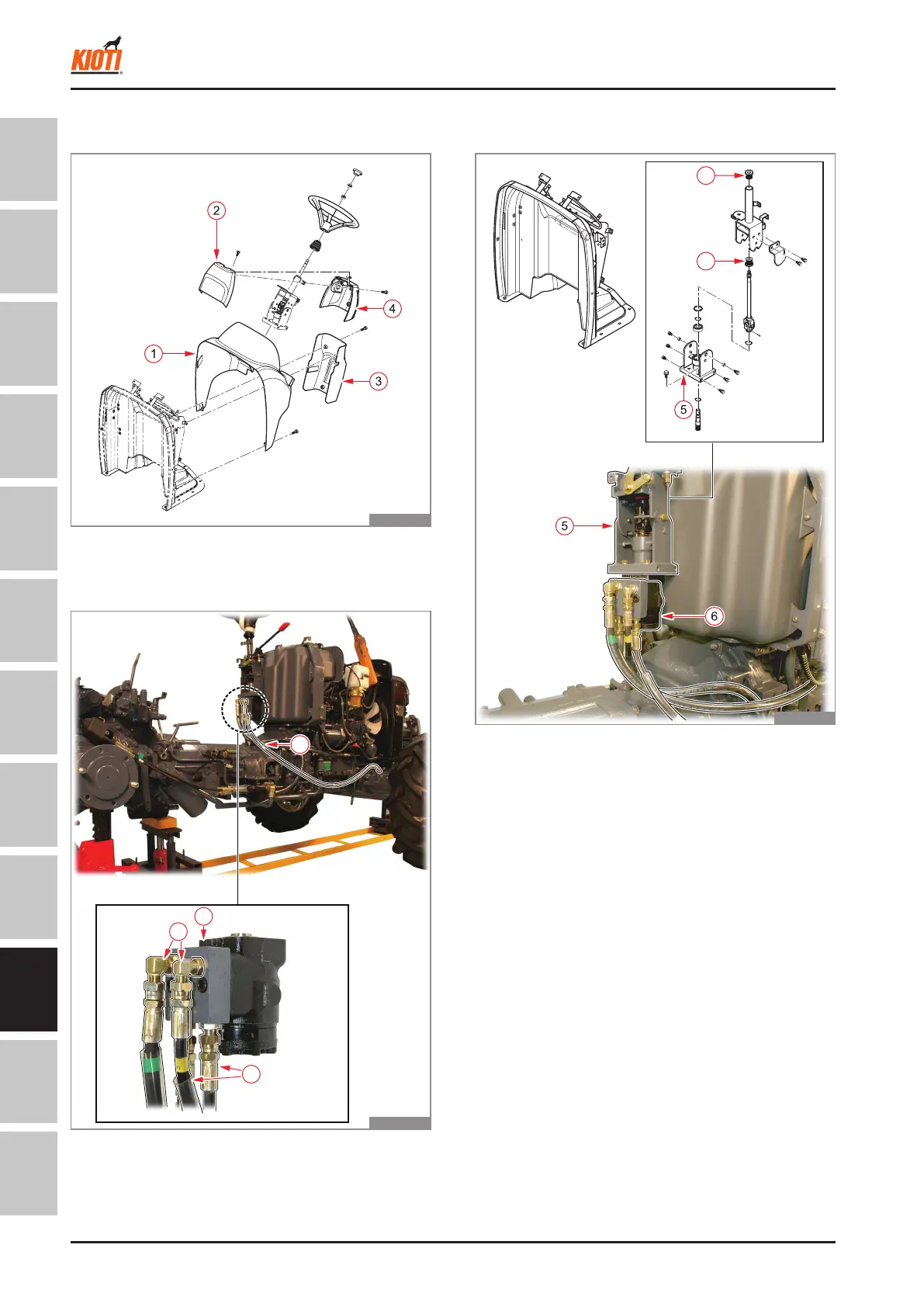

6.2 REMOVAL OF STEERING UNIT
T46W926A
Remove the upper cover (1), lower cover (3), front
handle cover (2) and rear handle cover (4).
1.
Disconnect the steering hoses (1) from the steering
unit (2).
2.
7
7
T46W928A
1
2
1
1
T46W927A
Remove the steering support (5) from the frame.
Separate the steering unit (6) from the steering
support (5).
3.
4.
STEERING SYSTEM - SERvICING
