Kioti DK45SE - 5 Exploded View; T595 A Steering Cylinder

SAFETY FIRSTGENERALENGINECLUTCHTRANSMISSIONHSTREAR AXLEBRAKEFRONT AXLEHYDRAULICELECTRIC STEERING
DT66-W00 Jan. 2007
9
-15
DK35/40/45/50SE

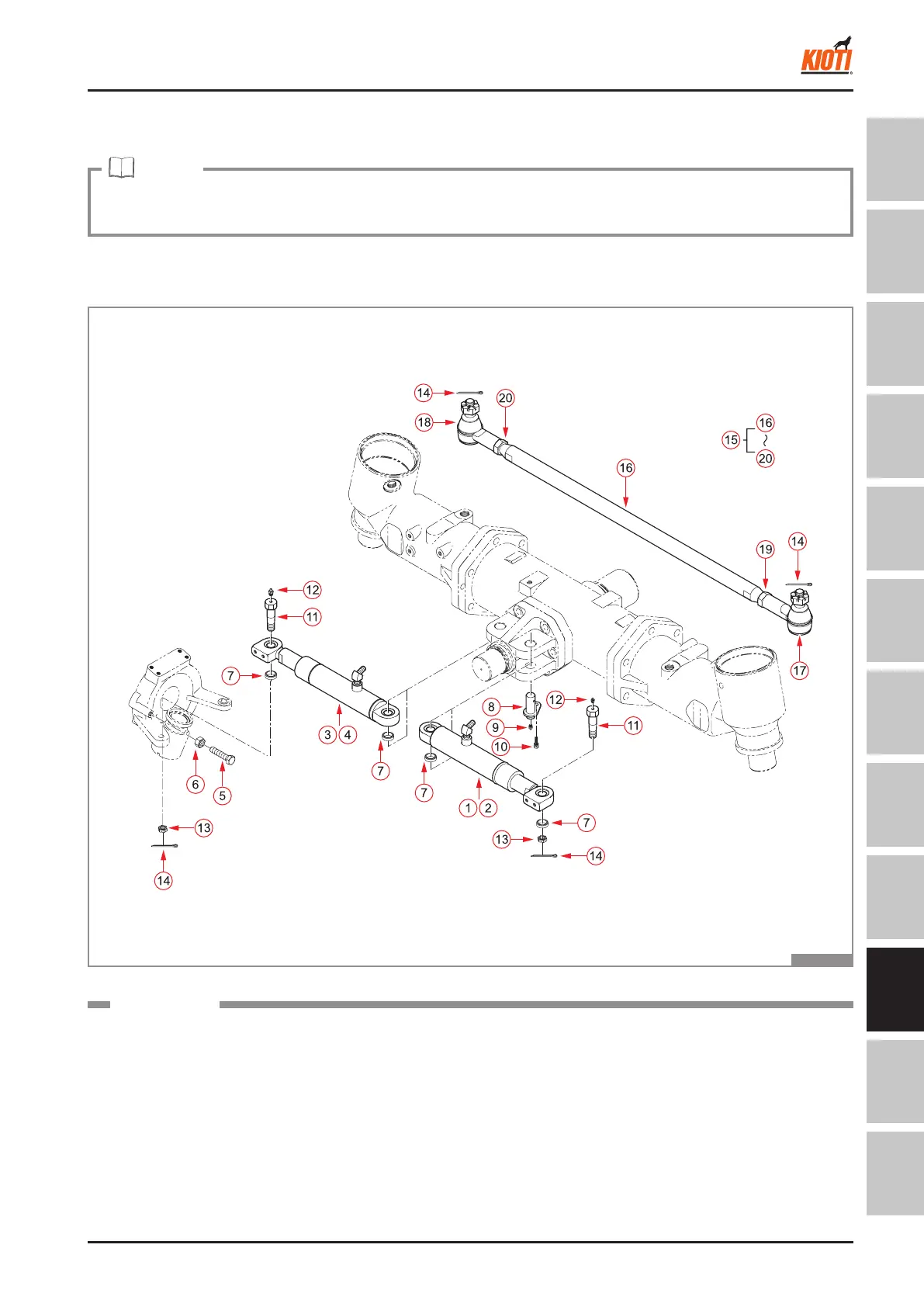

5. EXPLODED VIEW
T46W917A
5.1 T595A STEERING CYLINDER
The manufacturing parts are subject to change without notice. Therefore, check the parts catalog or electronic
manual for latest information.
•
NOTES
(1) Steering cylinder assembly
(LH, 35 HP)
(2) Steering cylinder assembly
(LH, 40~50 HP)
(3) Steering cylinder assembly
(RH, 35 HP)
(4) Steering cylinder assembly
(RH, 40~50 HP)
(5) Bolt
(6) Nut
(7) Spacer
(8) Cylinder support pin
(9) Grease nipple
(10) Bolt with captive washer
(11) Support pin
(12) Grease nipple
(13) Threaded nut
(14) Cotter pin
(15) Tie rod assembly
(16) Tie rod
(17) Tie rod end assembly (LH)
(18) Tie rod end assembly 2
(19) Nut (LH)
(20) Nut (RH)
COMPONENTS
STEERING SYSTEM - SYSTEM LAYOUT
