- 35 -

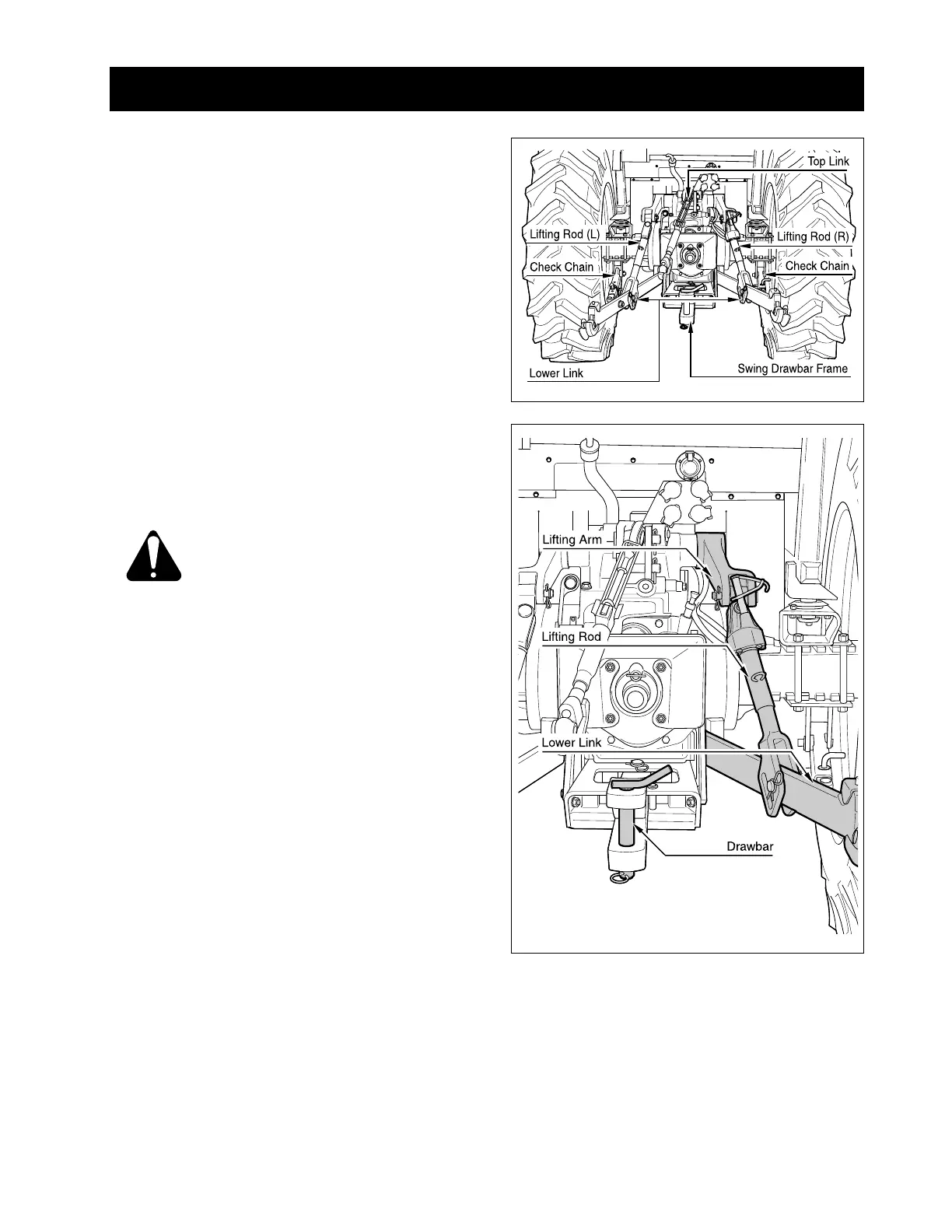

5. Three-point Hitch & Drawbar
Adjustment of Top Link
1. Adjust the angle of the implement to the desired
position by shorting or lengthening the Top Link.
2. The fixing position of the top-hitch varies according
to the type of implement being used.
Adjustment of Lifting Rod
1. Adjust the position of the implement evenly by mov-
ing the lifting rod.
2. After the adjustment is completed, secure with the
stopper.
3. Correct positioning of the lifting rod to the lower
link is shown to the right side. Positioning varies
dependent upon the type of implement.
623O501A
623O502A
• Before disconnecting a lift rod from the
lower link, the ground. Ensure attached
equipment is correctly supported and
that on residual pressure remains in
the hydraulic system before removing
the lift rod securing pin. Move the hy-
draulic lift control lever fully backward
and forward several times, in order to
remove any residual pressure, then
move the lever fully forward.
WARNING
To Next Page
