Kioti KL155 - Pre-Installation Preparation; Mounting Frame Installation

14-2 KL155
INSTALLATION INSTRUCTIONS
• See your tractor Operator's manual for Safety pre-
cautions and Tractor preparations before install-
ing the loader.
CAUTION
STEP 1.
Position tractor on hard level surface.
STEP 2 .
Release loader, bucket and mount kit box from pallet.
STEP 3.

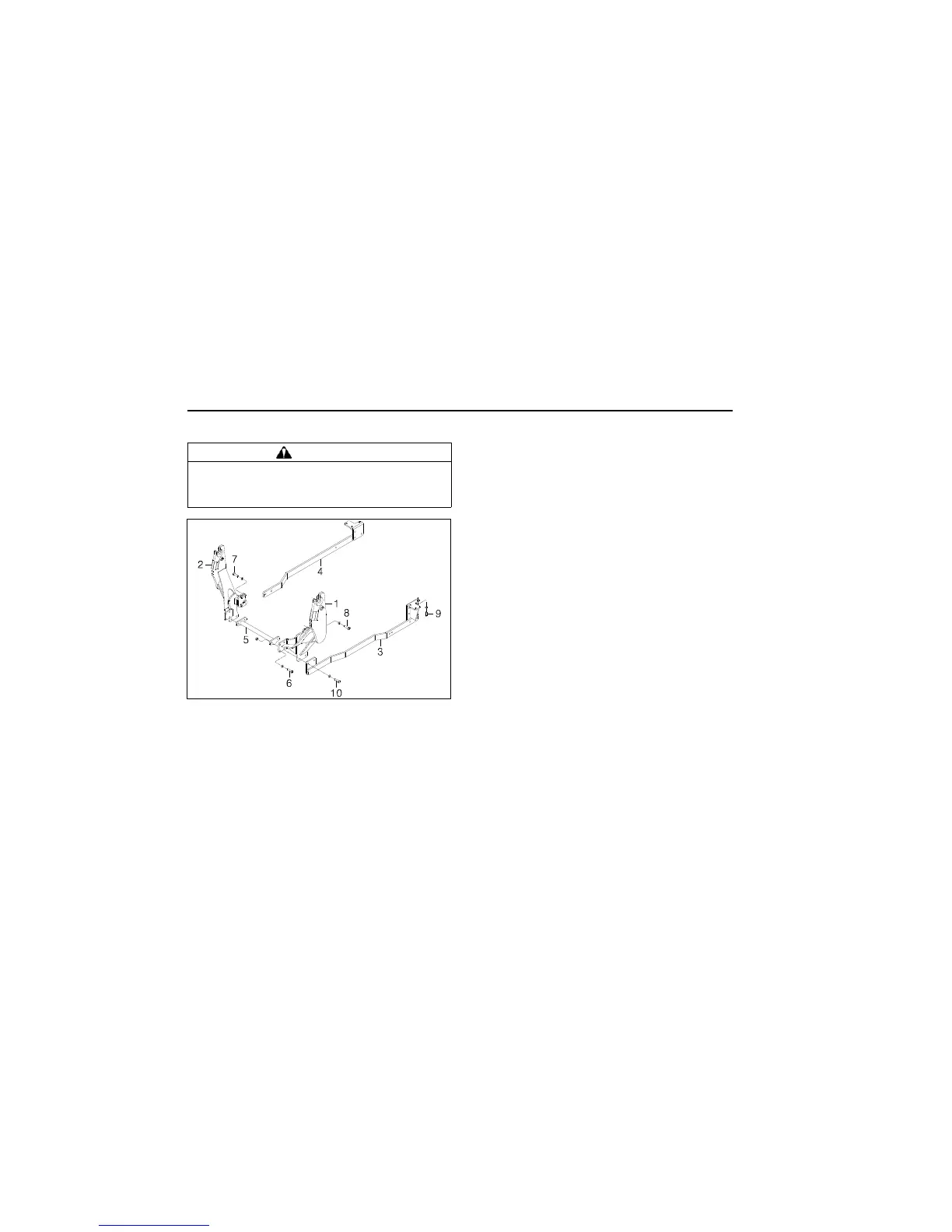

Install Mounting Frame-LH and
Mounting Frame-RH.
1. Mounting Frame-LH – 1EA
2. Mounting Frame-RH – 1EA
6. Hex-Bolt-HT, M14-1.5P 40L – 8EA
Washer-Spring, M14 – 4EA
7. Hex-Bolt-HT, M14-1.5P 60L – 5EA
Washer-Spring, M14 – 5EA
8. Hex-Bolt-HT, M14-1.5P 75L – 5EA
Washer-Spring, M14 – 5EA
STEP 4.
Install Cross Bar and Rear Frame-LH,
Rear Frame-RH.
3. Rear Frame-LH – 1EA
4. Rear Frame-RH – 1EA
5. Cross Bar – 1EA
9. Hex-Bolt-HT, M14-2.0P 55L – 6EA
Washer-Spring, M12 – 6EA
10.Hex-Bolt-HT, M14-2.0P 65L – 4EA
Washer-Spring, M14 – 4EA
Hex-Nut-HT, M14-2.0P – 4EA
