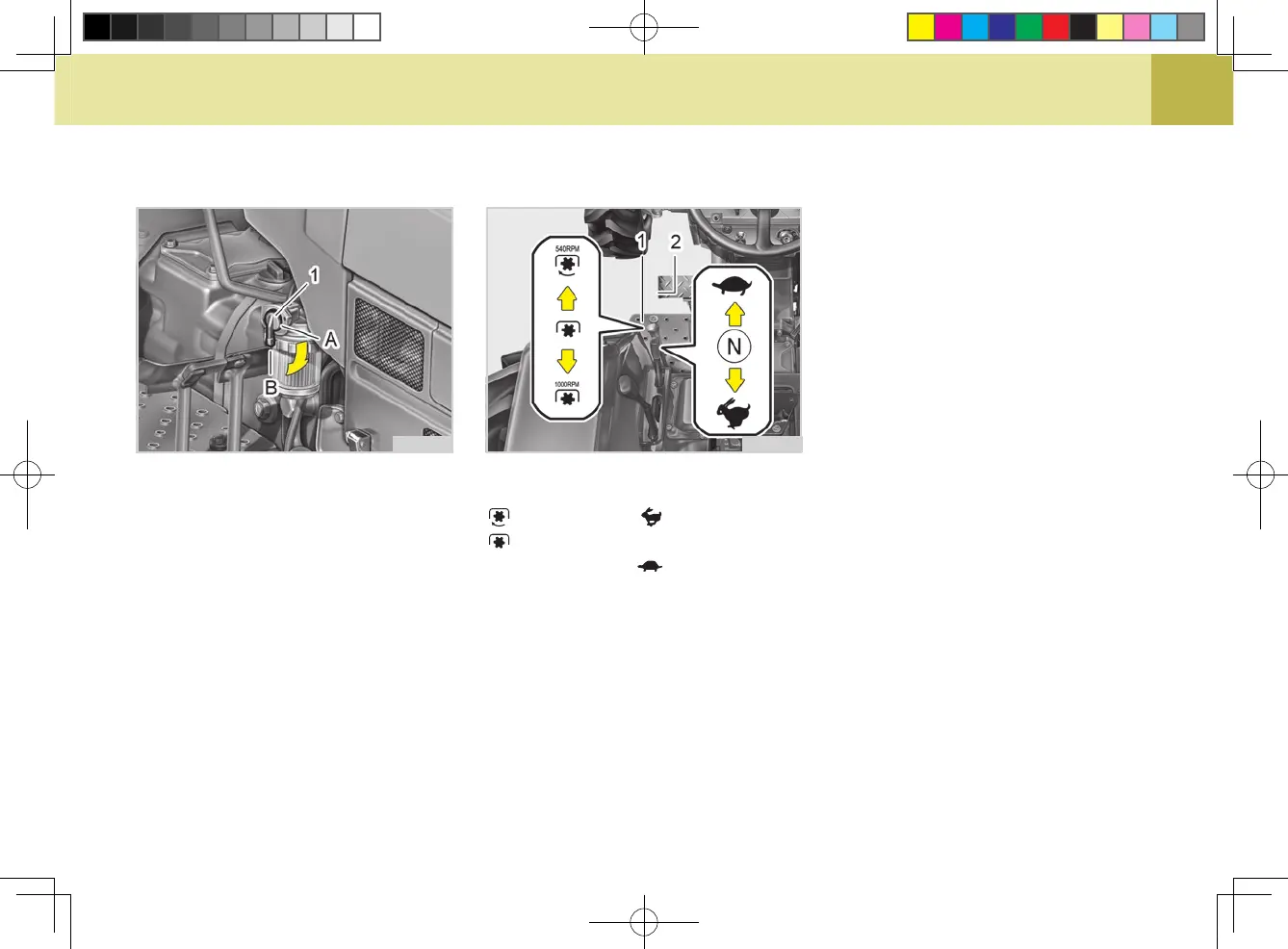

S41O502A
2. MAKE SURE THE FUEL COCK IS
IN THE OPEN POSITION.
(1) Fuel Cock
(A) Close (B) Open
3. PLACE THE P.T.O SHIHT LEVER
IN “OFF” POSITION.
4. PLACE THE RANGE GEAR SHIFT
LEVER (HI-LO) IN “NEUTRAL”
POSITION.
S41O503A
(1) P.T.O Shift Lever
(2) Range Gear Shift Lever (Hi-Lo)
“ENGAGED”
“HIGH SPEED”
“DISENGAGED”
N
“
NEUTRAL POSITION
”
“LOW SPEED”
MAIN GEAR SHIFT LEVER & HI-LO
GEAR SHIFT LEVER
The main gear shift lever pattern is
in the form of an “H”. The hi-lo gear
shift lever moves two stages, “high”
and “low”. By combination and use of
the main gear shift lever and the hi-lo
gear shift lever, it is possible to obtain
four speeds forward and reverse in
“high” range and four speeds forward
and reverse in “low” range, or a to-
tal of eight speeds forward and eight
speeds reverse.
