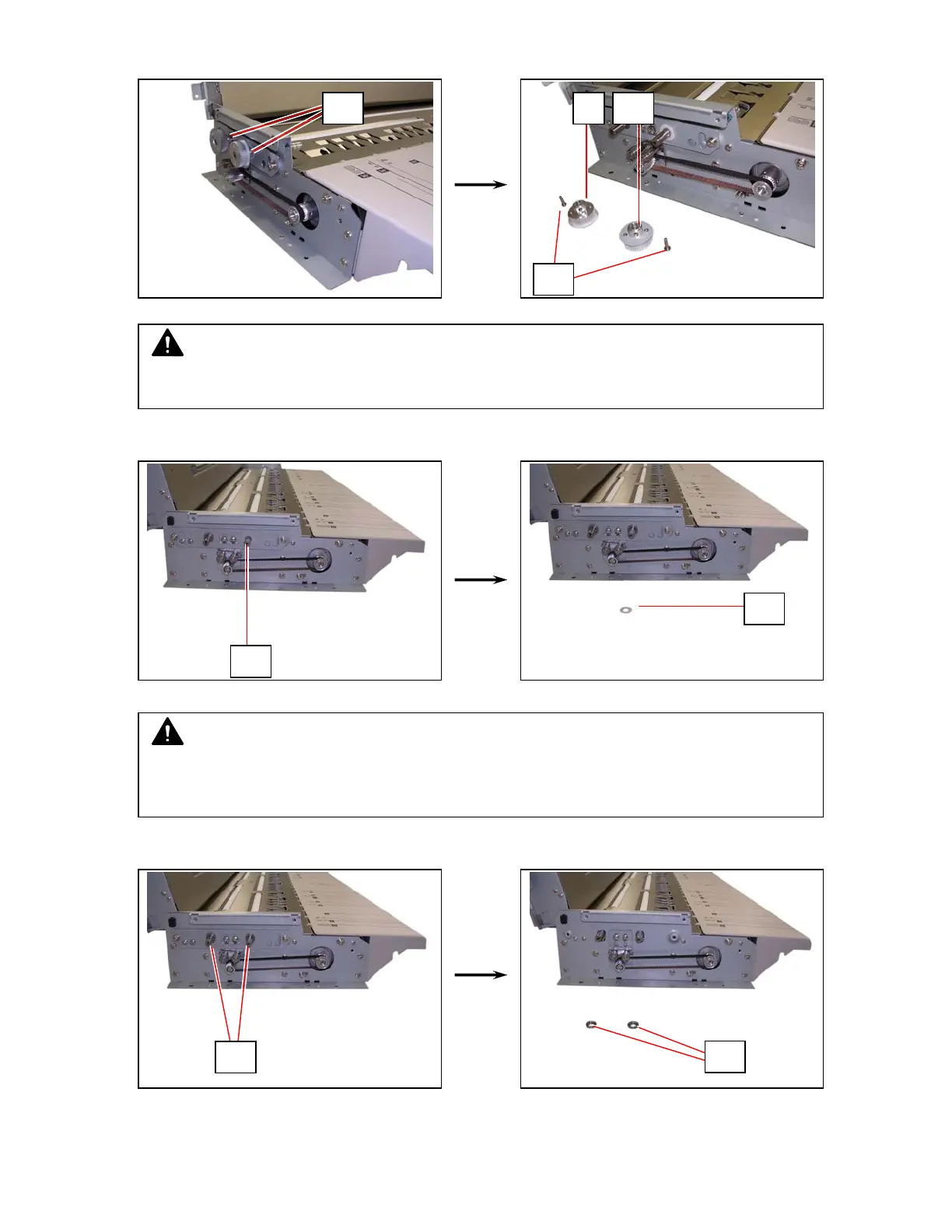

6. Remove 2 screws (11: 3x12) and remove Pulley Assemblies (9) (10).
7. Remove POM Washer (12).
8. Remove 2 Bearings (13).
NOTE
Reinstall Pulley Assemblies (9) (10) in place correctly.
NOTE
POM Washer is installed on Drive Roller 1 shaft.
Reinstall it on the right shaft.
11 9 10
11
12
12
13
13
