KIP 600 - Page 49

K110sm5e3.doc
5-17

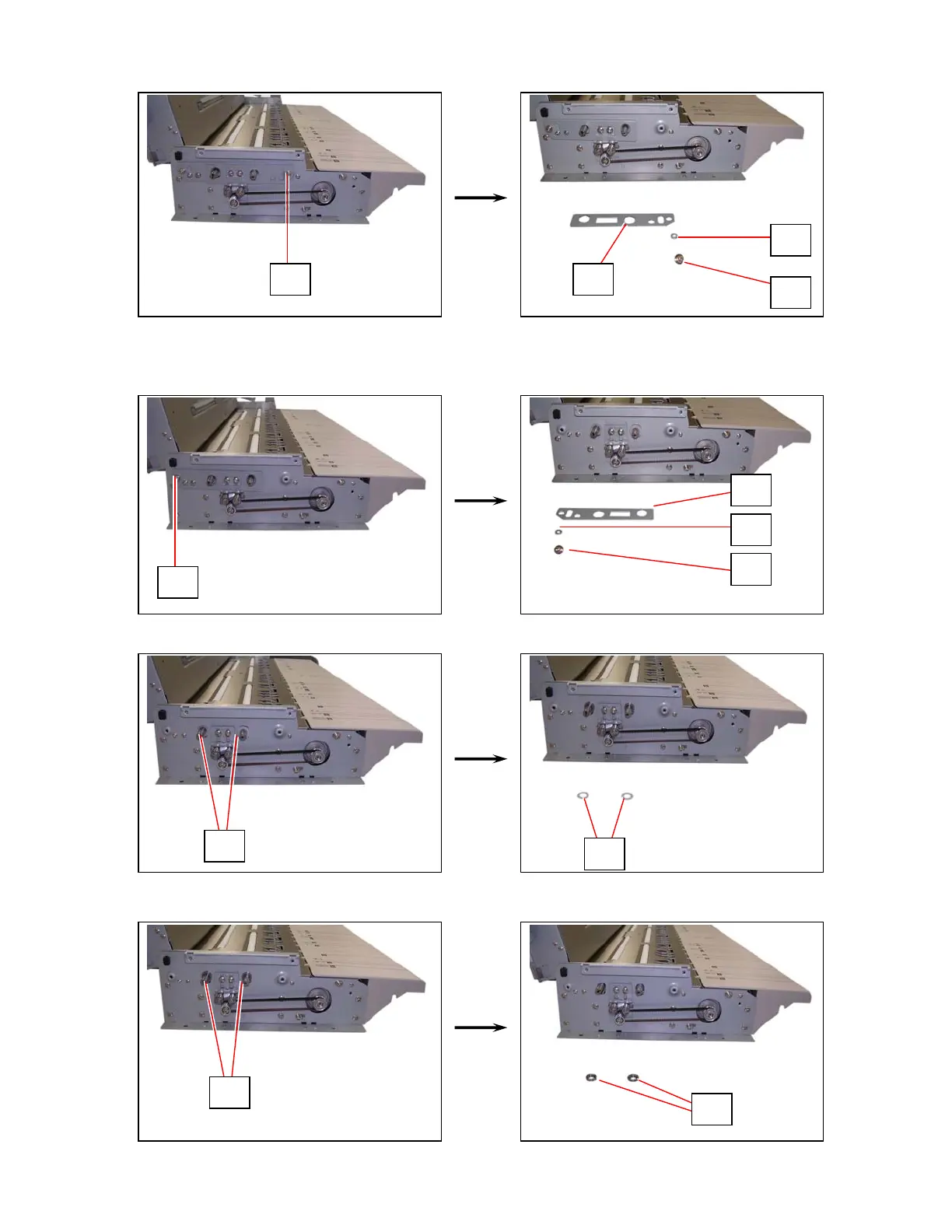

9. Remove the Pan Head Screw (14: 4x8).
Remove P4 Pivot Washer (15) and P4 Twin Link 1 (16).
10. Remove the Pan Head Screw (17: 4x8).
Remove P4 Pivot Washer (18) and P4 Twin Link 1 (19).
11. Remove 2 POM Washers (20).
12. Remove 2 Bearings (21).
