5. 3 Upper Unit
5. 3. 1 Replacing Main PCB
1. Remove Top Cover and Shield Cover N.
See [5.1.1 Removing Top Cover] and [5.1.2 Removing Shield Cover N].

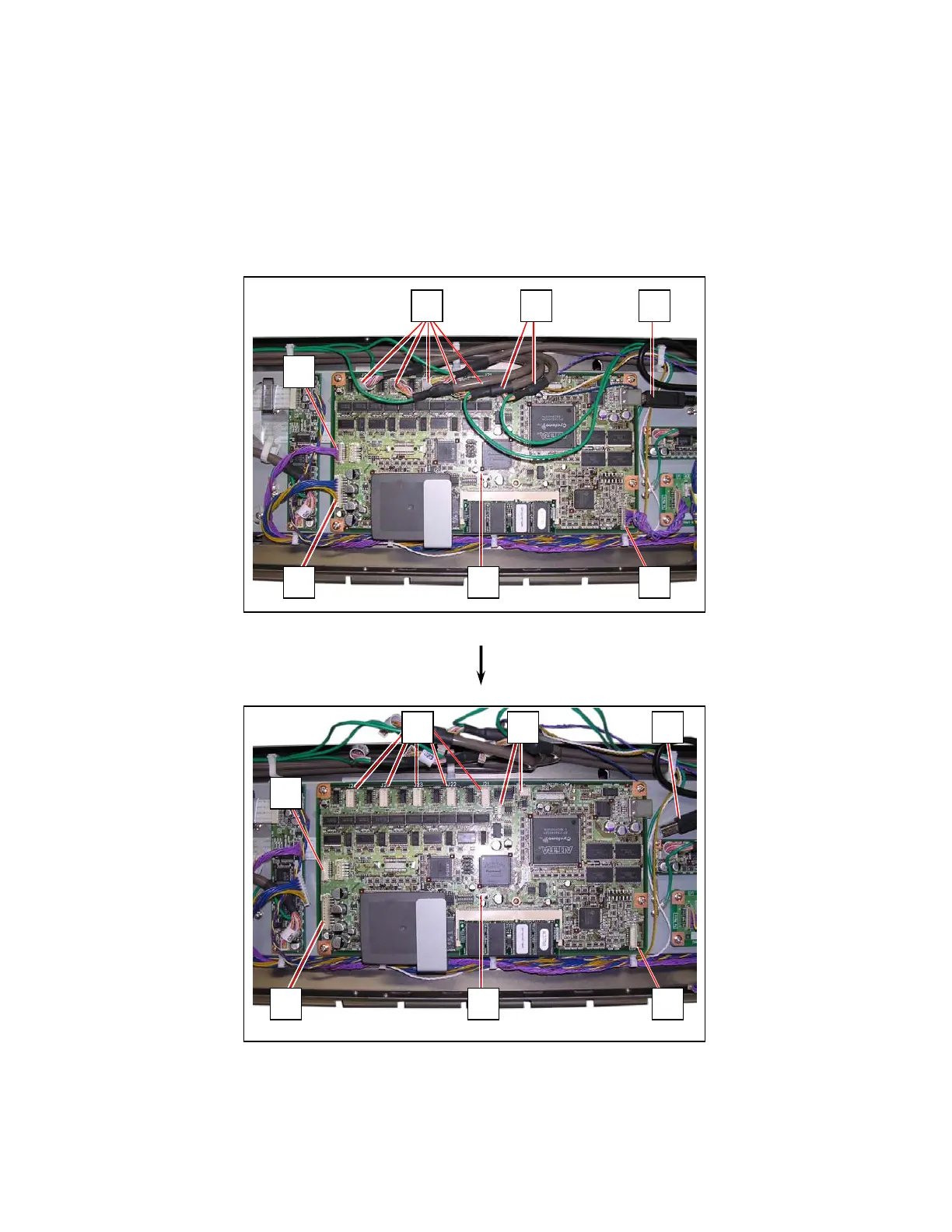

2. Disconnect harnesses (2) from Main PCB (1).
Disconnect USB cable (3).
