K110sm5e3.doc
5-22

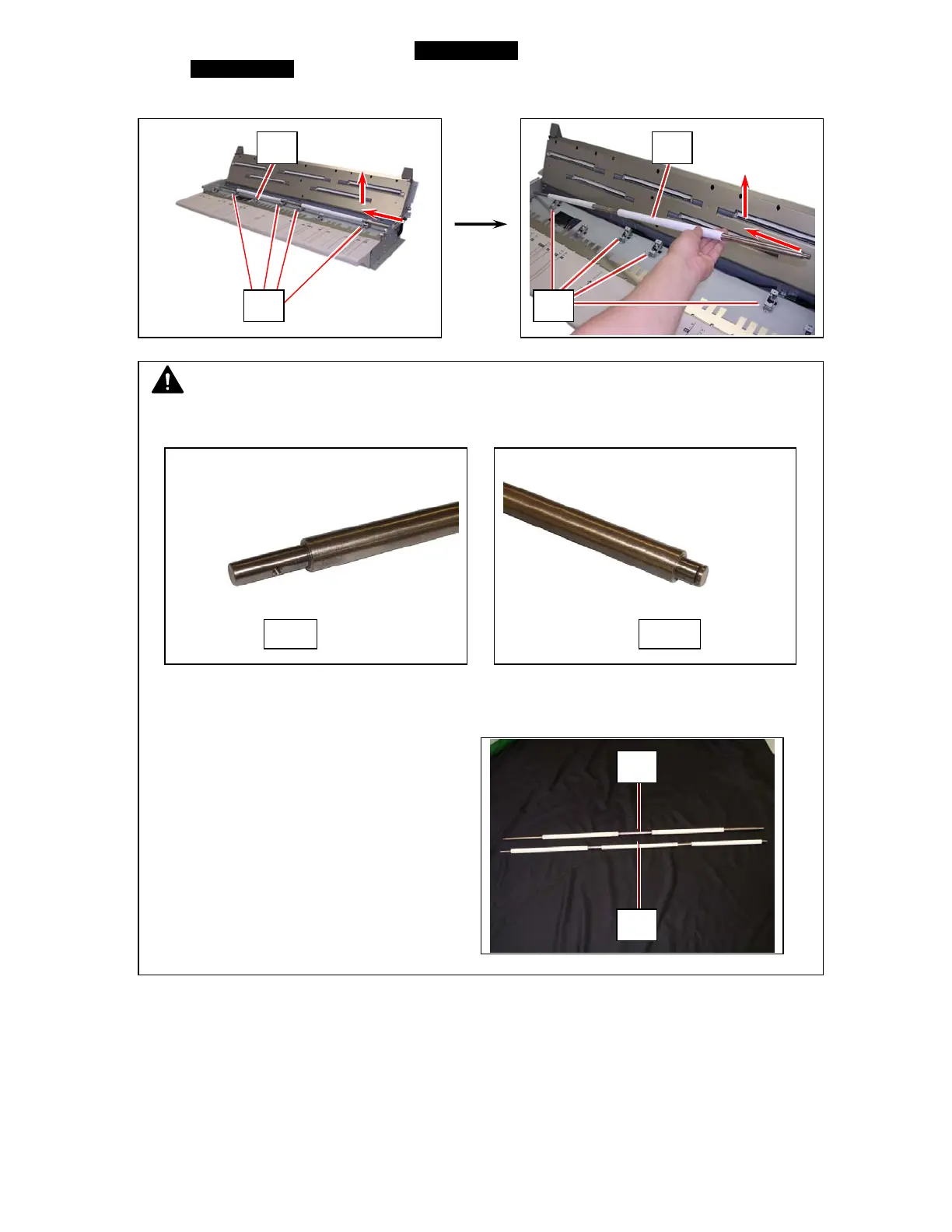

23. Press Brackets (39) down to release Drive Roller 2 (40).
Slide Drive Roller 2 (40) left and remove it.
Replace it with a new one.
NOTE
(1) The longer thin end of Drive Roller 2 should be placed at the left.
(2) Reinstall Drive Roller 1 (38) and Drive Roller 2 (40) in place correctly.
2 Rollers have different rubber belt pattern.
Left Ri
ht
39 39
40 40
40
38
To Next Page
