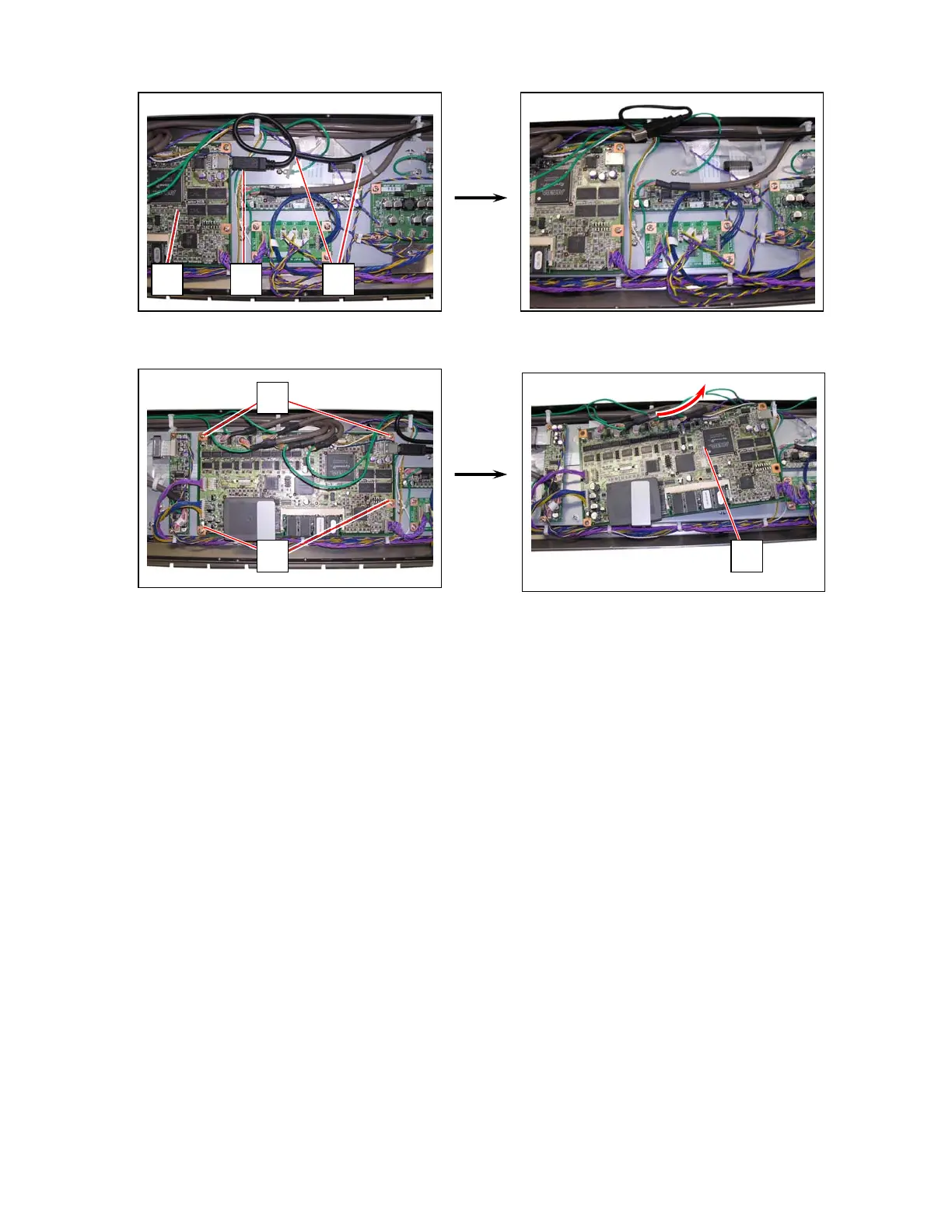

3. Loosen Nylon Bands (4) to release USB cable (5).
Disconnect USB cable (5) from Main PCB (6).
4. Remove 4 screws (7) to release Main PCB (6).
6 5 4
7
7 6
