5. 3. 4 Removing Base Plate
1. Remove Top Cover and Shield Cover N.
See [5.1.1 Removing Top Cover] and [5.1.2 Removing Shield Cover N].

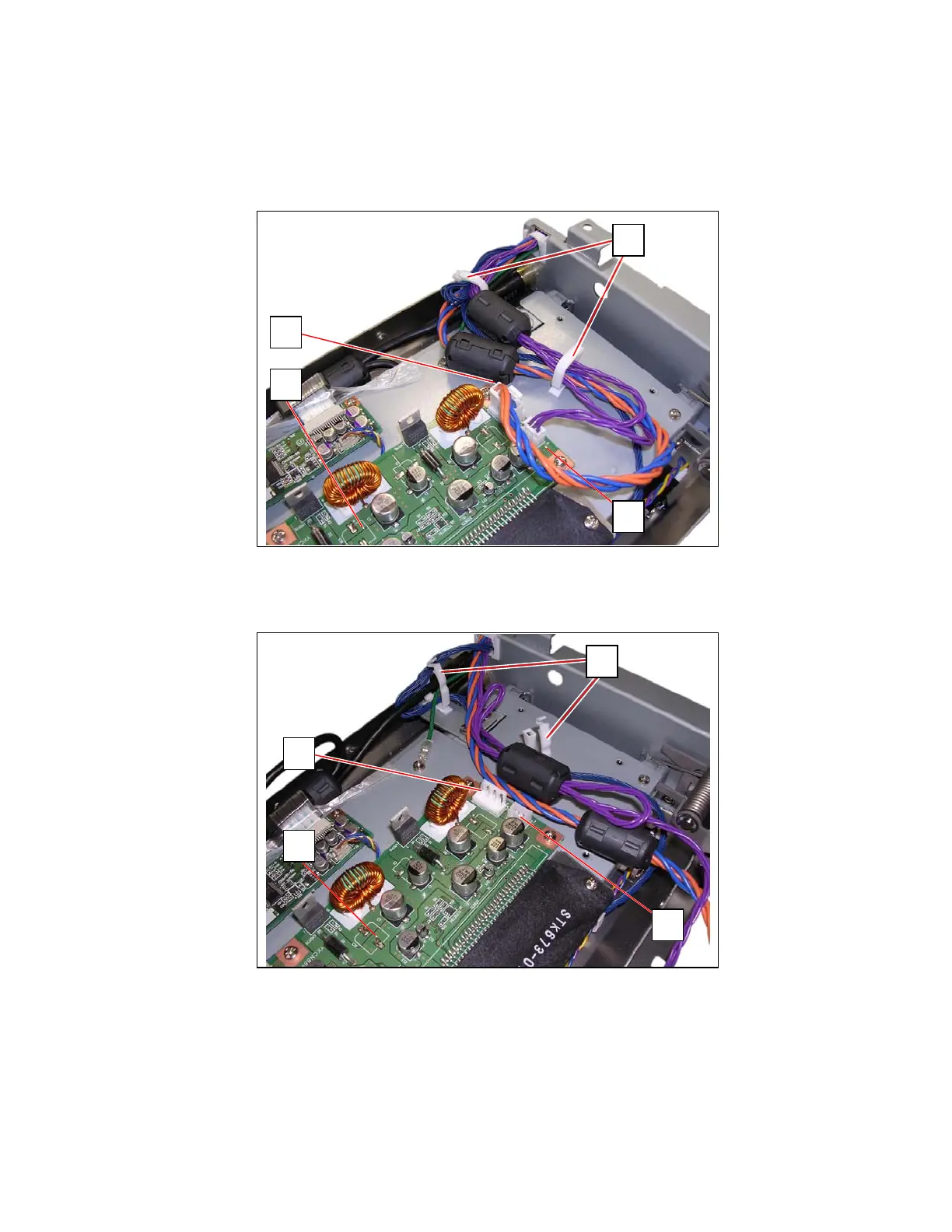

2. Disconnect harnesses (2) from Power Board (1).
Open Wire Saddles (3) to release cables.
