32
气缸盖罩

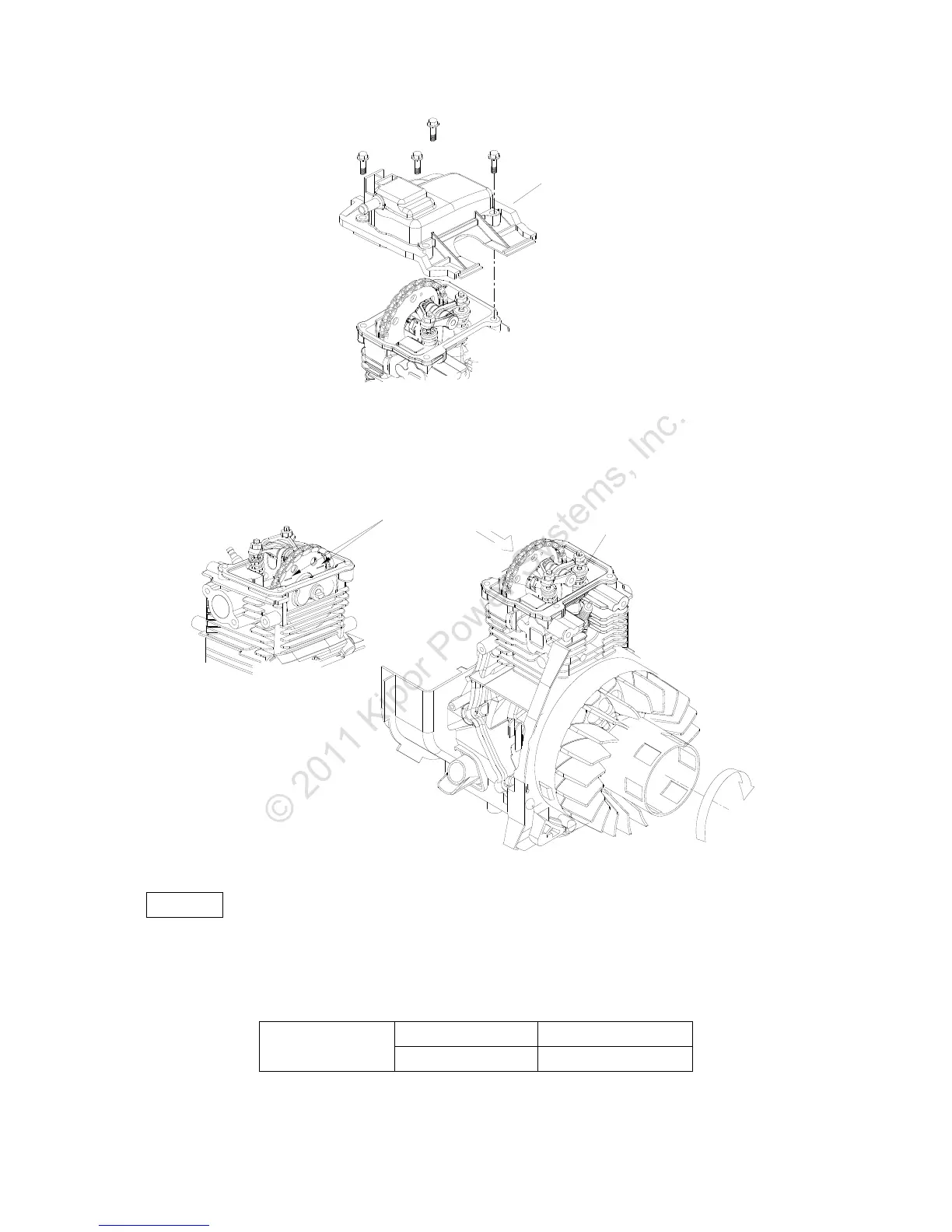

3) Turn the rotor to set the piston at top dead center of the compression stroke.
Timing line of camshaft driving chain should align with the cylinder head seal. Insure the intake
and exhaust valves are closed.
进气门
排气门
正时标记
旋转方向
Caution
■ If the intake valve is open, turn the rotor again to align the timing line with the cylinder head
seal and both the inlet and exhaust valves should be closed.
4) Insert a feeler gauge between the rocker arm and the valve and measure the valve clearance.
Valve clearance
IN 0.06mm
EX 0.08mm
Cylinder cover
Exhaust valve
Inlet valve
Revolve direction
Timing mark
