80

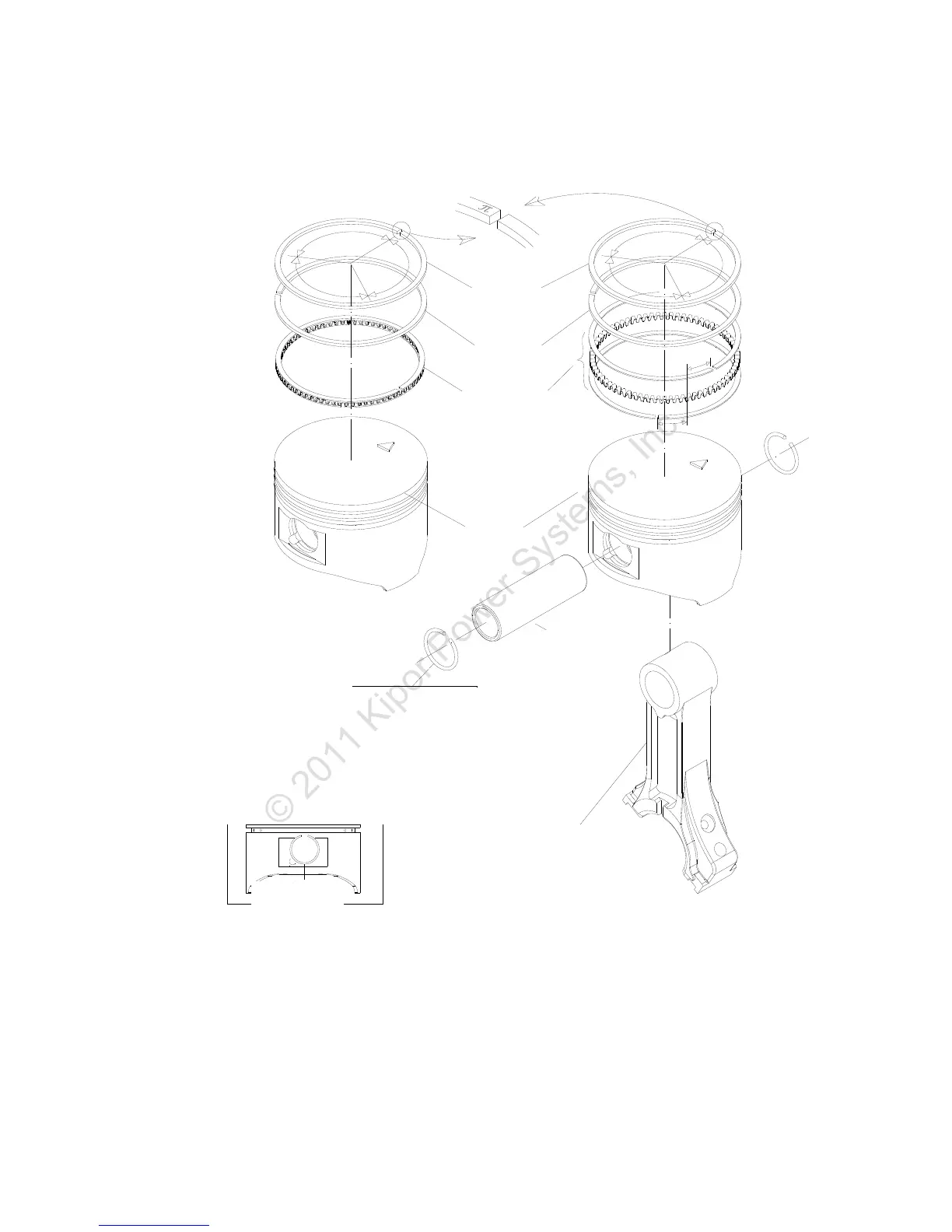

13.2 Piston/Connecting Rod
第一道环
第二道环
油环
活塞
活塞销
活塞销卡环
组装：
将前端置于活塞的槽处，用尖嘴钳夹
住另一端，边转动边安装到槽内。
不要使卡环的开口对着活塞销孔的缺
口处。
连杆
组装：
将大端部较长的一侧朝向活塞的
“ ”指向的右侧装入活塞
。
厂家标记
卡环
Label
1st ring
2nd ring
Oil ring
Piston
Piston pin
Installation: set the front end in the
piston groove, and clamp the other
end. Install the ring clip by revolving.
Pay attention that the opening should
not face the gap of piston pin hole
Piston pin clip
Connection rod
Installation: the connection
rod big end points to the right
side of piston △ label
Clip ring
