Kipor IG2000P - Housing Case Servicing

44

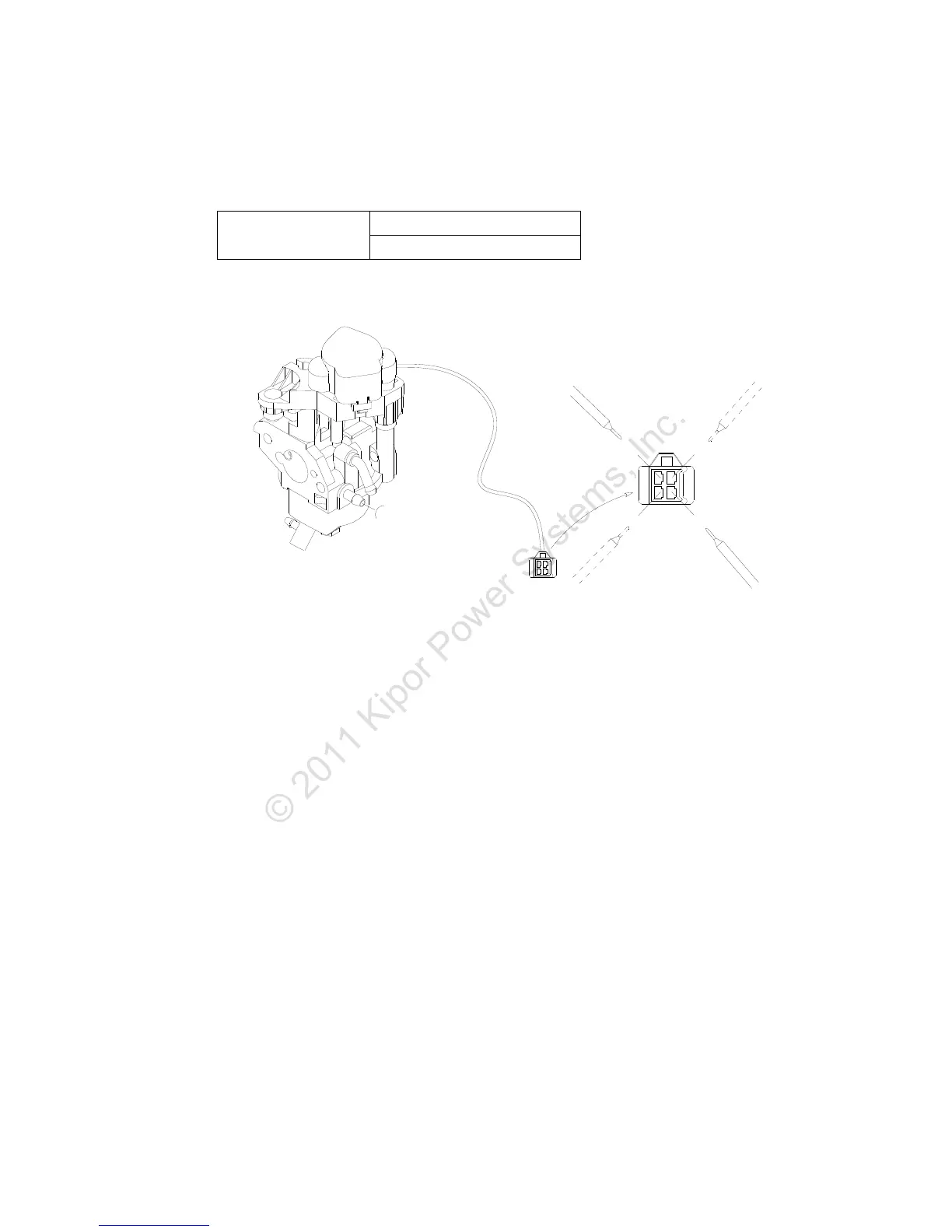

● Stepping motor
Measure the resistance of stepping motor connection to the inverter.
Standard resistance
Between 1and 3：45~55Ω
Between 2 and 4：45~55Ω
Replace the stepping motor if the resistance excesses the above range.
2
1
4
3
