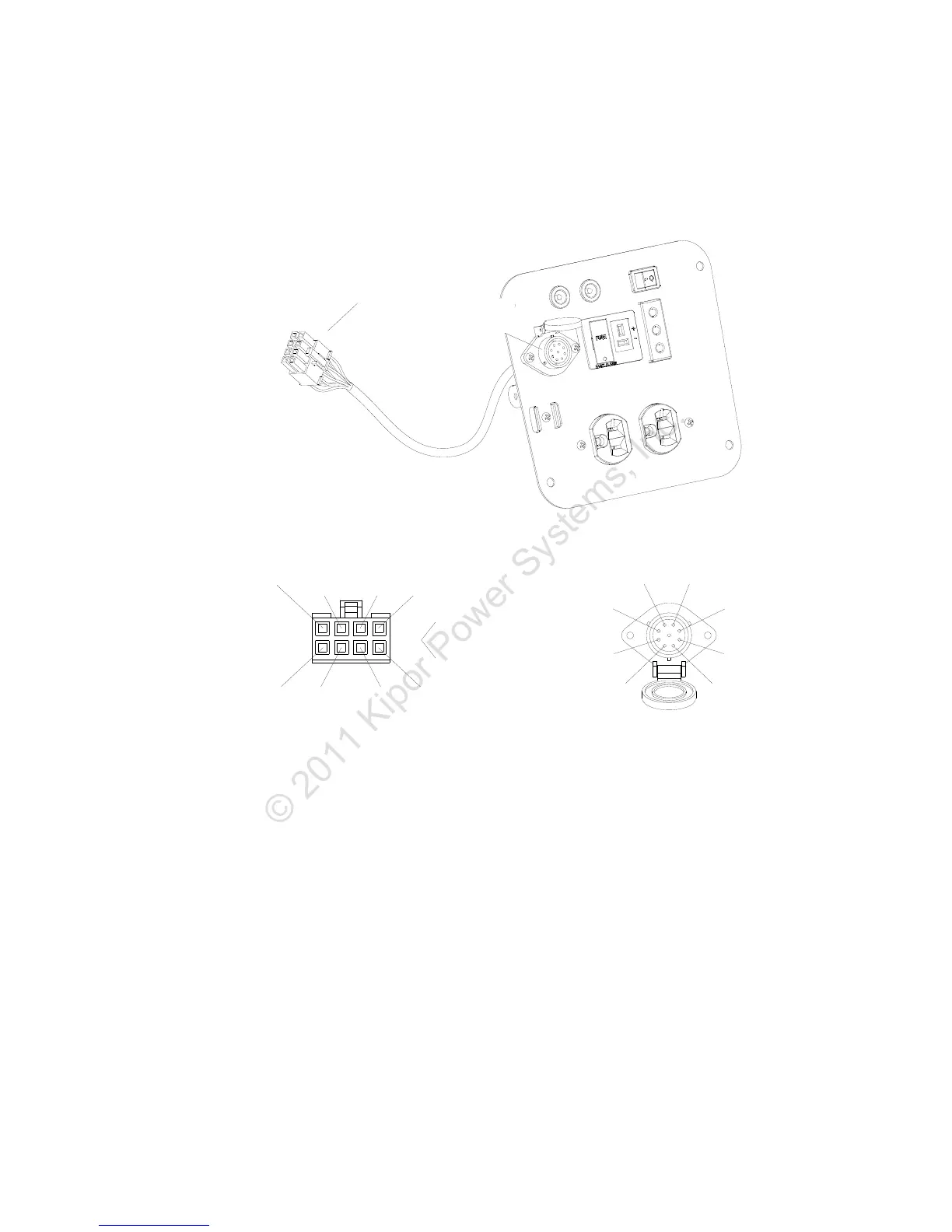

● Aero receptacle (parallel I/O communication port)
Check the continuity between connector and aero receptacle, there should be continuity between
the two terminals with the same serial number.
绿色
橙色
紫色
白色
黑色
红色
黄色
兰色
2
4
7
9
8
6
3
1
1
2
3
4
6
7
8
9
同序号相通
8P连接器
航空插座
航空插座
8P连接器
● Aero plug (Parallel I/O communication data wire)
Check the continuity of aero plugs, there should be continuity between two plugs with the same
serial numbers.
8P connector
Aero receptacle
Black
Red Yellow Blue
White Purple Orange Green
8P connector Aero receptacle
Conducted between
same series number
