55
●

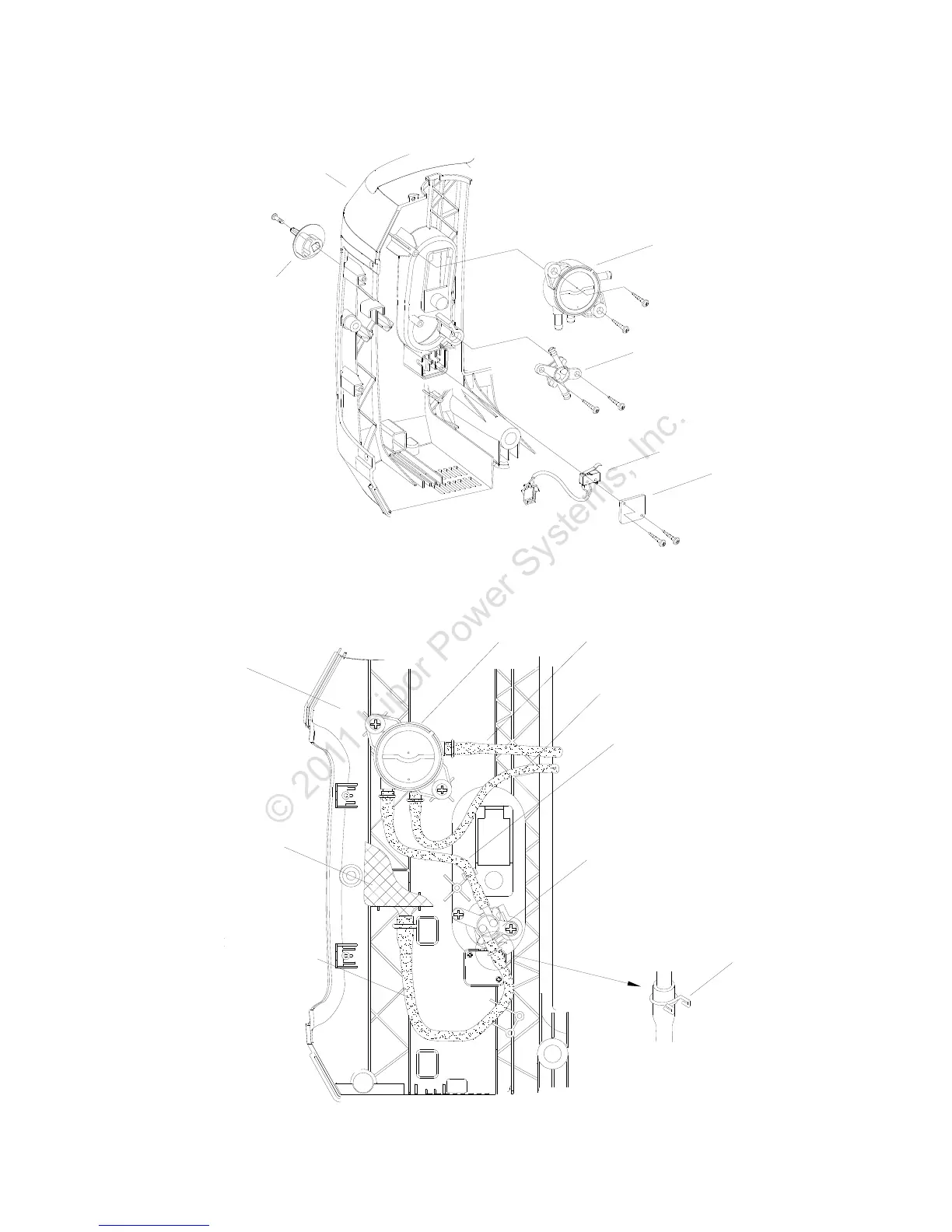

Left housing case
微动开关挡板
微动开关
油开关
燃油泵
左机壳
油开关手柄
负压管
油开关
燃油泵
左机壳
油箱
油管I
卡箍
油管
油
管
Left housing case
Fuel switch lever
Fuel pump
Fuel switch
Micro switch
baffle
Fuel pump
Fuel hose
Diaphragm tube
Fuel hose
fuel switch
Clamp
Left housing case
Fuel tank
Fuel hose
©
2011
Kipor
Power
Systems,
Inc.
55
57
